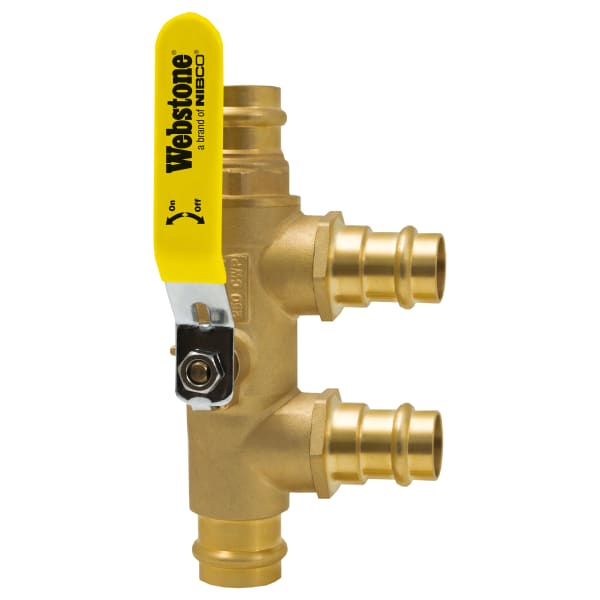

The 1" Press Primary Secondary Loop Purge Tee with Full Port Ball Valves by Webstone is part of our specialty ball valves selection.
-
Brand: Webstone
-
Manufacturer Part #: H-88644
-
UPC: 018394013070
-
Category: Specialty Ball Valves
Features
- Pro-Pal primary/secondary loop purge tee, 1" x 1" press x press connections (Webstone Pro-Connect press)
- Places a full port ball valve between two closely spaced tees on the primary loop, with the tee spacing set at the factory for hydraulic separation
- Closing the ball valve forces flow through the secondary loop for power purging air at system startup
- Replaces 5 separate components and eliminates 4 leak paths compared with field-built closely spaced tees
- Forged brass body, HCP brass ball, PTFE seats and stem seal; blowout-proof stem with adjustable packing gland
- Reversible handle (steel with vinyl jacket)
- Rated 250 psi CWP, 250°F max
- End-to-end length approx. 7.28 in; top of valve to pipe centerline approx. 2.60 in (per Webstone spec sheet)
- Not lead free (carries a California Prop 65 lead warning): for hydronic heating and other non-potable water use
