Mueller Streamline CP02722G 1/2" Carbon Steel Press Fittings - Gas - 90 Degree Elbow P x P

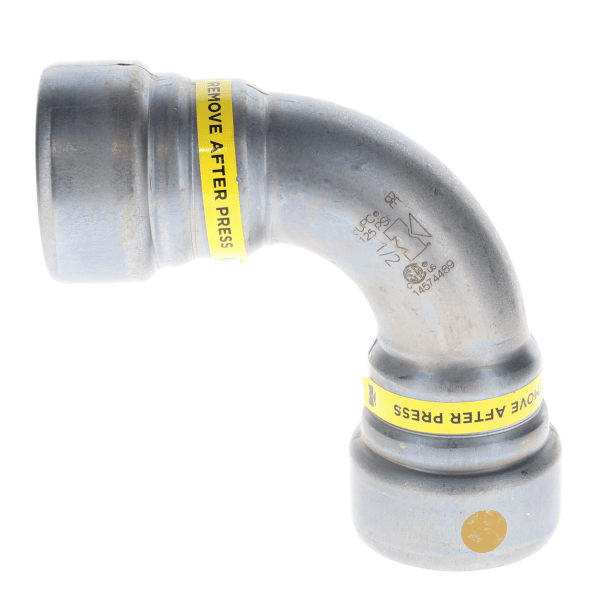

Mueller Streamline CP02722G is a 1/2" 90 degree elbow in carbon steel for fuel gas, P x P (P = press socket).

A 90° elbow turns the line a quarter turn.

Streamline STL-G carbon steel press fittings are the gas version of the line: a yellow HNBR sealing element and a stainless steel grip ring, certified to ANSI/CSA LC4a for fuel gas at up to 125 psi. They press onto Schedule 10 to 40 carbon steel pipe with a press tool and carbon steel jaw, which avoids threading or welding on site.

Specifications

• Brand: Mueller Streamline
• Manufacturer Part #: CP02722G
• Size: 1/2"
• Type: 90 Degree Elbow
• Connections: P x P
• Material: Carbon steel, HNBR sealing element, stainless grip ring
• Standard: ANSI/CSA LC4a / CSA 6.32a
• Operating pressure: 125 psi max on fuel gas
• Temperature: -40°F to 180°F
• Pipe: Schedule 10 to Schedule 40 carbon steel
• UPC: 685768446842
• Category: Press Fittings - Gas
