1/2" - FIP x FIP - Bronze Check Valve - 125 SWP - 200 WOG, Horizonatal Swing, Bronze Seat, TFE Disc
Milwaukee Valve

Milwaukee Valve 509T-12 1/2" - FIP x FIP - Bronze Check Valve - 125 SWP - 200 WOG, Horizonatal Swing, Bronze Seat, TFE Disc

Item #
MLWV-509T-12
Mfr. part #
509T-12
UPC
697988281011

Key specifications
  • MaterialBronze
  • Valve TypeCheck Valve
  • End ConnectionThreaded
  • ANSI/Pressure Rati125 SWP – 200 WOG
  • Body StyleHorizontal Swing
View all specifications
$113.29
Each
In stock – 4 available
Estimated delivery: –

Usually ships in 1–2 business days.

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 0.76 lb
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandMilwaukee Valve
Manufacturer part #509T-12
Valve TypeCheck Valve
Product Size1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
End ConnectionThreaded
ANSI/Pressure Rating125 SWP – 200 WOG
MaterialBronze
Body StyleHorizontal Swing
Disc MaterialTFE
Seat MaterialBronze
UPC697988281011

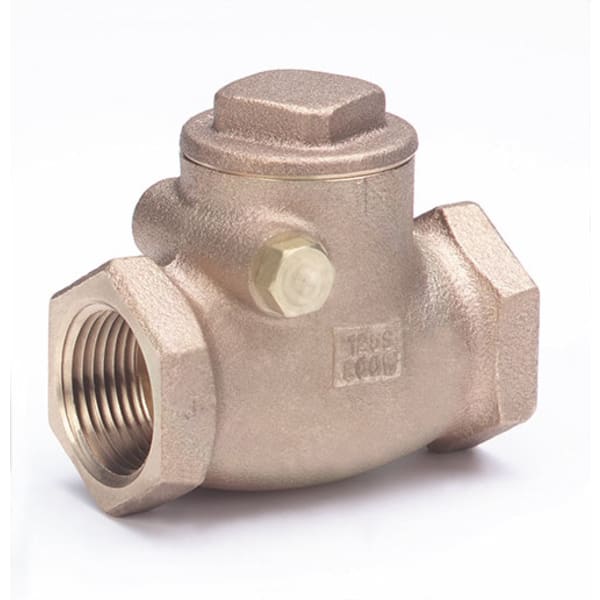

Milwaukee Valve 509T-12 is a 1/2" bronze horizontal swing check valve with female threaded ends.

This swing check valve lets flow pass in one direction and closes by gravity and back pressure to prevent reverse flow. It is intended for horizontal installation; install with the flow arrow pointing downstream.

When selecting this valve, match the 1/2" nominal size, the end connection type and the pressure rating for your system, and confirm the seat and trim materials suit the fluid and temperature. It is part of the Milwaukee Valve line for plumbing and HVAC.

Specifications

  • Brand: Milwaukee Valve
  • Manufacturer Part #: 509T-12
  • Size: 1/2"
  • Connection: Female threaded (FIP) x female threaded (FIP)
  • Body Material: Bronze
  • Steam Working Pressure: 125 SWP
  • Water/Oil/Gas Rating: 200 WOG
  • Check Style: Horizontal swing
  • Seat: Bronze
  • Disc: TFE
  • UPC: 697988281011
  • Category: Check Valves

See also: Milwaukee Valve, Check Valves, Valves.

Spec Sheet (PDF)Technical Service Information (PDF)

Questions about fit or compatibility? Ask our team. We usually reply within one business day.

$113.29
In stock
