2" - FIP x FIP - Bronze Check Valve - 150 SWP - 300 WOG, Horizonatal Swing, Bronze Seat, TFE Disc

Roll over image to zoom in Click on image to zoom

Milwaukee Valve 510T-200 2" - FIP x FIP - Bronze Check Valve - 150 SWP - 300 WOG, Horizonatal Swing, Bronze Seat, TFE Disc

Name: Milwaukee Valve 510T-200 2" - FIP x FIP - Bronze Check Valve - 150 SWP - 300 WOG, Horizonatal Swing, Bronze Seat, TFE Disc
Brand: Milwaukee Valve
SKU: MLWV-510T-200
Price: 754.72 USD
Availability: InStock

Milwaukee ValveSKU: MLWV-510T-200

Price:

$754.72

Stock:

Only 2 units left

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Not lead-free. Not for use in potable (drinking) water systems.

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Valve Type	Check Valve
Product Size	1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
End Connection	Threaded
ANSI/Pressure Rating	150 SWP – 300 WOG
Material	Bronze
Body Style	Horizontal Swing
Disc Material	TFE
Seat Material	Bronze

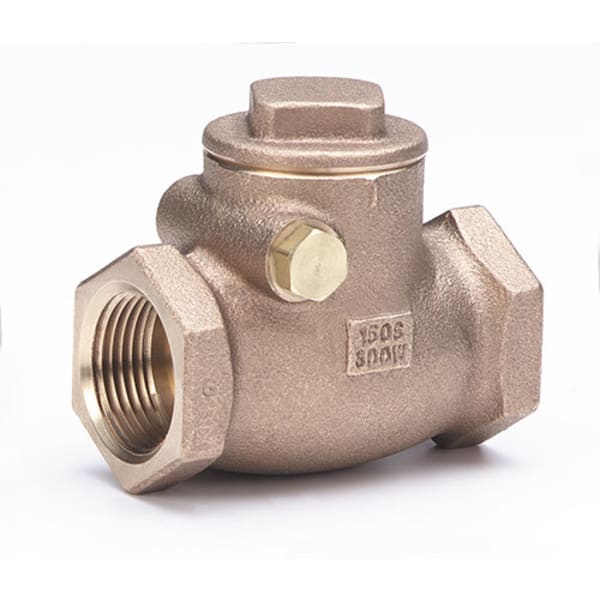

Milwaukee Valve 510T-200 is a 2" bronze horizontal swing check valve with female threaded ends.

This swing check valve lets flow pass in one direction and closes by gravity and back pressure to prevent reverse flow. It is intended for horizontal installation; install with the flow arrow pointing downstream.

When selecting this valve, match the 2" nominal size, the end connection type and the pressure rating for your system, and confirm the seat and trim materials suit the fluid and temperature. It is part of the Milwaukee Valve line for plumbing and HVAC.
