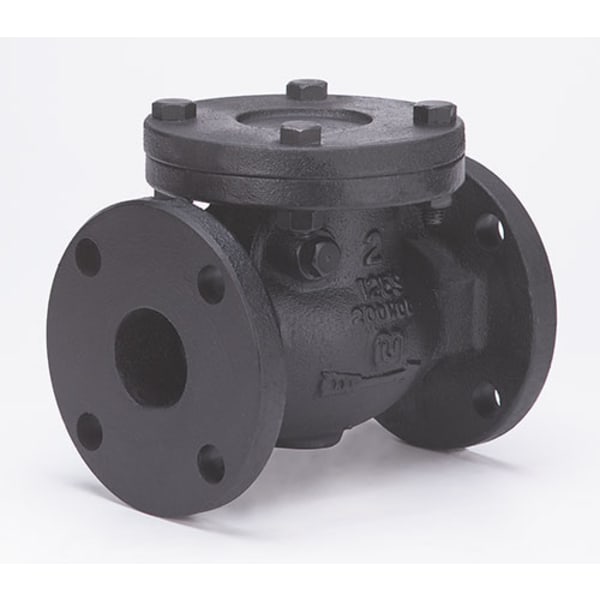

Milwaukee Valve 2974-M-212 is a 2-1/2" cast iron horizontal swing check valve with flanged ends.
This swing check valve lets flow pass in one direction and closes by gravity and back pressure to prevent reverse flow. It is intended for horizontal installation; install with the flow arrow pointing downstream.
When selecting this valve, match the 2-1/2" nominal size, the end connection type and the pressure rating for your system, and confirm the seat and trim materials suit the fluid and temperature. It is part of the Milwaukee Valve line for plumbing and HVAC.
Specifications
-
Brand: Milwaukee Valve
-
Manufacturer Part #: 2974-M-212
-
Size: 2-1/2"
-
Connection: Flanged x flanged
-
Body Material: Cast iron
-
Steam Working Pressure: 125 SWP
-
Water/Oil/Gas Rating: 200 WOG
-
Check Style: Horizontal swing
-
Seat: Bronze
-
UPC: 697988250963
-
Category: Check Valves
