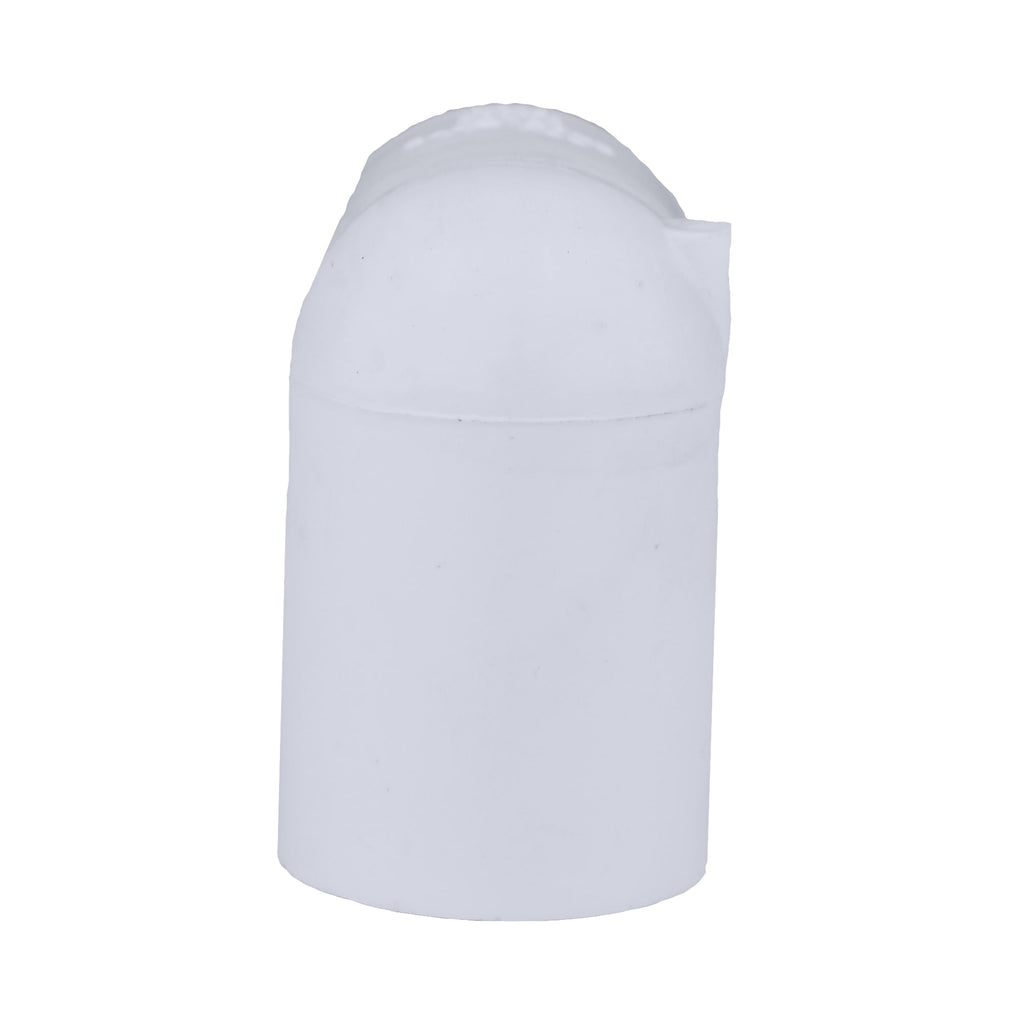

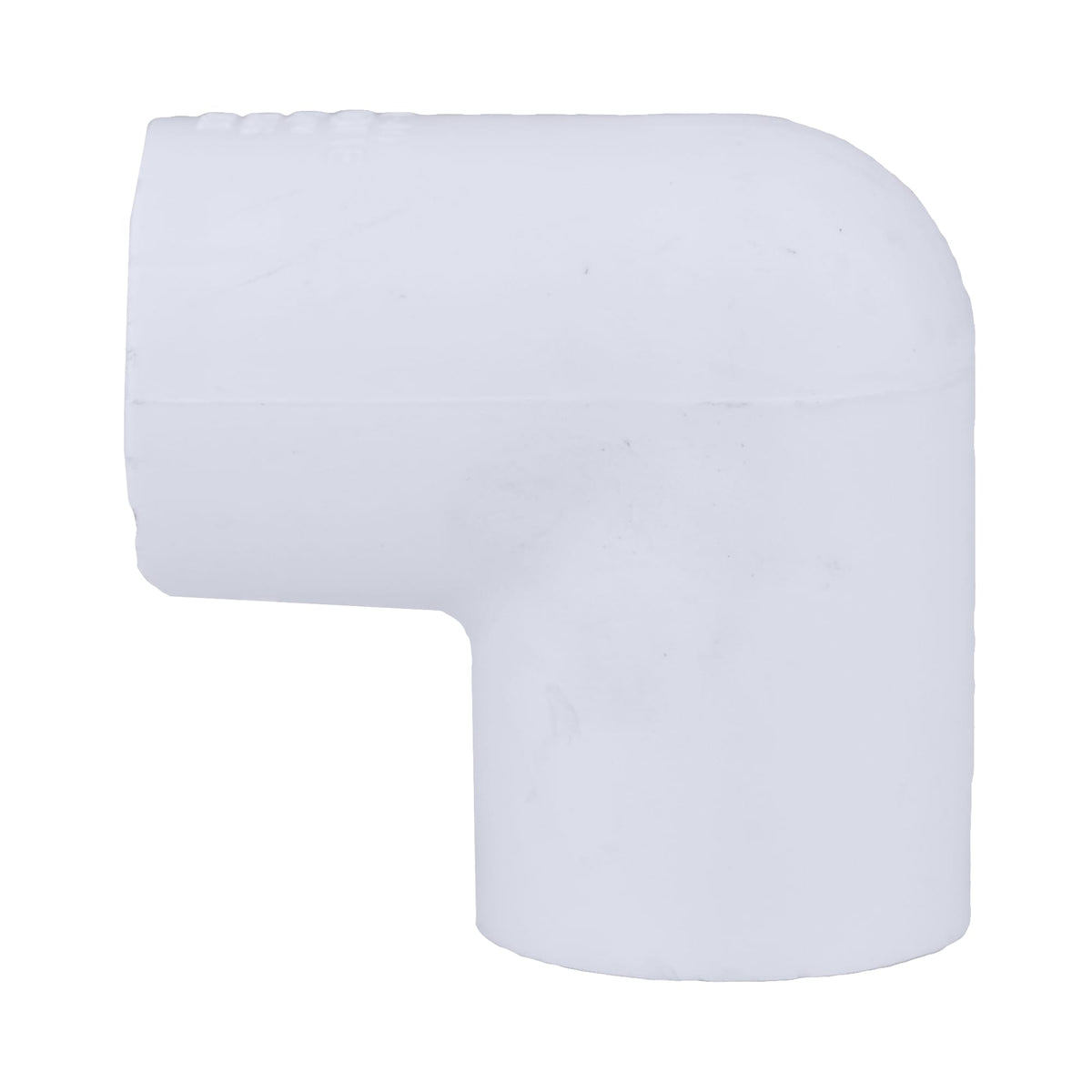

Charlotte Pipe PVC-02301-0600 1/2" PVC SCH40 90° Elbow - Socket x FPT

Charlotte Pipe PVC-02301-0600 is a 1/2" PVC Schedule 40 90° elbow, Socket x FPT (Socket = socket (takes the pipe); FPT = female pipe thread).

A 90° elbow turns the line a quarter turn.

Charlotte Schedule 40 pressure fittings are made to ASTM D2466 and certified to NSF 61, for pressure piping where the fluid stays at or below 140°F: water service, irrigation, pools and process water. They join Schedule 40 or Schedule 80 PVC pipe (same outside diameter) with primer and PVC solvent cement. PVC loses pressure capacity as temperature rises, so size the system to the working temperature.

Specifications

• Brand: Charlotte Pipe
• Manufacturer Part #: PVC-02301-0600
• System: PVC Schedule 40
• Size: 1/2"
• Type: 90° Elbow
• Connections: Socket x FPT
• Material: PVC Type I (cell class 12454), Schedule 40
• Standards: ASTM D2466, NSF 61
• Temperature: 140°F max
• Joining: Primer and PVC solvent cement
• UPC: 611942038718
• Category: PVC SCH 40 Fittings
