1/2" x 8" x 12" PEX F1870 Double Stub Out Elbow
Sioux Chief

Sioux Chief 630XD288 1/2" x 7" x 8" x 8" PEX F1807 Double Stub Out Elbow

Item #
SIOU-630XD288
Mfr. part #
630XD288
UPC
739236487117

Key specifications
  • TypeStub Out Elbows
  • Size1/2" x 8" x 12"
  • ConnectionF1807 (Crimp)
  • MaterialCopper
View all specifications
$26.51
Each
In stock
Estimated delivery: –

Usually ships in 1–2 business days.

  • Ships from Seattle, WA
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 0.55 lb
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandSioux Chief
Manufacturer part #630XD288
Connection TypeF1807 (Crimp)
MaterialCopper
Size1/2" x 8" x 12"
TypeStub Out Elbows
UPC739236487117

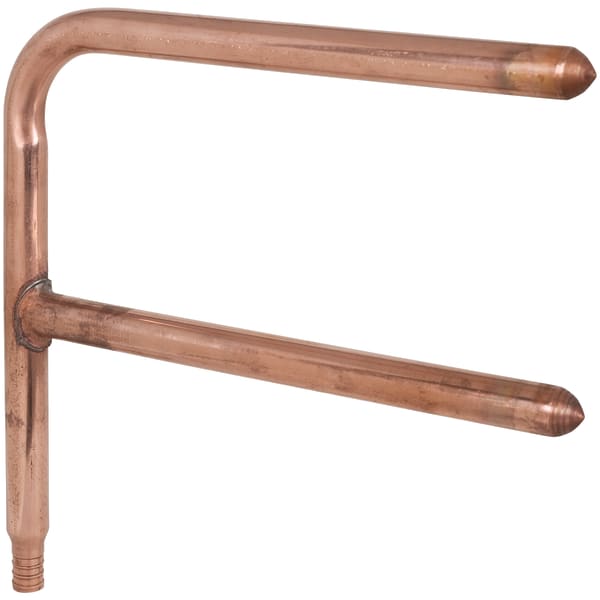

Sioux Chief 630XD288 is a 1/2" PEX F1807 double stub out elbow made from Type L copper tube.

A stub out brings a rigid copper outlet through the wall or floor at a fixture while the run stays PEX. The closed copper end is cut open at trim-out and accepts sweat, push-fit or compression stops.

The brazed saddle joint gives two outlets from one fitting, suited to kitchens (cold: sink and ice maker, hot: sink and dishwasher). F1807 joints are made on SDR9 PEX tube with a copper crimp ring or a stainless V-Sleeve compression sleeve and the matching crimp or compression tool.

Specifications

  • Brand: Sioux Chief
  • Manufacturer Part #: 630XD288
  • Connections: 1/2" F1807 x 1/2" closed copper end
  • Material: Type L copper tube
  • Height: 7"
  • Length: 8"
  • Square strap: No
  • Standards: ASTM F1807, CSA B137.5, NSF/ANSI 14, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61
  • UPC: 739236487117
  • Category: Stub Outs
  • Shipping Weight: 0.553 lb

See also: stub outs, F1807 crimp fittings, all Sioux Chief.

Specification Sheet (PDF)Installation Instructions (PDF)
