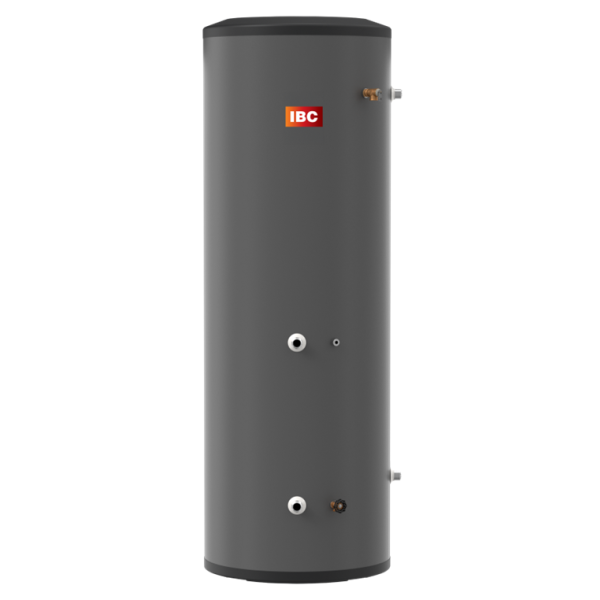

119 Gallon 444 SS Indirect Water Heater with Aquastat with 1-1/2" inlets

Roll over image to zoom in Click on image to zoom

IBC 119 Gallon 444 SS Indirect Water Heater with Aquastat with 1-1/2" Inlets

Name: IBC 119 Gallon 444 SS Indirect Water Heater with Aquastat with 1-1/2" Inlets
Brand: IBC
SKU: IBCT-DTI-119-MAX
Price: 5066.65 USD
Availability: InStock

IBCSKU: IBCT-DTI-119-MAX

Price:

$5,066.65

Stock:

Only 7 units left

Quantity:

Ships by freight truck (LTL). Processed in 1–2 business days; the carrier may contact you to schedule delivery. Contiguous U.S. only.

Pricing a job? Get a written quote →Open a trade account

Questions? Call (404) 678-9908 or chat with us.

Ships from Seattle, WA · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 178.0 lb

BTU Input Maximum	343,000
Capacity	100 - 250 Gallons
Cold & Hot Connections	1 1/2"
First Hour Rating	625
Tank Connections	1 1/2"
Tank Material	Stainless Steel
Tank Size	119

The IBC DTI 119-Max is an InterStor indirect-fired water heater with a stainless steel tank and a stainless steel heating coil. It is heated by a boiler: hot boiler water runs through the internal coil and heats the domestic water stored in the tank. IBC designs the DTI series to pair with its condensing boilers, and it can be integrated with an existing boiler system.

Key features

Stainless steel tank, pickled and passivated, with stainless steel water connections
High-capacity smooth-wall stainless steel heating coil
2" of polystyrene foam insulation for low standby heat loss
Side domestic water connections and side boiler connections
Thermal well with a standard 10kΩ temperature sensor; aquastat, T&P relief valve and drain valve are standard on USA units
Removable inspection port for access to the coil and tank

Specifications

Brand: IBC
Model: DTI 119-Max (DTI-119-MAX)
Type: Indirect-fired water heater (boiler-heated)
Gross DHW volume: 115 US gal
Net DHW volume: 110 US gal
Domestic water connections: 1-1/2" male
Boiler connections: 1-1/2" male
Diameter x height: 28.9 in. x 65.8 in.
Weight: 166 lb empty; 178 lb shipping (IBC data)
Max. operating pressure: 150 psi
Max. DHW temperature: 180°F (82°C)
Heating coil surface area: 27.6 sq ft
First hour delivery*: 625 US gal/hr
Continuous draw*: 537 US gal/hr
Boiler output required*: 343,000 BTU/hr
Heating coil flow rate*: 25 GPM
Coil pressure drop*: 28.0 ft of head
Certifications (per IBC): CSA/ANSI Z21.10.3, CSA 4.3; NSF/ANSI 372 (low lead)
Manufacturer's warranty (IBC): 1-year limited parts; lifetime limited tank and coil for residential use; 7-year limited tank and coil for commercial use

*IBC ratings are based on 180°F boiler supply, 135°F domestic hot water and 58°F entering cold water.

Boiler piping, the T&P relief valve discharge and domestic water connections must be installed by a qualified installer following IBC's installation manual and local codes.
