39.9 Gallon 444 SS Indirect Water Heater with Aquastat

Roll over image to zoom in Click on image to zoom

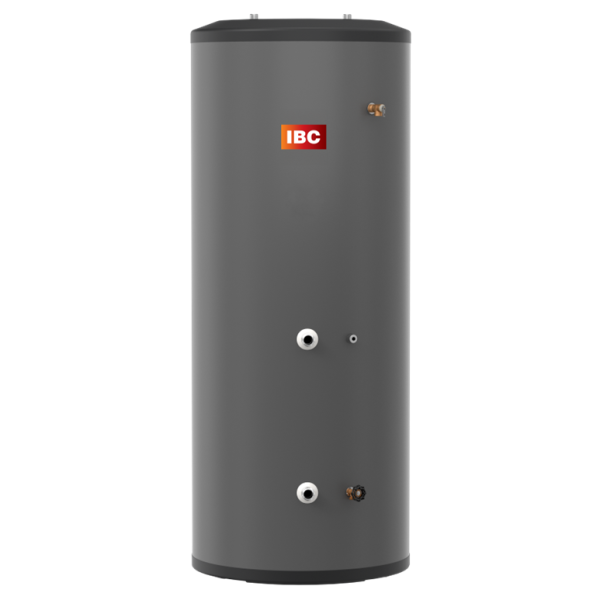

IBC DTI-40 39.9 Gallon 444 SS Indirect Water Heater with Aquastat

Name: IBC DTI-40 39.9 Gallon 444 SS Indirect Water Heater with Aquastat
Brand: IBC
SKU: IBCT-DTI-40
Price: 1856.89 USD
Availability: InStock

IBCSKU: IBCT-DTI-40

Price:

$1,856.89

Stock:

Only 1 unit left

Quantity:

Ships UPS Ground for a flat $119 (continental US).
Flat rate by order weight: $119 under 70 lb · $149 for 70–100 lb · $189 for 100–150 lb.

Usually ships in 1–2 business days.

Pricing a job? Get a written quote →Open a trade account

Questions? Call (404) 678-9908 or chat with us.

Ships from Seattle, WA · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 66.0 lb

Capacity	30 - 60 Gallons
Cold & Hot Connections	3/4"
First Hour Rating	185
Tank Connections	1"
Tank Material	Stainless Steel
Tank Size	40

The IBC DTI 40 is an InterStor indirect-fired water heater with a stainless steel tank and a stainless steel heating coil. It is heated by a boiler: hot boiler water runs through the internal coil and heats the domestic water stored in the tank. IBC designs the DTI series to pair with its condensing boilers, and it can be integrated with an existing boiler system.

Key features

Stainless steel tank, pickled and passivated, with stainless steel water connections
High-capacity smooth-wall stainless steel heating coil
2" of polystyrene foam insulation for low standby heat loss
Top domestic water connections and side boiler connections
Thermal well with a standard 10kΩ temperature sensor; aquastat, T&P relief valve and drain valve are standard on USA units
Removable inspection port for access to the coil and tank

Specifications

Brand: IBC
Model: DTI 40 (DTI-40)
Type: Indirect-fired water heater (boiler-heated)
Gross DHW volume: 40.1 US gal
Net DHW volume: 38.9 US gal
Domestic water connections: 3/4" male
Boiler connections: 1" male
Diameter x height: 21.8 in. x 46.9 in.
Weight: 58 lb empty; 66 lb shipping (IBC data)
Max. operating pressure: 150 psi
Max. DHW temperature: 180°F (82°C)
Heating coil surface area: 8.0 sq ft
First hour delivery*: 185 US gal/hr
Continuous draw*: 154 US gal/hr
Boiler output required*: 98,000 BTU/hr
Heating coil flow rate*: 8 GPM
Coil pressure drop*: 2.5 ft of head
Certifications (per IBC): CSA/ANSI Z21.10.3, CSA 4.3; NSF/ANSI 372 (low lead)
Manufacturer's warranty (IBC): 1-year limited parts; lifetime limited tank and coil for residential use; 7-year limited tank and coil for commercial use

*IBC ratings are based on 180°F boiler supply, 135°F domestic hot water and 58°F entering cold water.

Boiler piping, the T&P relief valve discharge and domestic water connections must be installed by a qualified installer following IBC's installation manual and local codes.
