| Size | 14 in. x 10 in. |
| Voltage | 24V |
| Blade Action | Parallel |
| Shape | Rectangular |
| Application | Parallel Blade Damper |
| Used With | Honeywell zoning systems |
| Motor or Actuator Mounting | Side |
| Motor | power closed, spring open |
| Motor Timing | 30 seconds power open/10 seconds spring return |
| Wires to Motor | Terminals: M1-Power; M6 Common; M4 (optional)-LED indication |
| Other Motor Information | Simplified range stops |
Description

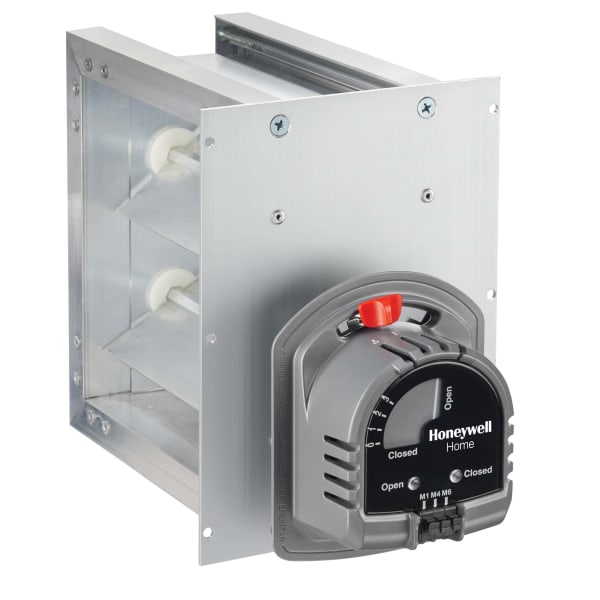

The Resideo ZD14X10TZ/U is a 14 in. x 10 in. motorized zone damper for forced-air systems. It installs in the branch duct serving one zone and opens or closes that branch on a call from the zone panel, so a single furnace or air handler can hold different temperatures in different parts of a building.
Power close, spring open. The 24 Vac motor drives the blades closed when it is energized, and a spring returns them open when power is removed. That makes the ZD fail-safe normally open: if the panel loses power or a wire opens, the branch stays open and the zone keeps getting air instead of being shut off. The ZD cannot be field-converted to power open — for fresh-air applications the round EARD is the power-open part, and the round ARD converts with an M847D-VENT actuator.
Sizing and orientation. Order by the duct opening, not by the room. This is the 14 in. x 10 in. size, and the actuator mounts on the 10 in. side, because Resideo always puts it on the second dimension — a ZD10X14TZ is the same opening with the motor on the 14 in. side. Every ZD is built 5/32 in. under its listed size so it drops into nominal duct, and all ZD models are 4 in. thick. The damper can be installed in any orientation, with the mounting side on the bottom or the side of the duct.
Electrical and performance. 24 Vac, 60 Hz, 8 VA. Two-wire hookup on push terminals; solid wire is recommended rather than stranded. A third wire, option M4, drives an LED open light. Nominal rotation is 90 degrees with a minimum 71 in.-oz. (500 mN·m) output torque. At 77 °F the motor drives closed in about 30 seconds and the spring return takes about 10 seconds. Ambient rating is 40 to 140 °F. Leakage is under 1% at 1/2 in. wc, maximum static pressure is 1 in. wc, and pressure drop wide open is 0.0329 in. wc at 800 ft/min.
Build. Extruded aluminum frame and blades, all-metal drive train gears and high-temperature outer plastic, with a taping flange and a non-interfering set screw. The parallel blade geometry is what keeps leakage low. A front-facing display with an LED shows open and closed at a glance, and adjustable closed-position range stops let you leave a minimum bleed through the branch instead of shutting it dead.
Replacement actuator: M847D-ZONE. Works with TrueZONE panels and other 24 Vac electronic zoning systems.
- Brand: Resideo
- Manufacturer Part #: ZD14X10TZ/U
- Category: Zone Dampers
