2-1/2" Copper Press Fittings - 45 Degree Elbow P x P
Mueller Streamline

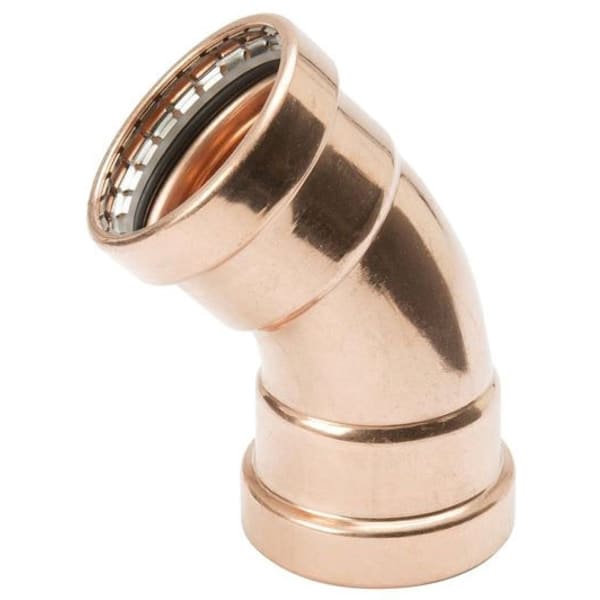

Mueller Streamline PF 03063 2-1/2" Copper Press Fittings - 45 Degree Elbow P x P

Item #
CPPF-250-45EL
Mfr. part #
PF 03063
UPC
685768399230

Key specifications
  • Type5 - Elbow - 45°
  • Size2-1/2"
  • ConnectionPress
View all specifications
$148.00
Each
In stock
Estimated delivery: –

Usually ships in 1–2 business days.

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 1.9 lb
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandMueller Streamline
Manufacturer part #PF 03063
Connection TypePress
Size2-1/2"
Type5 - Elbow - 45°
UPC685768399230

Mueller Streamline PF 03063 is a 2-1/2" 45 degree elbow for copper tube, P x P (P = press socket).

A 45° elbow makes a gentle change of direction; two of them offset a line around an obstacle.

Streamline PRS copper press fittings make a permanent joint with a press tool and the matching copper jaw, with no flame and no solder. They are listed to ASME B16.51 and certified to NSF/ANSI 61 and 372 for drinking water, and are used on potable water, hydronic heating with glycol, chilled water and compressed air. The tube has to be cut square, deburred and fully inserted to the depth mark before pressing.

Specifications

  • Brand: Mueller Streamline
  • Manufacturer Part #: PF 03063
  • Size: 2-1/2"
  • Type: 45 Degree Elbow
  • Connections: P x P
  • Material: Copper, EPDM sealing element
  • Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61 and 372
  • Temperature: -20°F to 250°F
  • Tube: ASTM B88 Type K, L or M copper
  • UPC: 685768399230
  • Shipping Weight: 1.74 lb
  • Category: Press Fittings - Copper (CTS)

See also: all press fittings - copper (cts), press tools and jaws, tube cutters, all Mueller Streamline.

Questions about fit or compatibility? Ask our team. We usually reply within one business day.

$148.00
In stock
