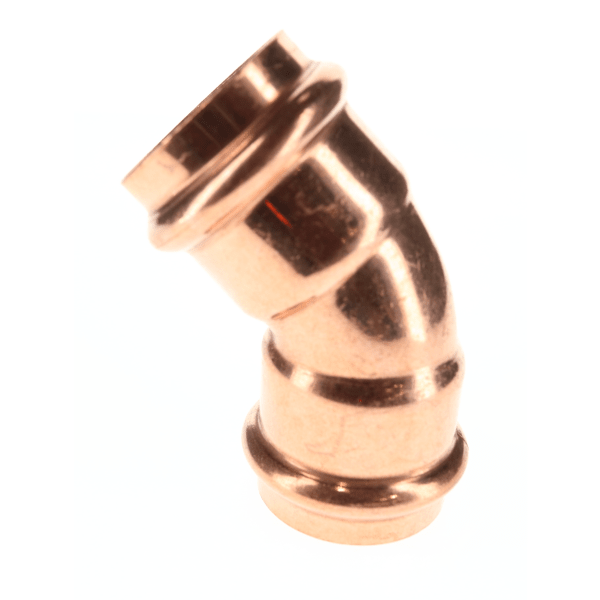

Mueller Streamline PF 03059 2" Copper Press Fittings - 45 Degree Elbow P x P

Mueller Streamline PF 03059 is a 2" 45 degree elbow for copper tube, P x P (P = press socket).

A 45° elbow makes a gentle change of direction; two of them offset a line around an obstacle.

Streamline PRS copper press fittings make a permanent joint with a press tool and the matching copper jaw, with no flame and no solder. They are listed to ASME B16.51 and certified to NSF/ANSI 61 and 372 for drinking water, and are used on potable water, hydronic heating with glycol, chilled water and compressed air. The tube has to be cut square, deburred and fully inserted to the depth mark before pressing.

Specifications

• Brand: Mueller Streamline
• Manufacturer Part #: PF 03059
• Size: 2"
• Type: 45 Degree Elbow
• Connections: P x P
• Material: Copper, EPDM sealing element
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61 and 372
• Temperature: -20°F to 250°F
• Tube: ASTM B88 Type K, L or M copper
• UPC: 685768395317
• Shipping Weight: 0.816 lb
• Category: Press Fittings - Copper (CTS)

Also known as: PR2X45ELL, PF03059

Spec: ASME B16.51 copper press fitting with EPDM seal, for ASTM B88 Type K, L or M copper tube.
