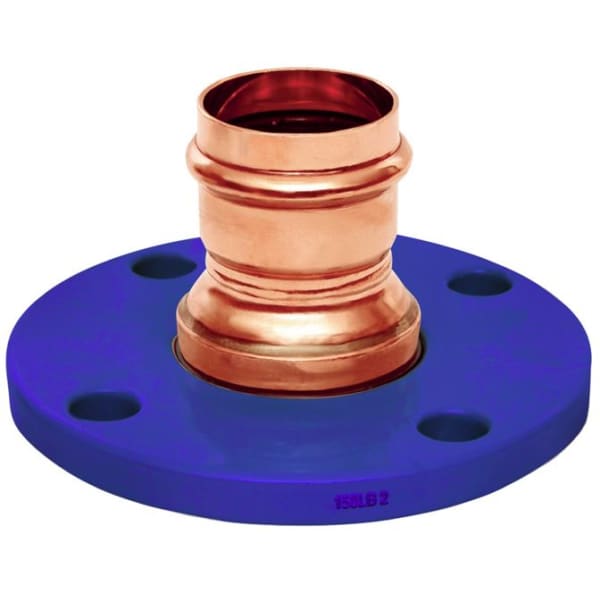

Mueller Streamline PF 02746 2-1/2" Copper Press Fittings - Companion Flange - 150 Lb P x Flange

Mueller Streamline PF 02746 is a 2-1/2" companion flange 150 lb for copper tube, P x Flange (P = press socket, Flange = flange).

A flange makes a bolted connection to flanged valves, pumps or equipment.

Streamline PRS copper press fittings make a permanent joint with a press tool and the matching copper jaw, with no flame and no solder. They are listed to ASME B16.51 and certified to NSF/ANSI 61 and 372 for drinking water, and are used on potable water, hydronic heating with glycol, chilled water and compressed air. The tube has to be cut square, deburred and fully inserted to the depth mark before pressing.

Specifications

• Brand: Mueller Streamline
• Manufacturer Part #: PF 02746
• Size: 2-1/2"
• Type: Companion Flange 150 Lb
• Connections: P x Flange
• Material: Copper, EPDM sealing element
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61 and 372
• Temperature: -20°F to 250°F
• Tube: ASTM B88 Type K, L or M copper
• UPC: 685768399216
• Shipping Weight: 6.27 lb
• Category: Press Fittings - Copper (CTS)
