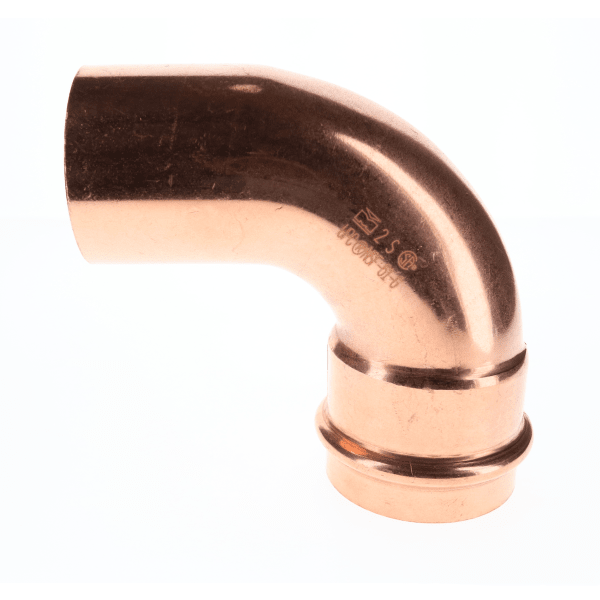

Mueller Streamline PF 02386 2" Copper Press Fittings - 90 Degree Street Elbow Ftg x P

Mueller Streamline PF 02386 is a 2" 90 degree street elbow for copper tube, FTG x P (FTG = fitting-size end (slides into another fitting's socket), P = press socket).

A street elbow has one fitting-size end, so it goes straight into another fitting without a separate piece of tube, which makes the turn tighter and saves a joint.

Streamline PRS copper press fittings make a permanent joint with a press tool and the matching copper jaw, with no flame and no solder. They are listed to ASME B16.51 and certified to NSF/ANSI 61 and 372 for drinking water, and are used on potable water, hydronic heating with glycol, chilled water and compressed air. The tube has to be cut square, deburred and fully inserted to the depth mark before pressing.

Specifications

• Brand: Mueller Streamline
• Manufacturer Part #: PF 02386
• Size: 2"
• Type: 90 Degree Street Elbow
• Connections: FTG x P
• Material: Copper, EPDM sealing element
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61 and 372
• Temperature: -20°F to 250°F
• Tube: ASTM B88 Type K, L or M copper
• UPC: 685768420958
• Shipping Weight: 1.025 lb
• Category: Press Fittings - Copper (CTS)
