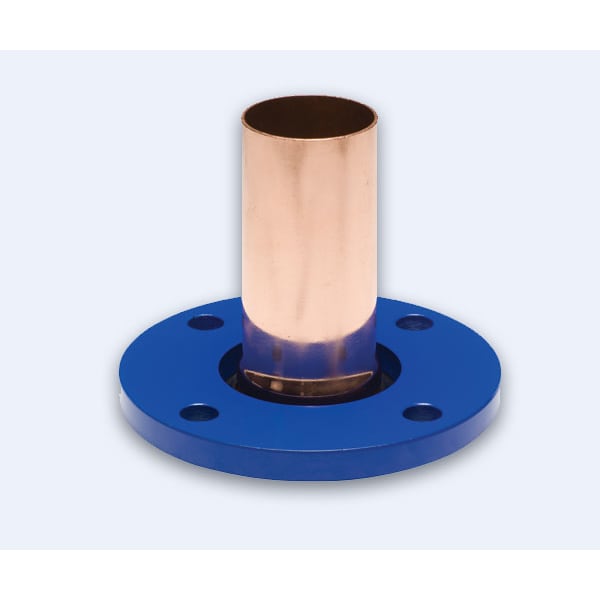

2" Press Copper Coated 4-Bolt Flange Adapter 150 lb

CTS Fabrication 2" Press Copper Coated 4-Bolt Flange Adapter 150 lb

Roll over image to zoom in Click on image to zoom

CTS Flange SF002 2" Copper Press Fit Flange, 150 lb, 4-Bolt

Name: CTS Flange SF002 2" Copper Press Fit Flange, 150 lb, 4-Bolt
Brand: CTS Fabrication
SKU: CTSF-SF002
Price: 248.88 USD
Availability: InStock

CTS FabricationSKU: CTSF-SF002

Price:

$248.88

Stock:

Only 6 units left

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 5.5 lb

Connection Size	2"
Connection Type	Press
Material	Plate Steel
Size	2"
Type	Flange

Brand: CTS Fabrication
Manufacturer Part #: SF002
Shipping Weight: 6.5 lb

Features

2" Class 150 flange with 6" long copper spigot for joining 2" copper tube systems to flanged equipment
Copper spigot end is 2.125" OD (2" copper tube size) and joins with press fittings; can also be soldered or grooved
Plated steel flange ring, 0.63" thick, 6.00" OD; drilling matches ANSI B16.5 Class 150
4 bolt holes, 0.75" diameter, on a 4.75" bolt circle
Rotating flange ring lines up with mating bolt holes without two-holing
Copper component is 99.9% copper; flange design gives electrolysis protection without separate dielectric insulators
Working pressure: 450 psi; burst pressure: 1000 psi
Service temperature: -66°F to 272°F
Used at butterfly valves, flanged gate valves, pumps, boilers, chillers and backflow devices
