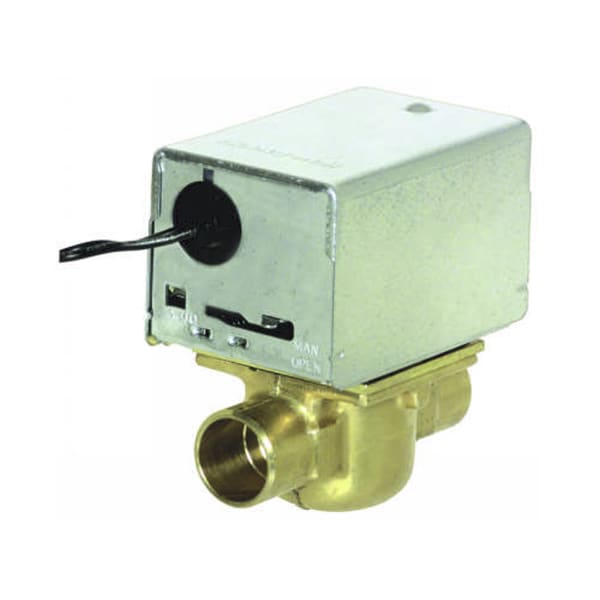

Honeywell Home V8043B1019/U 24 Vac 1/2 in Sweat N.O. Zone Valve

Name: Honeywell Home V8043B1019/U 24 Vac 1/2 in Sweat N.O. Zone Valve
Brand: Honeywell Home
SKU: HONE-V8043B1019/U
Price: 150.41 USD
Availability: InStock

Honeywell HomeSKU: HONE-V8043B1019/U

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Price:

$150.41

Stock:

Only 10 units left

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 1.8 lb
Box size: 5 × 4.55 × 3.65 in

Pipe Size	1/2 in.
Connection Type	Sweat
Body Pattern	Two-way, Straight-through
Valve Type	Zone Valve
Valve Action	Spring return to open
Actuation	Two position
De-energized Position	Normally Open
Manual Opener	No
Capacity (Cv)	3.5 Cv
Voltage	24 Vac; Power Consumption--7.7 VA
Current Draw	0.32A
Frequency	60 Hz
Electrical Connections	18 in. leads
Timing	Nominal Open--15 sec
Close-off Pressure	20 psi
Static Pressure	125 psi
Fluid Temperature	40 F to 200 F
Ambient Temperature	125 F Maximum
Operating Humidity	5 to 95% relative humidity, non-condensing.
Materials (Body)	Brass
Materials (Stem)	Stainless Steel
Materials (Seat)	Brass
Materials (Packing)	EPDM rubber
Materials (Plug/Ball/Disc)	Buna-N (NBR) Rubber Ball
Application	Hydronic Control
Dimensions	4 in. high x 3 1/2 in. wide x 2 3/8 in. deep
UL	UL Listed: File MH11826
CSA	CSA Certified: File 1322

The V8043B1019 is a two-position hydronic zone valve from Resideo, the brand that carries the Honeywell Home line of residential heating controls. It pairs a motorized actuator with a 1/2-inch sweat valve body to start and stop hot water flow to a single heating zone on a call from a thermostat or zone panel.

The valve is normally open. It passes flow with no power applied and closes when the actuator is energized. Normally open is the right choice where a zone has to keep circulating if the control power drops — freeze protection on an exposed loop is the usual reason to specify it.

The 1/2-inch sweat connections tie the valve into the supply piping, and the V8043B1019 handles supply water at operating pressures up to 300 psi.

The V8043 and V4043 series have been the reference zone valves in North American hydronic heating for decades, and most contractors still order them by the original Honeywell part number. The actuator head is field-replaceable, so a burned-out motor does not mean cutting the body out of the line.

Replacement head and motor for this valve

Brand: Honeywell Home
Manufacturer Part #: V8043B1019/U
Valve action: Normally open
Voltage: 24 Vac
Connection size: 1/2 in
Connection type: Sweat
Max operating pressure: 300 psi
Category: Zone Valves

Full Specifications

Valve Ball Material	Buna-N (NBR) Rubber
Approvals and Standards	UL Listed: File MH11826
Color	Brass
Product Height	4 in, 102 mm
Product Length	2.38 in, 60 mm
Product Width	3.69 in, 94 mm
Warranty	1 Year
Ambient Operating Temperature (Max)	125 °F, 52 °C
Connection Type	Sweat
Differential pressure for close-off (Max)	20 psi, 138 kPa
Fail-Safe Operation Type	Spring return to open
Flow Coefficient	3.5 Cv; 3 Kvs
Media Temperature (Min)	40 °F, 5 °C
Media Temperature (Max)	200 °F, 93 °C
Actuator Control Signal	Two position
Actuator Opening Time	15 seconds
Static Pressure Rating	125 psi, 862 kPa
Valve Body Material	Brass
Valve Body Pattern	Two-way, Straight Through
Valve Plug Material	Buna-N (NBR) Rubber
Valve Seat Material	Brass
Valve Start Position	Open
Valve Stem Material	Stainless Steel
