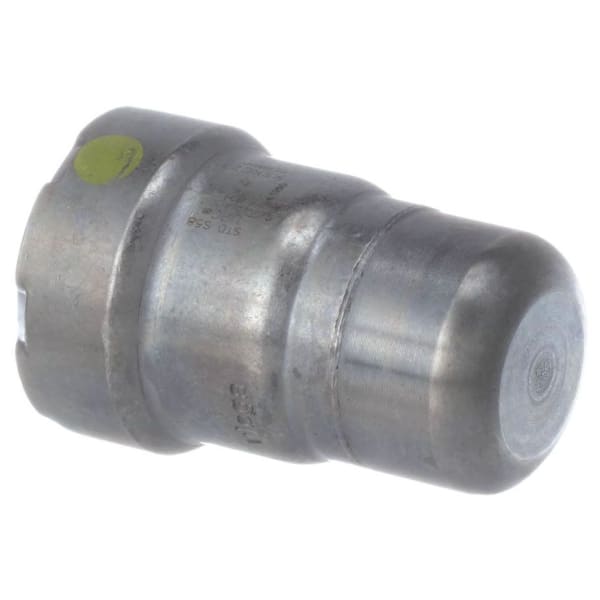

Viega 25736 3/4" - Cap, MegaPress®G

Viega 25736 is a 3/4" MegaPressG cap.

A cap closes off the end of a line, for a future connection or to hold pressure during a test.

Viega MegaPressG is the gas version of MegaPress: a yellow HNBR sealing element and a stainless steel grip ring, listed to ANSI LC 4a / CSA 6.32a for natural gas and propane at up to 125 psi. It presses onto Schedule 10 to 40 steel pipe with a standard press tool and MegaPress jaw, which removes threading and thread sealant from gas piping.

Specifications

• Brand: Viega
• Manufacturer Part #: 25736
• System: MegaPressG
• Size: 3/4"
• Type: Cap
• Material: Carbon steel, zinc-nickel coated
• Sealing element: HNBR (yellow)
• Operating pressure: 125 psi max on fuel gas
• Temperature: -40°F to 180°F
• Pipe: ASTM A53 carbon steel, Schedule 10 to 40 (fuel gas)
• Listings: ANSI LC 4a / CSA 6.32a, UL 180, ASTM F3226
• UPC: 691514257365
• Shipping Weight: 0.264 lb
• Dimensions: 2.256 x 1.496 x 1.496 in (L x W x H)
• Category: Press Fittings - Gas
