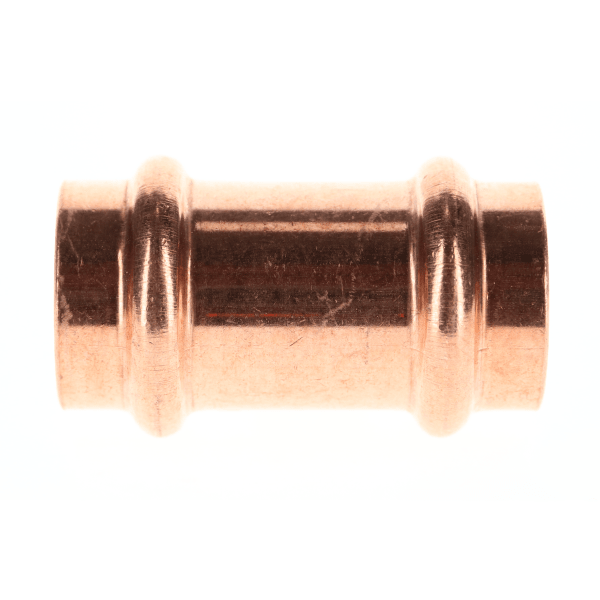

Mueller Streamline PF 01905 3/4" Copper Press Fittings - Repair Coupling - No Stop P x P

Mueller Streamline PF 01905 is a 3/4" repair coupling no stop for copper tube, P x P (P = press socket).

This coupling has no internal stop, so it slides fully over the tube, which is what makes a repair in a fixed line possible.

Streamline PRS copper press fittings make a permanent joint with a press tool and the matching copper jaw, with no flame and no solder. They are listed to ASME B16.51 and certified to NSF/ANSI 61 and 372 for drinking water, and are used on potable water, hydronic heating with glycol, chilled water and compressed air. The tube has to be cut square, deburred and fully inserted to the depth mark before pressing.

Specifications

• Brand: Mueller Streamline
• Manufacturer Part #: PF 01905
• Size: 3/4"
• Type: Repair Coupling No Stop
• Connections: P x P
• Material: Copper, EPDM sealing element
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61 and 372
• Temperature: -20°F to 250°F
• Tube: ASTM B88 Type K, L or M copper
• UPC: 685768395454
• Shipping Weight: 0.13 lb
• Category: Press Fittings - Copper (CTS)
