| Pipe Size | 3/4 in. |
| Connection Type | NPT External Threaded and Sweat |
| Capacity (Cv) | 8.4 Cv |
| Ambient Temperature | 104 F Maximum |
| Application | Water Filter |
| Includes | gauge and service wrench |
| Dimensions | 17 11/16 in. high x 7 in. wide x 3 13/16 in. deep |
| Maximum Safe Operating Pressure (psi) | 230 psi |
| Weight (lb) | 6.4 lb |
| Weight (kg) | 2.9 kg |
| Materials | Body: Brass; Sump: Clear Plastic |
| Screen Size | 100 micron screen |
Description

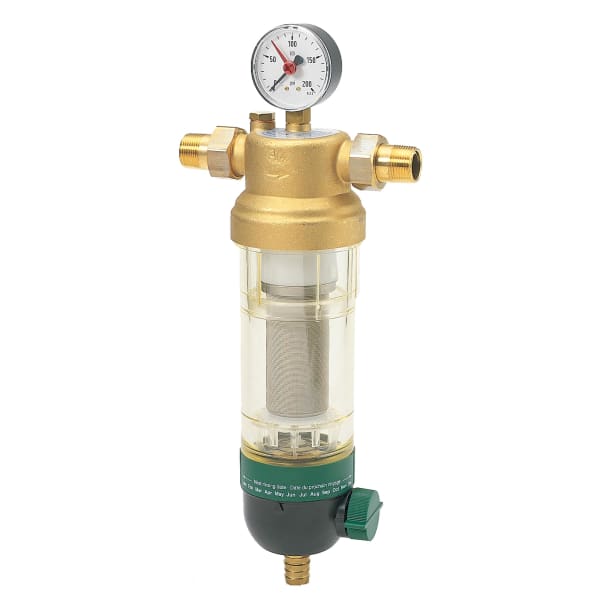

The F76S1015 is a whole-house water filter from Resideo (Honeywell Home), 3/4 in, 100 micron screen.
Everything downstream of the meter is exposed to whatever the main sends. Sand after a water board repair, scale off old pipe, grit from a hydrant flush — it lands in the aerators, the mixing cartridges and the solenoid valves of every appliance in the house, and the repair bill arrives one fixture at a time.
A 100 micron screen stops that class of debris while passing 8.4 Cv — enough that the house does not notice it is there. The clear sump means the screen can be inspected without shutting anything down.
Fit it at the entry, ahead of the branch to the water heater, and leave room below to drop the sump.
Includes gauge and service wrench.
Goes with: MV876B1018, ES06F-1/2A, FT09RS-1A.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: F76S1015
- Type: Whole-house water filter
- Pipe size: 3/4 in
- Connection: NPT External Threaded and Sweat
- Screen: 100 micron screen
- Flow capacity: 8.4 Cv
- Maximum pressure: 230 psi
- Material: Body: Brass; Sump: Clear Plastic
- Includes: gauge and service wrench
- Dimensions: 17 11/16 in high x 7 in wide x 3 13/16 in deep
- UPC: 085267819046
- Category: Water Filters
