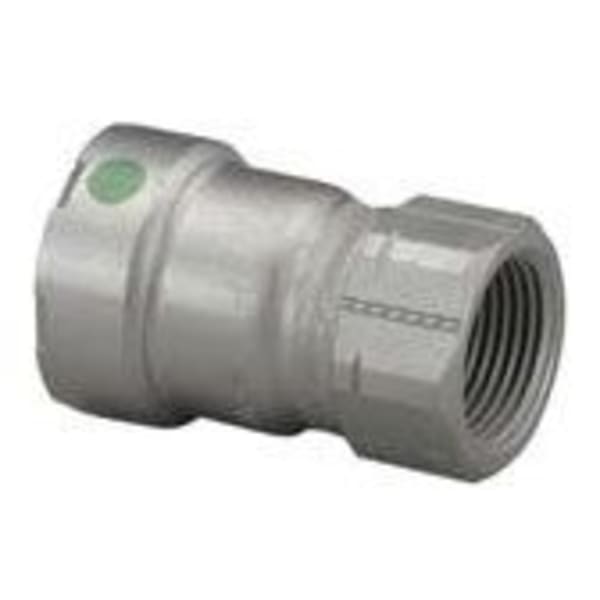

Viega 25135 3/4" x 3/4" - (P-FPT) - Female Adapter, MegaPress®

Viega 25135 is a 3/4" MegaPress female adapter, P x FPT (P = press end for IPS steel pipe; FPT = female pipe thread).

An adapter makes the change from press to a female pipe thread, for a valve, fixture connection or threaded equipment.

Viega MegaPress presses directly onto black iron / carbon steel pipe, so steel lines go together without threading, welding or grooving. The EPDM version is for closed water systems such as hydronic heating and chilled water, and for compressed air. For natural gas or propane use MegaPressG.

Specifications

• Brand: Viega
• Manufacturer Part #: 25135
• System: MegaPress
• Size: 3/4"
• Type: Female Adapter
• Connections: P x FPT
• Material: Carbon steel, zinc-nickel coated
• Sealing element: EPDM
• Operating pressure: 200 psi max
• Temperature: 0°F to 250°F
• Pipe: IPS carbon steel, Schedule 5 to 40 (ASTM A53, A106, A135, A795)
• Listings: IAPMO Z1117, ASTM F3226
• UPC: 691514251356
• Shipping Weight: 0.313 lb
• Dimensions: 2.449 x 1.492 x 1.492 in (L x W x H)
• Category: Press Fittings - Mechanical

See also: all MegaPress fittings, press tools, MegaPressG gas fittings, all Viega.
