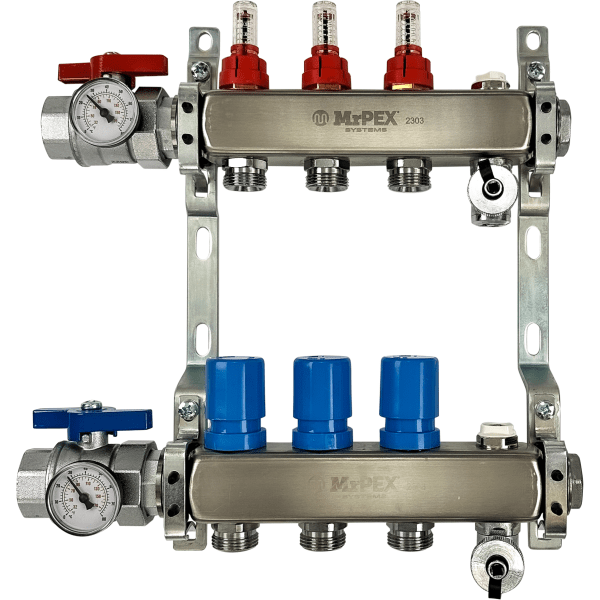

MrPEX Systems 3250300 3 Branches - 1 1/4 Stainless Steel Manifold Assembly w/Flowmeter and Ball Valve

MrPEX Systems 3250300 is a 3-branch 1-1/4" stainless steel radiant manifold assembly with flowmeters and ball valves.

Radiant manifolds distribute heated water from the boiler or heat source to individual PEX tubing loops and collect the return. Flowmeters let the installer see and balance flow in each circuit, which helps keep floor temperatures even across rooms and loop lengths. The 1-1/4" body size should be matched to your supply and return piping and the total flow of all 3 circuits.

When sizing a manifold, count the loops in the design (3 here), confirm the loop tubing size, and choose connection assemblies that match the manifold outlets and the PEX tubing you use. Pressure test the system before pouring concrete or closing floors.

Specifications

• Brand: MrPEX Systems
• Manufacturer Part #: 3250300
• Type: Radiant heating manifold
• Circuits: 3 branches
• Size: 1-1/4"
• Material: Stainless steel
• Includes: Flowmeters and ball valves
• UPC: 603981262605
