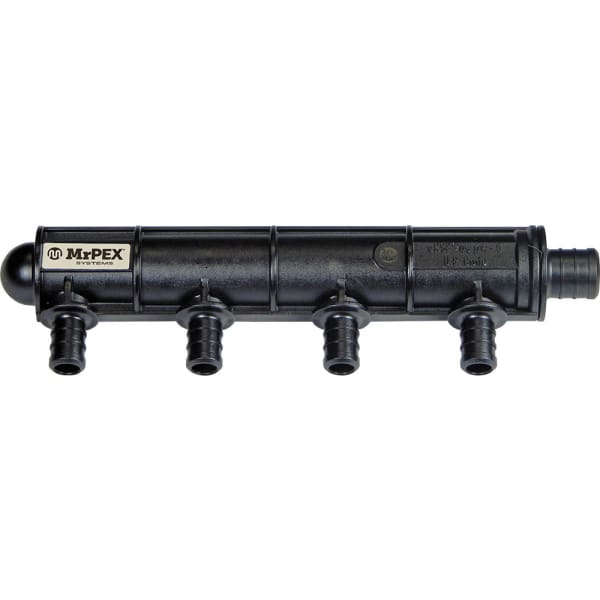

MrPEX Systems 3052040 4-Port PEX Manifold Tee - 1" Expansion Inlet, Closed Outlet - (4) 1/2" Expansion Ports - Composite, Expansion(F1960)

MrPEX Systems 3052040 is a 4-port composite PEX manifold tee with a 1" expansion inlet and (4) 1/2" expansion branch ports.

Manifold tees let you split a supply line into several PEX branches in a compact space, for example to feed fixtures in a bathroom group or a kitchen. This model uses a closed-outlet design, so it serves as the end of a branch run. Outlet connection: closed.

Before ordering, confirm the connection system: this tee is made for F1960 expansion connections, so use the matching rings or sleeves and tooling. Also check the inlet size against your trunk line and the port count against the number of fixtures you need to serve.

Specifications

• Brand: MrPEX Systems
• Manufacturer Part #: 3052040
• Type: PEX manifold tee
• Ports: (4) 1/2"
• Inlet: 1" Expansion
• Outlet: Closed
• Connection: ASTM F1960 expansion
• Material: Composite
• UPC: 603981263879
