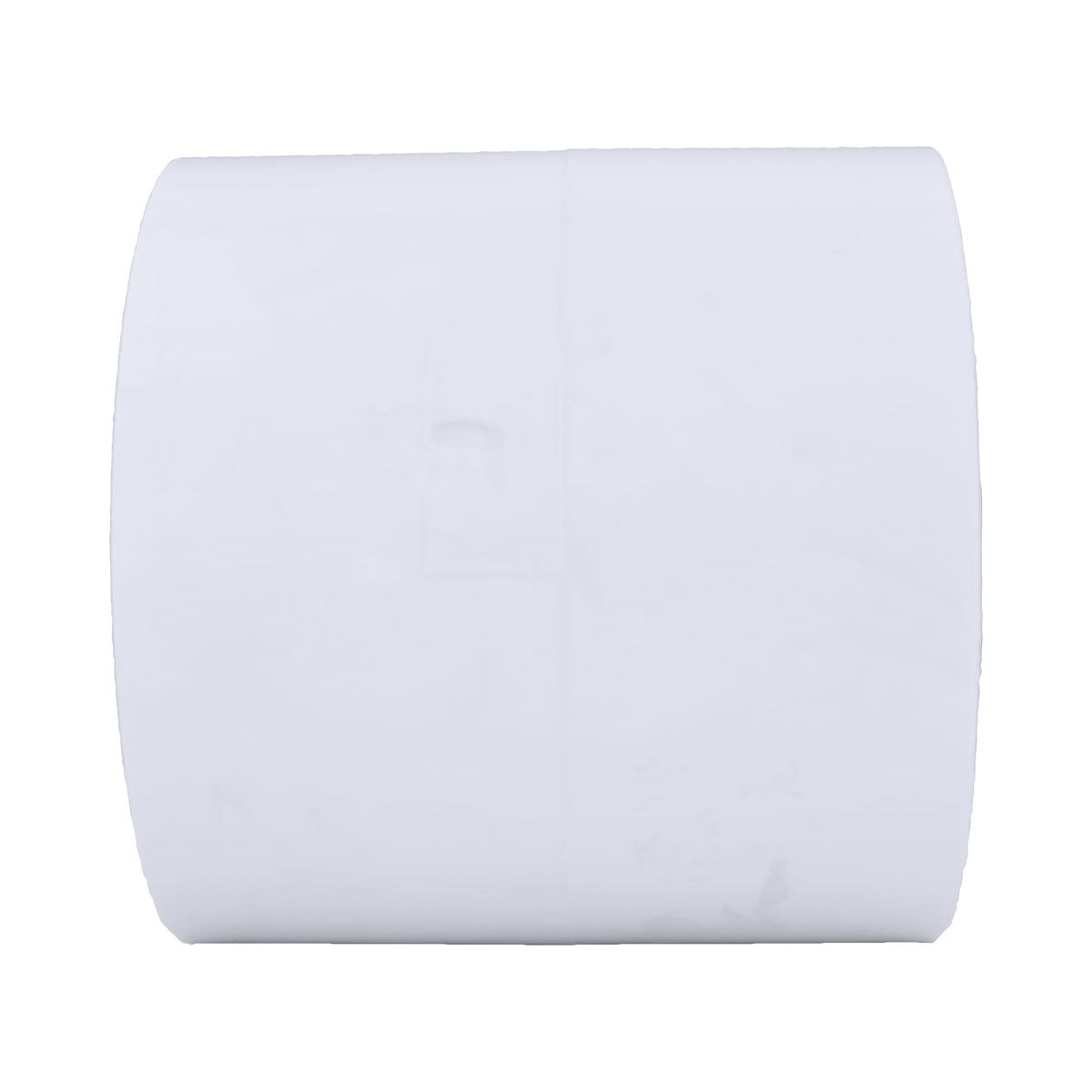

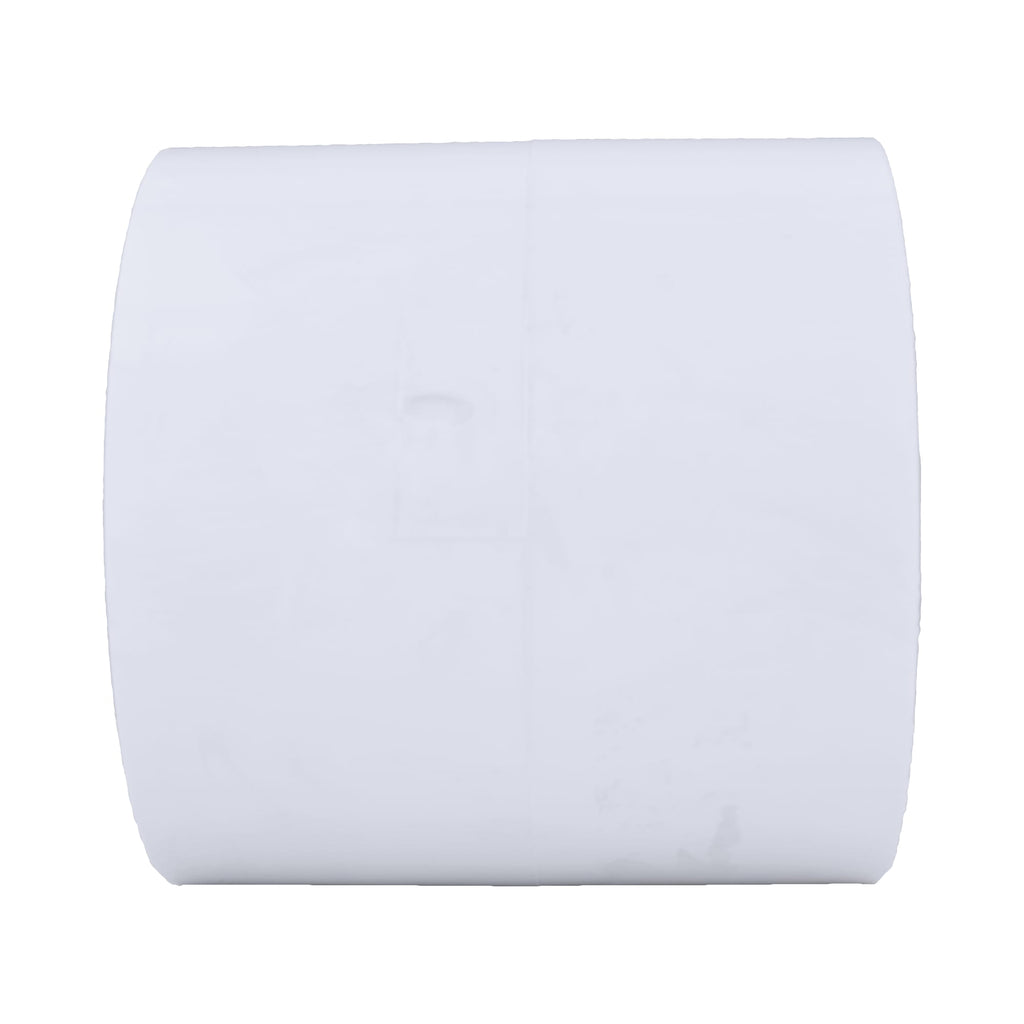

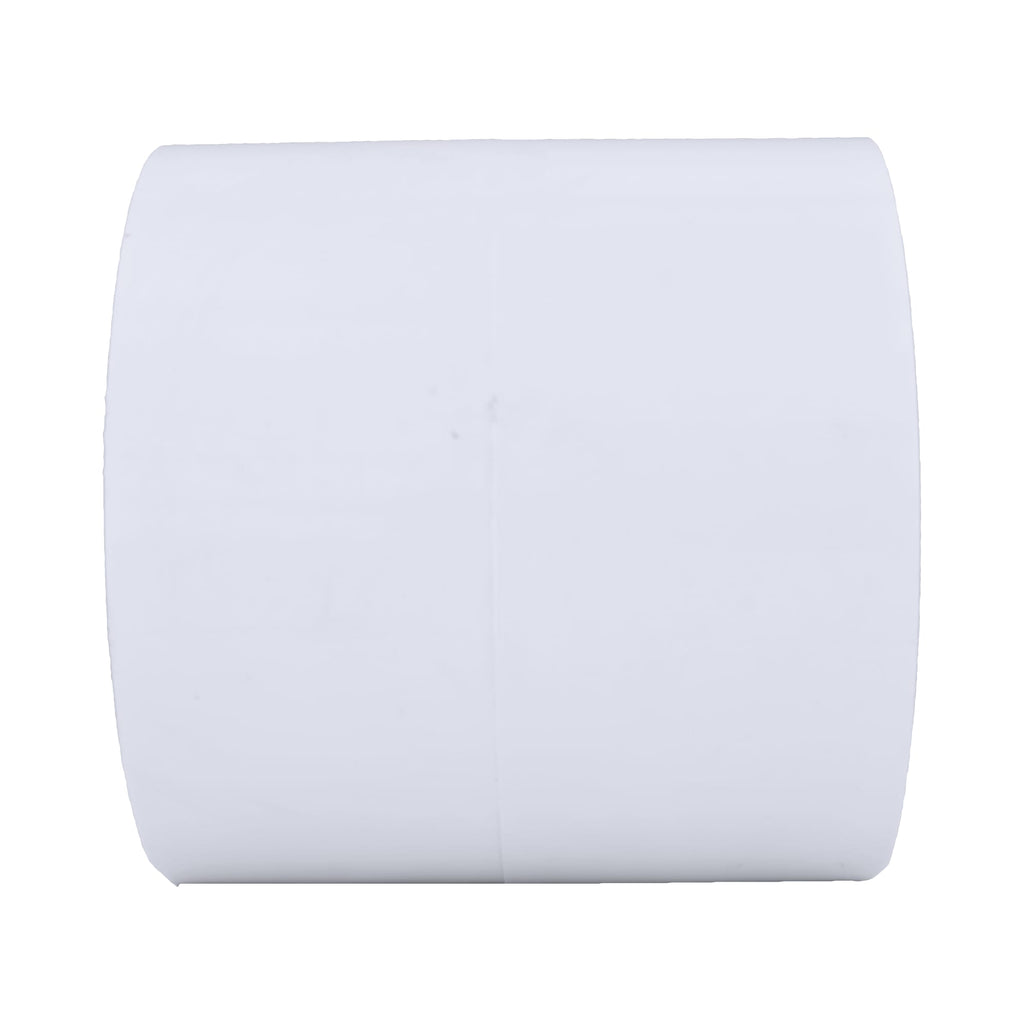

Charlotte Pipe PVC-02100-2000 is a 4" PVC Schedule 40 coupling, Socket x Socket (Socket = socket (takes the pipe)).
A coupling joins two lengths of the same size in a straight run.
Charlotte Schedule 40 pressure fittings are made to ASTM D2466 and certified to NSF 61, for pressure piping where the fluid stays at or below 140°F: water service, irrigation, pools and process water. They join Schedule 40 or Schedule 80 PVC pipe (same outside diameter) with primer and PVC solvent cement. PVC loses pressure capacity as temperature rises, so size the system to the working temperature.
Specifications
-
Brand: Charlotte Pipe
-
Manufacturer Part #: PVC-02100-2000
-
System: PVC Schedule 40
-
Size: 4"
-
Type: Coupling
-
Connections: Socket x Socket
-
Material: PVC Type I (cell class 12454), Schedule 40
-
Standards: ASTM D2466, NSF 61
-
Temperature: 140°F max
-
Joining: Primer and PVC solvent cement
-
UPC: 611942037667
-
Category: PVC SCH 40 Fittings
See also: all PVC Schedule 40 fittings, primer and cement, Schedule 80 fittings, all Charlotte Pipe.
