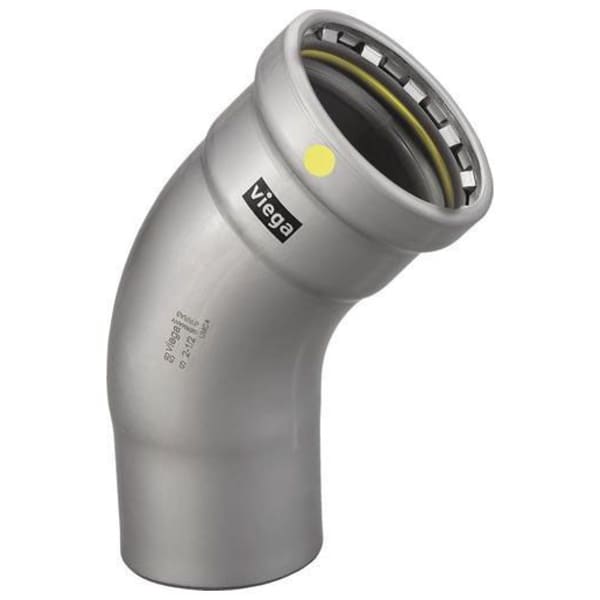

Viega 28655 is a 4" MegaPressG 45 deg elbow (street), P x FTG(IPS) (P = press end for IPS steel pipe; FTG(IPS) = fitting-size end (iron pipe size), slides into another fitting).
A street elbow has one fitting-size end, so it goes straight into another fitting without a separate piece of tube, which makes the turn tighter and saves a joint.
Viega MegaPressG is the gas version of MegaPress: a yellow HNBR sealing element and a stainless steel grip ring, listed to ANSI LC 4a / CSA 6.32a for natural gas and propane at up to 125 psi. It presses onto Schedule 10 to 40 steel pipe with a standard press tool and MegaPress jaw, which removes threading and thread sealant from gas piping.
Specifications
-
Brand: Viega
-
Manufacturer Part #: 28655
-
System: MegaPressG
-
Size: 4"
-
Type: 45 Deg Elbow (Street)
-
Connections: P x FTG(IPS)
-
Material: Carbon steel, zinc-nickel coated
-
Sealing element: HNBR (yellow)
-
Operating pressure: 125 psi max on fuel gas
-
Temperature: -40°F to 180°F
-
Pipe: ASTM A53 carbon steel, Schedule 10 to 40 (fuel gas)
-
Listings: ANSI LC 4a / CSA 6.32a, UL 180, ASTM F3226
-
UPC: 691514286556
-
Category: Press Fittings - Gas
