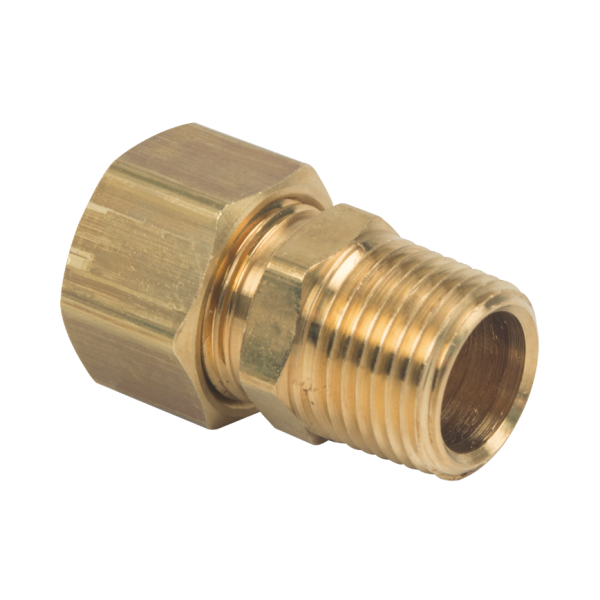

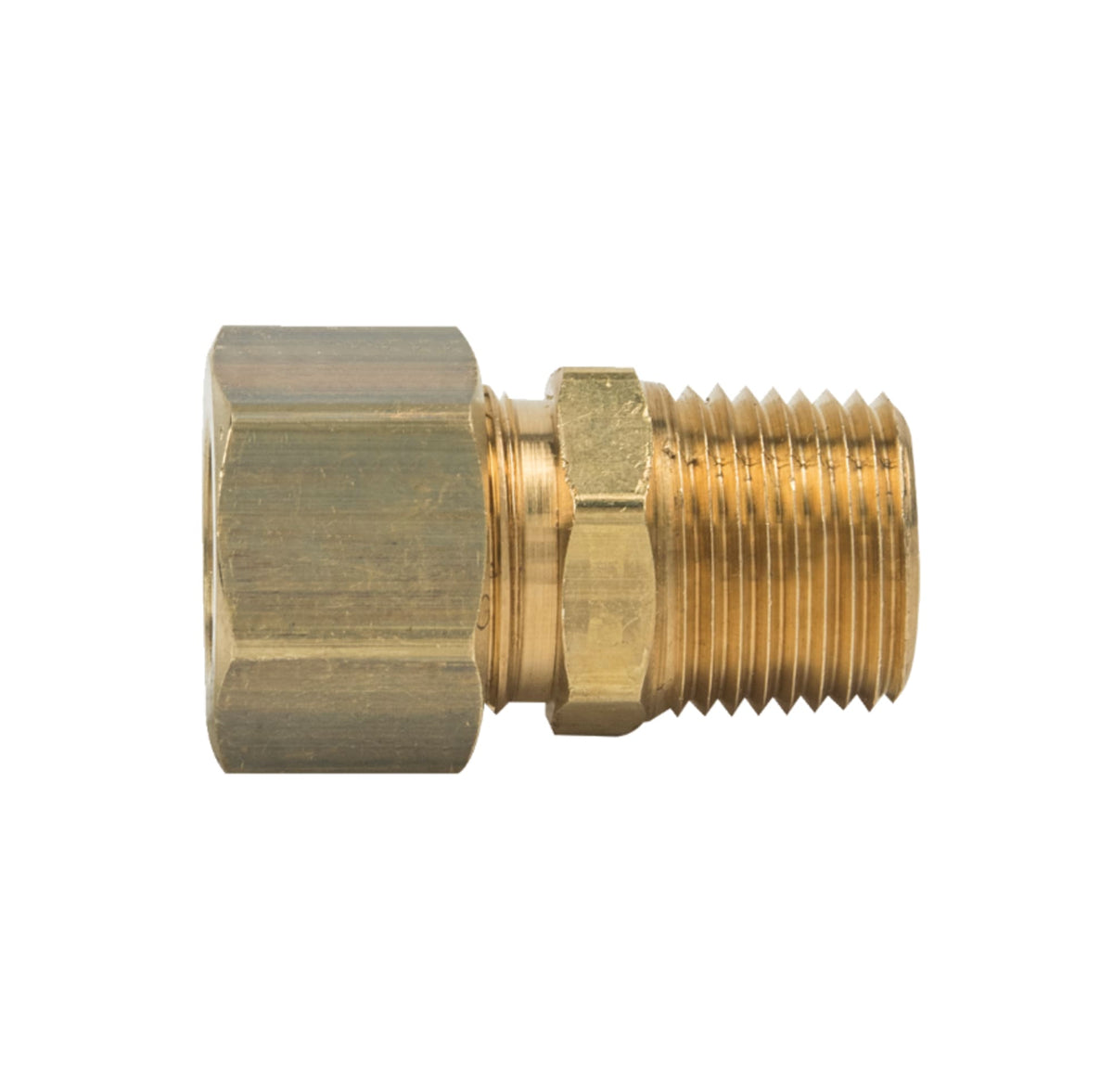

BrassCraft 68-10-6X 5/8" x 3/8" Compression Male Adapter

BrassCraft 68-10-6X is a 5/8" x 3/8" Compression Male Adapter.

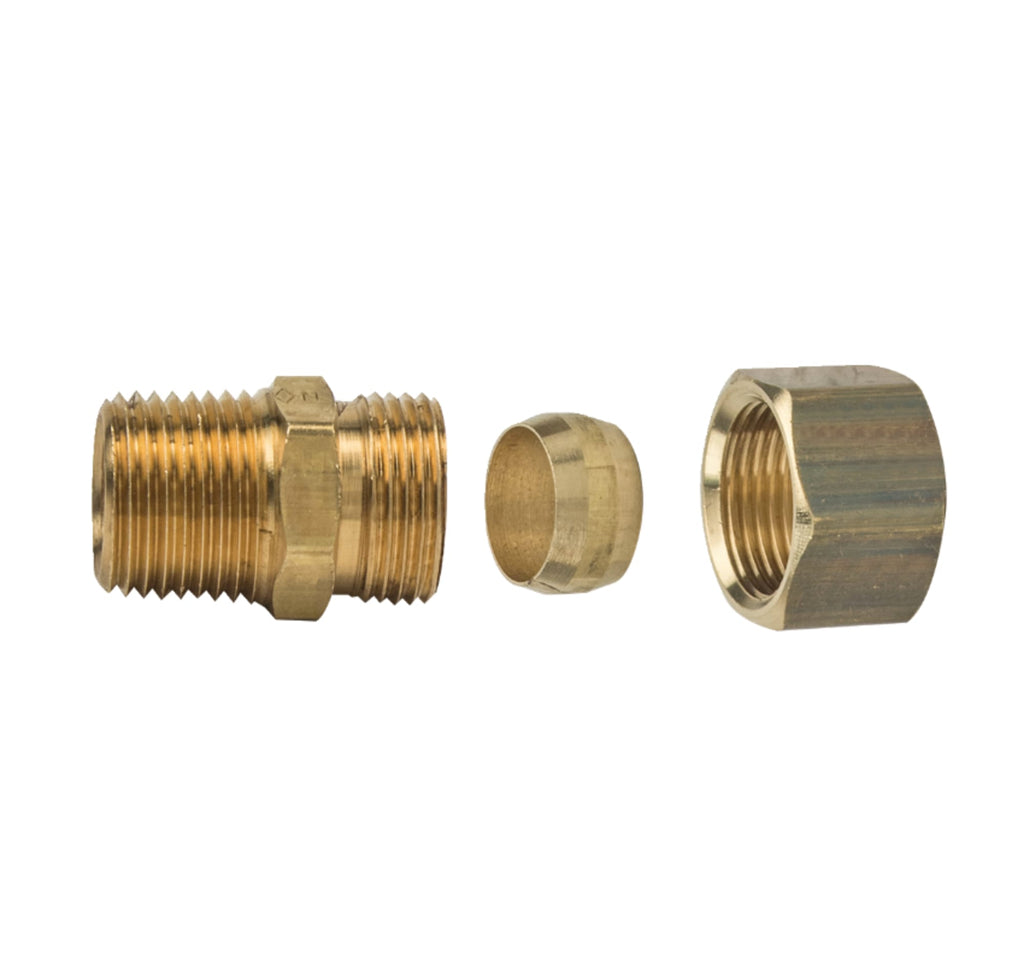

A male adapter connects compression tubing to a female-threaded port or fitting. BrassCraft compression fittings are sized by the tube outside diameter (O.D.), so measure the tubing O.D. rather than its nominal pipe size. When a joint is rebuilt, use a nut and ferrule of the same O.D. as the fitting. Cut tubing square, deburr it, and check that the fitting size, thread and material suit the fluid and local code before installing.

Specifications

• Brand: BrassCraft
• Manufacturer Part #: 68-10-6X
• Category: Compression Fittings

Features

• 5/8" O.D. tube compression x 3/8" male pipe thread (MIP/MNPT) reducing adapter
• One-piece machined brass body
• For copper, aluminum or plastic tubing; plastic and PEX tubing require sleeves and/or inserts; not recommended for steel tubing
• No flaring or soldering needed
• Working pressure: 200 psi
• Temperature rating: -65°F to 250°F
• For potable and non-potable water, gasoline, grease, oil, vacuum and air lines, plus instrumentation, hydraulic and pneumatic systems
• Suitable for indoor and outdoor use
