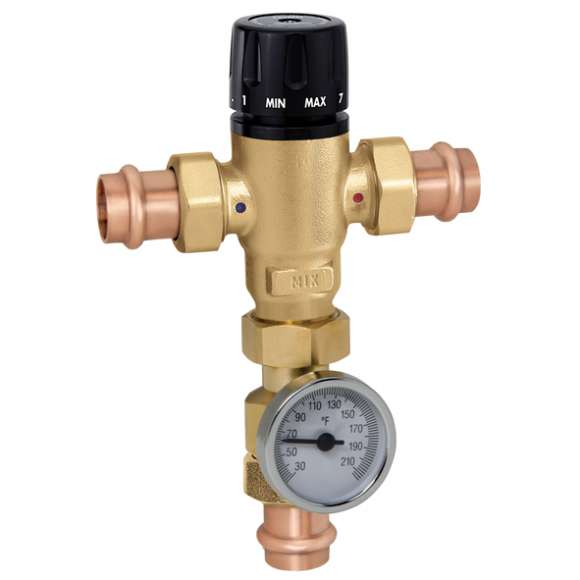

Caleffi 521416A MixCal 3-Way Thermostatic Mixing Valve 1/2" Press with Temperature Gauge, ASSE 1017, 3 Cv

The Caleffi 521416A MixCal is a 1/2" 3-way thermostatic mixing valve with press connections plus a temperature gauge. It blends hot and cold water to deliver a stable, adjustable mixed outlet temperature.

MixCal valves are ASSE 1017 listed point-of-distribution mixing valves, typically installed at the water heater to reduce scald risk while allowing stored water to be kept hotter. A thermostatic element compensates for changes in supply temperature and pressure. The outlet set point is adjustable from 85°F to 150°F. The gauge shows the mixed water temperature at a glance.

Before ordering: Confirm the 1/2" press connections and press tool and check the flow chart in the data sheet against your peak demand. ASSE 1017 valves are not a substitute for ASSE 1070 devices where code requires final tempering at fixtures.

Specifications

• Brand: Caleffi
• Manufacturer Part #: 521416A
• Series: MixCal (521 series)
• Type: 3-way thermostatic mixing valve
• Size: 1/2"
• Connection: 1/2" press
• Material: Brass
• Flow Capacity (Cv): 3
• Temperature Range: 85°F to 150°F
• Max Pressure: 200 psi
• Standards: ASSE 1017
• Features: Temperature gauge
• UPC: 8016615551334
• Category: Mixing Valve - Thermostatic

Documents

• Technical Data Sheet (PDF)
• Installation & Operation Manual (PDF)
• Submittal Sheet (PDF)
• Product Brochure (PDF)
