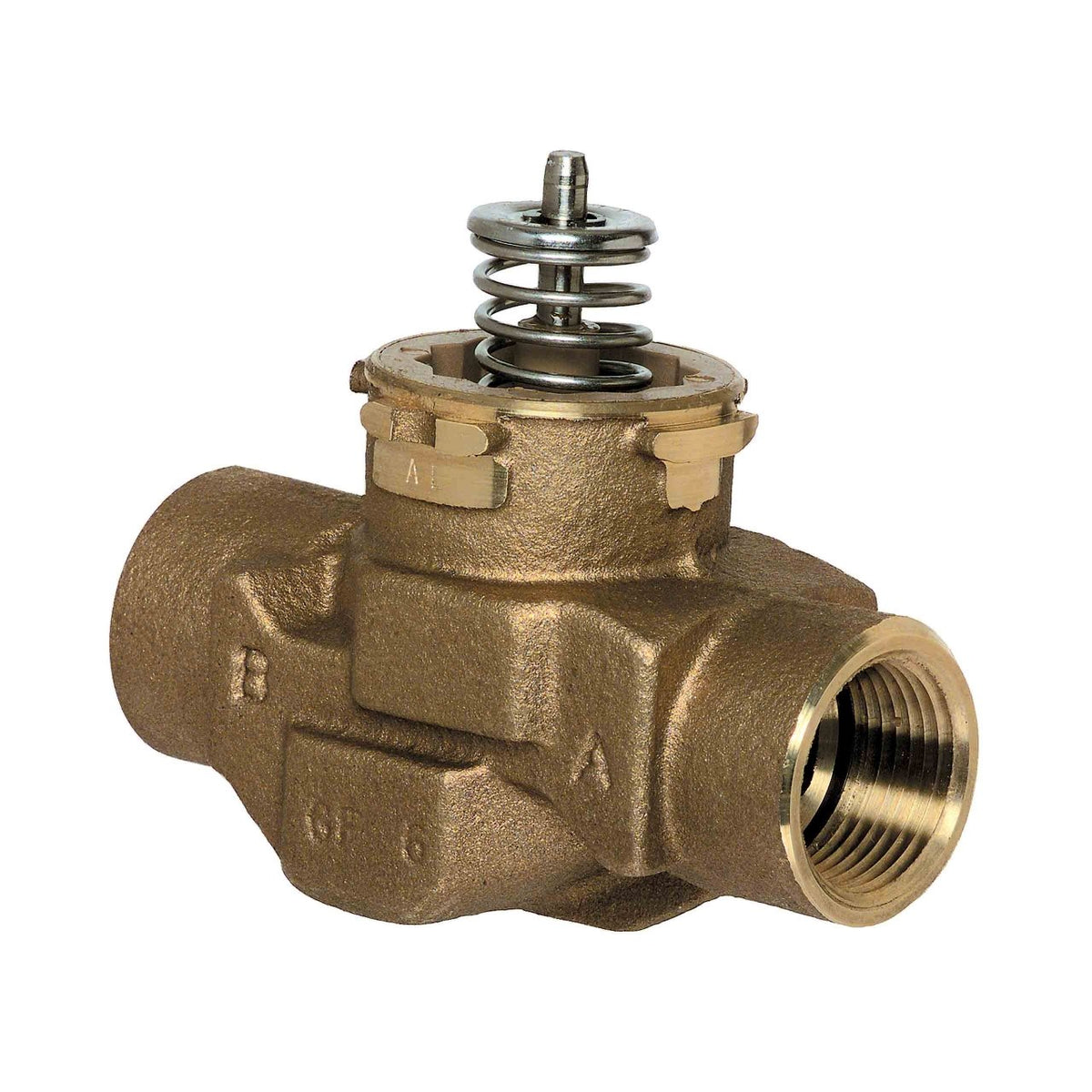

Honeywell Home VCZAL1100/U 2-way 3/4 in female NPT VC valve assembly

Roll over image to zoom in Click on image to zoom

Honeywell Home 2-Way 3/4 in fNPT VC Valve Assembly 4.7 Cv Linear Flow VCZAL1100/U

Name: Honeywell Home 2-Way 3/4 in fNPT VC Valve Assembly 4.7 Cv Linear Flow VCZAL1100/U
Brand: Honeywell Home
SKU: HONE-VCZAL1100/U
Price: 89.24 USD
Availability: InStock

Honeywell HomeSKU: HONE-VCZAL1100/U

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Price:

$89.24

Stock:

Re-stocking soon

Quantity:

Special order — typically ships in 1–2 weeks.
Contact us for an exact lead time.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Ships from Seattle, WA · 30-day returns · Manufacturer warranty

Pipe Size	3/4 in.
Connection Type	Female NPT
Body Pattern	Two-way, Straight-through
Capacity (Cv)	4.7 Cv (4.0 Kvs)
Flow Characteristic	Linear
Close-off Pressure	60 psi
Maximum Operating Pressure	300 psi
Fluid Temperature	34 F to 203 F
Ambient Temperature	32 F to 150 F
Controlled Fluid	Water with up to 50% glycol
Materials (Body)	Bronze
Materials (Stem)	Stainless Steel
Materials (Seat)	EPDM O-ring seals on Noryl piston
Materials (Seals)	EPDM rubber
Materials (Cartridge)	Ryton and Noryl engineering plastic
Stem Travel	0.4 in.
Actuator	Sold separately (VC series)
Warranty	5 years
Includes	Valve, cartridge installation wrench
CSA	CSA Certified

Which version do I need? We also carry a similar model with a different specification. Compare size, connection, length and the other details before ordering, and contact us if you need help choosing. See also: Honeywell Home 2-way 3/4 in fNPT VC Valve Assy 4.7 Cv and Linear Flow VCZAL1100/E.

The VCZAL1100/U is a VC series two-way valve assembly from Resideo, the company behind the Honeywell Home line of hydronic controls. It has a 3/4-inch female NPT bronze body, a 4.7 Cv rating, and a linear flow characteristic. It is used for zone control in residential and light commercial heating and cooling systems.

The body holds a replaceable cartridge, and the actuator mounts on top. According to Resideo, the actuator can be installed without draining the system, and the moving parts can be replaced quickly.

What a complete VC zone valve takes: a valve assembly and a VC series actuator, ordered separately. This listing is the valve assembly. Pick the actuator that matches your control signal.

VC series actuators for this valve

Brand: Honeywell Home
Manufacturer Part #: VCZAL1100/U
Series: VC
Configuration: 2-way
Connection size: 3/4 in
Connection type: Female NPT
Cv: 4.7
Flow characteristic: Linear
Includes: Valve and cartridge installation wrench
Category: Zone Valves

Full Specifications

Connection Type	Female NPT
Flow Coefficient	4.7 Cv; 4.0 Kvs
Valve Flow Characteristic	Linear
Controlled Media	Water with max. 50% glycol according to VDI 2035
Valve Seat Material	EPDM O-ring seals on Noryl piston
Approvals and Standards	CSA Certified
Includes	Valve, Cartridge Installation Wrench
Product Weight	0.54 lb
Differential pressure for close-off (Max)	60 psi, 414 kPa (4 bar)
Media Temperature (Min)	34 °F, 1 °C
Media Temperature (Max)	203 °F, 95 °C
Ambient Operating Temperature (Min)	32 °F, 0 °C
Ambient Operating Temperature (Max)	150 °F, 65 °C
Operating Pressure (Max)	300 psi, 2068 kPa (20 bar)
Static Pressure Rating	300 psi, 2068 kPa (20 bar)
Valve Body Material	Bronze
Valve Body Pattern	Two-way, Straight Through
Valve Cartridge	Yes
Cartridge Material	Ryton and Noryl Plastic
Seal Material	EPDM Rubber
Valve Stem Material	Stainless Steel
Valve Stem Travel	0.4 in, 10 mm
Warranty	5 years
