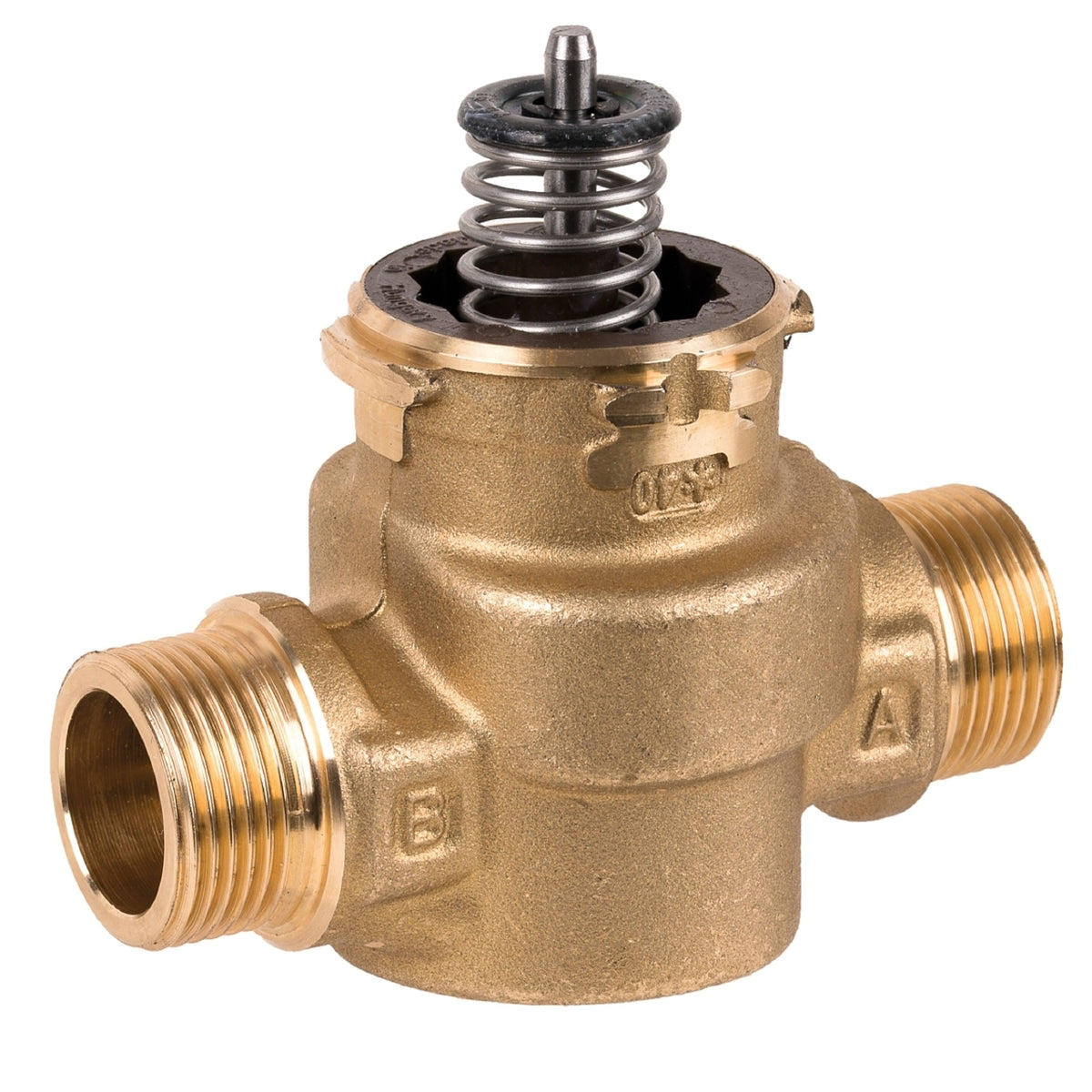

Honeywell Home VCZAA1100/U 2-way 1/2 in sweat VC valve assembly

Roll over image to zoom in Click on image to zoom

Honeywell Home 2-Way 1/2 in Sweat VC Valve Assembly 3.5 Cv Linear Flow VCZAA1100/U

Name: Honeywell Home 2-Way 1/2 in Sweat VC Valve Assembly 3.5 Cv Linear Flow VCZAA1100/U
Brand: Honeywell Home
SKU: HONE-VCZAA1100/U
Price: 56.93 USD
Availability: InStock

Honeywell HomeSKU: HONE-VCZAA1100/U

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Price:

$56.93

Stock:

Re-stocking soon

Quantity:

Special order — typically ships in 1–2 weeks.
Contact us for an exact lead time.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Ships from Seattle, WA · 30-day returns · Manufacturer warranty

Pipe Size	1/2 in.
Connection Type	Sweat
Body Pattern	Two-way, Straight-through
Capacity (Cv)	3.5 Cv (3.03 Kvs)
Flow Characteristic	Linear
Close-off Pressure	60 psi
Maximum Operating Pressure	300 psi
Fluid Temperature	34 F to 203 F
Ambient Temperature	32 F to 150 F
Controlled Fluid	Water with up to 50% glycol
Materials (Body)	Bronze
Materials (Stem)	Stainless Steel
Materials (Seat)	EPDM
Materials (Seals)	EPDM rubber
Materials (Cartridge)	Ryton and Noryl engineering plastic
Stem Travel	0.4 in.
Actuator	Sold separately (VC series)
Warranty	5 years
Includes	Valve, cartridge installation wrench

Which version do I need? We also carry a similar model with a different specification. Compare size, connection, length and the other details before ordering, and contact us if you need help choosing. See also: Honeywell Home VCZAA1100/E 2-way 1/2 in Sweat VC Valve Assembly 3.5 Cv and Linear Flow.

The VCZAA1100/U is a VC series two-way valve assembly from Resideo, the company behind the Honeywell Home line of hydronic controls. It has a 1/2-inch sweat bronze body, a 3.5 Cv rating, and a linear flow characteristic. It is used for zone control in residential and light commercial heating and cooling systems.

The body holds a replaceable cartridge, and the actuator mounts on top. According to Resideo, the actuator can be installed without draining the system, and the moving parts can be replaced quickly.

What a complete VC zone valve takes: a valve assembly and a VC series actuator, ordered separately. This listing is the valve assembly. Pick the actuator that matches your control signal.

VC series actuators for this valve

Brand: Honeywell Home
Manufacturer Part #: VCZAA1100/U
Series: VC
Configuration: 2-way
Connection size: 1/2 in
Connection type: Sweat
Cv: 3.5
Flow characteristic: Linear
Includes: Valve and cartridge installation wrench
Category: Zone Valves

Full Specifications

Connection Type	Sweat
Flow Coefficient	3.5 Cv; 3.03 Kvs
Valve Flow Characteristic	Linear
Controlled Media	Water with max. 50% glycol according to VDI 2035
Valve Seat Material	EPDM
Includes	Valve, Cartridge Installation Wrench
Product Weight	0.5 lb
Differential pressure for close-off (Max)	60 psi, 414 kPa (4 bar)
Media Temperature (Min)	34 °F, 1 °C
Media Temperature (Max)	203 °F, 95 °C
Ambient Operating Temperature (Min)	32 °F, 0 °C
Ambient Operating Temperature (Max)	150 °F, 65 °C
Operating Pressure (Max)	300 psi, 2068 kPa (20 bar)
Static Pressure Rating	300 psi, 2068 kPa (20 bar)
Valve Body Material	Bronze
Valve Body Pattern	Two-way, Straight Through
Valve Cartridge	Yes
Cartridge Material	Ryton and Noryl Plastic
Seal Material	EPDM Rubber
Valve Stem Material	Stainless Steel
Valve Stem Travel	0.4 in, 10 mm
Warranty	5 years
