| Current Draw | 0.6 A |
| Electrical Ratings | 24 Vac |
| Application | Ventilation System |
| Airflow Capacity (cfm) | 50 to 160 cfm |
Description

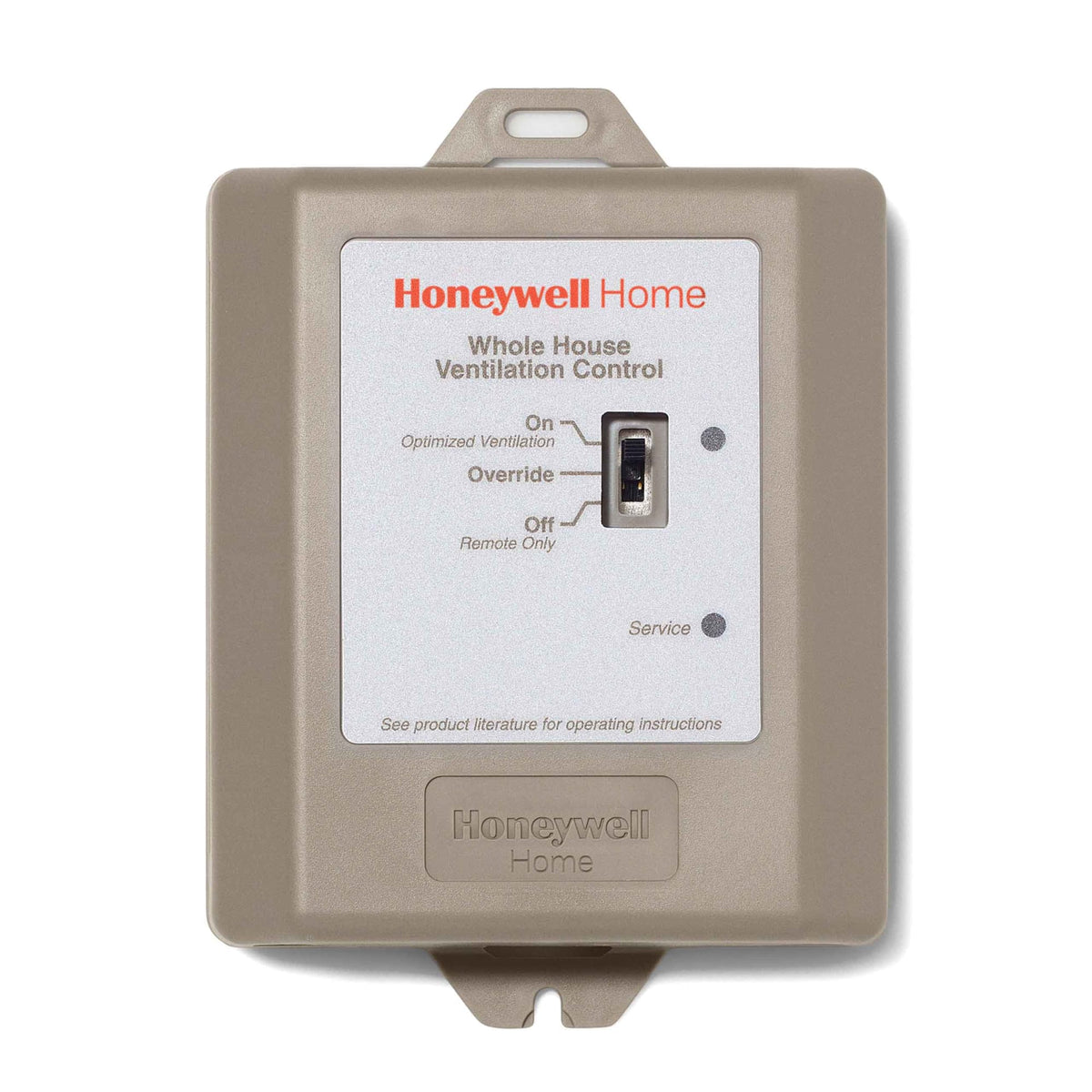

The Y8150A1017 is a fresh air ventilation system from Resideo (Honeywell Home), 24 V, 160 cfm.
A tight house needs ventilation on purpose. This control decides when outside air comes in — by how much the house has already ventilated, by outdoor temperature, and by how long the equipment has run — and opens the fresh air damper only then. Left to itself an intake damper either sits shut or pulls cold air in all winter; the control is what makes it a ventilation strategy rather than a hole.

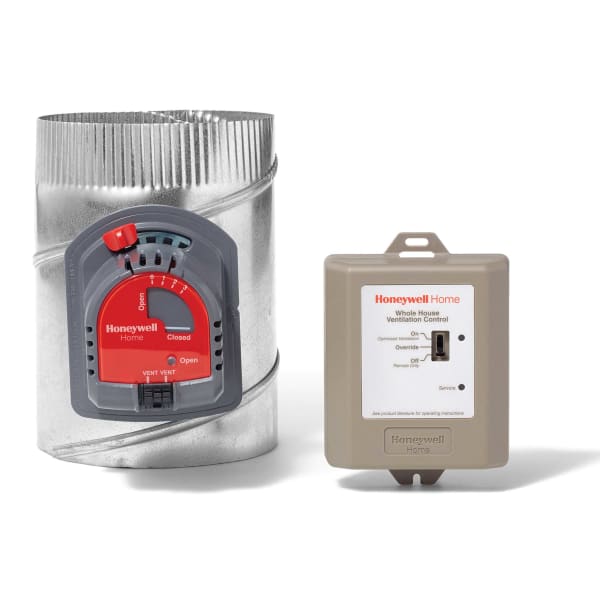

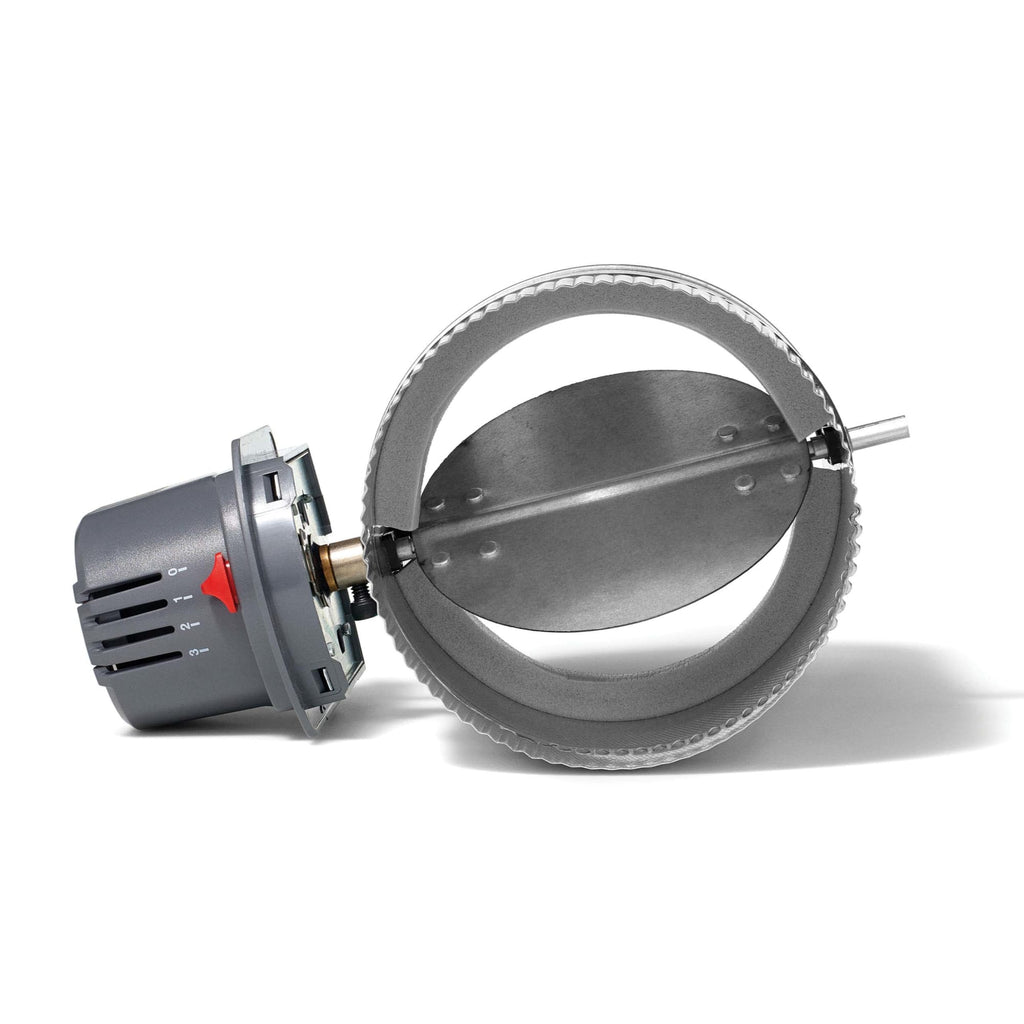

This is the system version: the control and the TrueZONE damper together, matched, rather than the control on its own.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: Y8150A1017/U
- Type: Fresh air ventilation system
- Voltage: 24 Vac
- Current draw: 0.6 A
- Airflow capacity: 160 cfm
- UPC: 085267817998
- Category: Ventilation Controls
