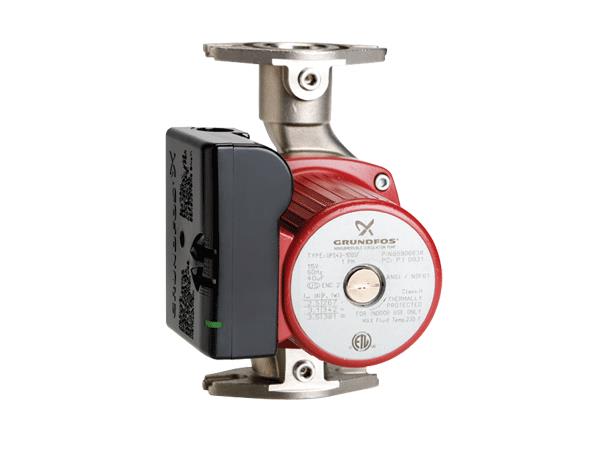

Grundfos 97523136 UPS50-60SF 3-Speed Circulator, Stainless Steel, Flanged, 1/2 HP, 115V

The Grundfos 97523136 is a UPS50-60SF three-speed wet-rotor circulator with a stainless steel pump housing and flanged connections.

UPS circulators are wet-rotor pumps with a manual three-speed selector on the terminal box, so the duty point can be matched to the system. The stainless steel housing is suited to open systems such as domestic hot water and recirculation as well as closed-loop heating. This model handles flows up to 124 GPM and a maximum head of 21.3 ft.

Before ordering: confirm your supply voltage (115V, single phase), and that you have a matching flange set for your pipe size.

Specifications

• Brand: Grundfos
• Manufacturer Part #: 97523136
• Series: UPS
• Model: UPS50-60SF
• Type: 3-speed wet-rotor circulator
• Body Material: Stainless Steel
• Connection: Flanged x flanged
• Max Flow: 124 GPM
• Max Head: 21.3 ft
• Max Pressure: 145 psi
• Voltage: 115V, 1 phase, 60 Hz
• Amperage: 3.6 A
• Wattage: 410 W
• Horsepower: 1/2 HP
• UPC: 5700317647510
• Category: Fixed Speed Circulators

Documents

• Installation & Operation Manual (PDF)
