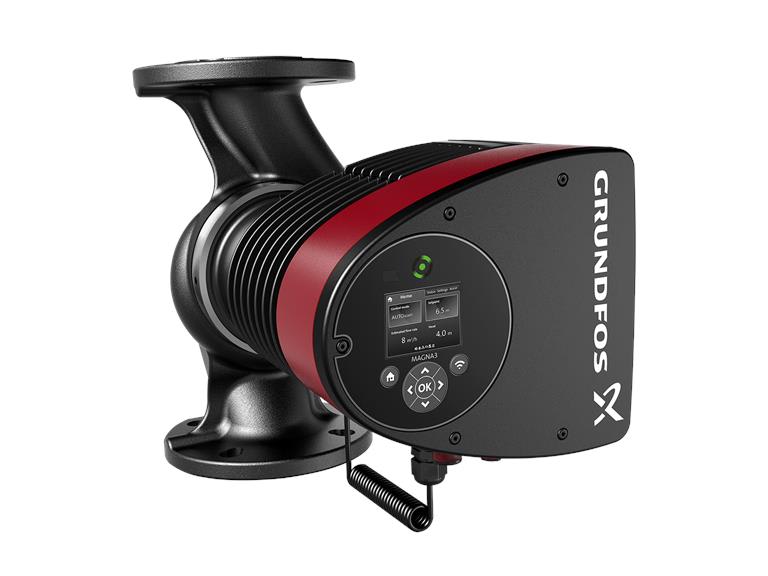

Grundfos 98126822 MAGNA3 32-60 FN Variable Speed ECM Circulator, Stainless Steel, Flanged, 1/8 HP, 115-230V

The Grundfos 98126822 is a MAGNA3 32-60 FN electronically commutated (ECM) variable speed circulator with a stainless steel pump housing and flanged connections, for commercial and large residential domestic hot water and heating systems.

MAGNA3 is the Grundfos choice when system control and monitoring matter: it connects to the Grundfos GO app over Bluetooth and supports fieldbus communication through optional CIM modules. Control modes include AUTOADAPT as well as proportional-pressure, constant-pressure and constant-curve operation. The stainless steel (N) housing is meant for applications where the liquid requires it, such as domestic hot water. This 32-60 model is rated for a maximum head of 19.7 ft and flows up to about 32 GPM.

Before ordering: confirm your supply voltage (115/230V, single phase), the flange size and bolt pattern for the 32-60 model, and that matching flanges and gaskets are on hand.

Specifications

• Brand: Grundfos
• Manufacturer Part #: 98126822
• Series: MAGNA3
• Model: MAGNA3 32-60 FN
• Type: Variable speed ECM circulator
• Body Material: Stainless Steel
• Connection: Flanged x flanged
• Max Head: 19.7 ft
• Max Flow: 32 GPM
• Max Pressure: 175 psi
• Voltage: 115/230V, 1 phase, 60 Hz
• Horsepower: 1/8 HP
• UPC: 5710629499844
• Category: Variable Speed Circulators
