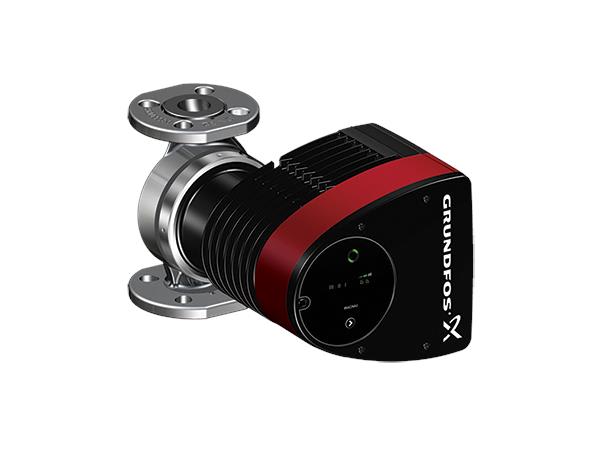

Grundfos 98126825 MAGNA1 32-100 FN Variable Speed ECM Circulator, Stainless Steel, Flanged, 1/6 HP, 115-230V

Roll over image to zoom in Click on image to zoom

Grundfos 98126825 MAGNA1 32-100 FN Variable Speed ECM Circulator, Stainless Steel, Flanged, 1/6 HP, 115-230V

Name: Grundfos 98126825 MAGNA1 32-100 FN Variable Speed ECM Circulator, Stainless Steel, Flanged, 1/6 HP, 115-230V
Brand: Grundfos
SKU: GRUN-98126825
Price: 2475.99 USD
Availability: InStock

GrundfosSKU: GRUN-98126825

Price:

$2,475.99

Stock:

Re-stocking soon

Quantity:

Special order — typically ships in 1–3 weeks.
Contact us for an exact lead time.

Pricing a job? Send us your quote.

Contractors and homeowners: send the model number, quantity and ZIP. We reply in writing with a project price and shipping cost, usually within 1 business day.

Get a written quote Pros: open a trade account

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 12.8 lb
Box size: 9.8 × 9.1 × 7.1 in

Flow Rate Range	0 to 40 GPM
Material	Stainless Steel
Type	Variable Speed Circulators

The Grundfos 98126825 is a MAGNA1 32-100 FN electronically commutated (ECM) variable speed circulator with a stainless steel pump housing and flanged connections, for commercial and large residential domestic hot water and heating systems.

MAGNA1 is the Grundfos ECM circulator for straightforward commercial applications, with proportional-pressure, constant-pressure and constant-curve control modes selected at the pump. The stainless steel (N) housing is meant for applications where the liquid requires it, such as domestic hot water. This 32-100 model is rated for a maximum head of 32.8 ft and flows up to about 40 GPM.

Before ordering: confirm your supply voltage (115/230V, single phase), the flange size and bolt pattern for the 32-100 model, and that matching flanges and gaskets are on hand.
