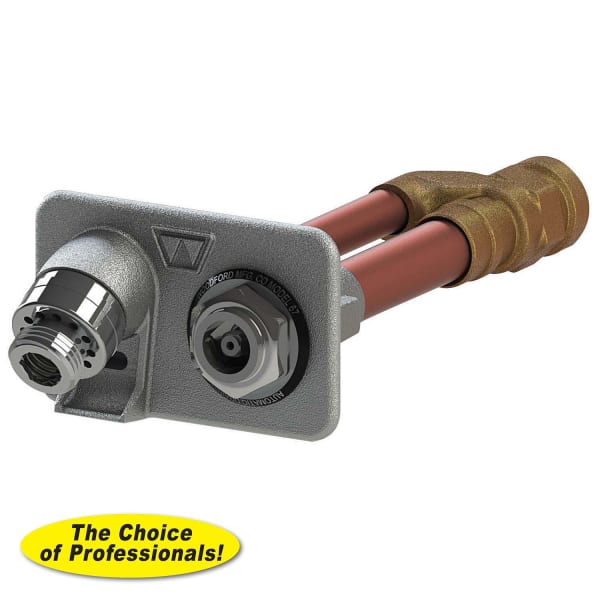

Woodford 65P-4 Model 65 - Freezeless Hydrants FIP, 3/4" Connection, Wall Depth - 4"

The Woodford 65P-4 is a Model 65 freezeless wall hydrant: an automatic draining, freezeless wall hydrant with a hose connection anti-siphon vacuum breaker. This one has a 3/4" female pipe thread (FIP) inlet and is made for a 4" wall. Woodford designs it for commercial buildings such as restaurants, schools, offices, apartments, stores and industrial buildings.

Key features

• Drains as the handle is shut off, even with a hose attached
• Drain port under the nozzle sends water away from the building
• Red brass head and valve body, copper casing tubes, 3/8" solid brass operating rod
• Hardened stainless steel operating stem and one-piece valve plunger that controls both flow and drain
• Loose tee key operation (key supplied); no-lead solder on all joints; adjustable wall clamp supplied
• Fits one standard modular brick course

Specifications

• Brand: Woodford
• Manufacturer part number: 65P-4
• Inlet: 3/4" female pipe thread (FIP)
• Outlet: 3/4" male hose thread
• Wall thickness: 4" (overall length = wall thickness + inlet)
• Backflow device: NIDEL Model 34HA hose connection vacuum breaker (single check) with 3/4" male hose thread, ASSE 1011 approved, IAPMO listed
• Approval: Hydrant plus vacuum breaker ASSE 1019-B approved
• Maximum working pressure: 125 psi
• Maximum temperature: 120°F
• UPC: 671090028825

What's included

• Hydrant with the hose-connection backflow device installed
• Loose tee key
• Adjustable wall clamp

Specifications from Woodford submittal sheet SS65.101. Match the hydrant length to the full wall thickness so the valve seat sits inside the heated space.
