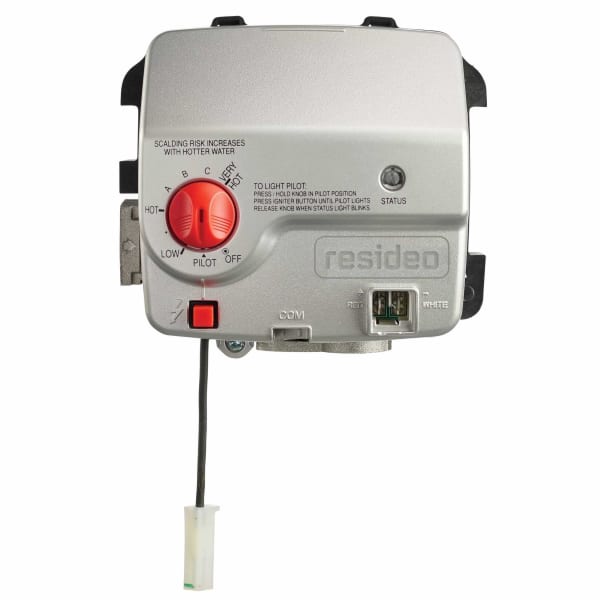

Name: Resideo WT8840A1000/U Replacement Valve for Bradford Water Heaters with 1 in Insulation
Brand: Resideo
SKU: HONE-WT8840A1000/U
Price: 204.97 USD
Availability: InStock

Replacement Valve for Bradford Water Heaters with 1 in Insulation

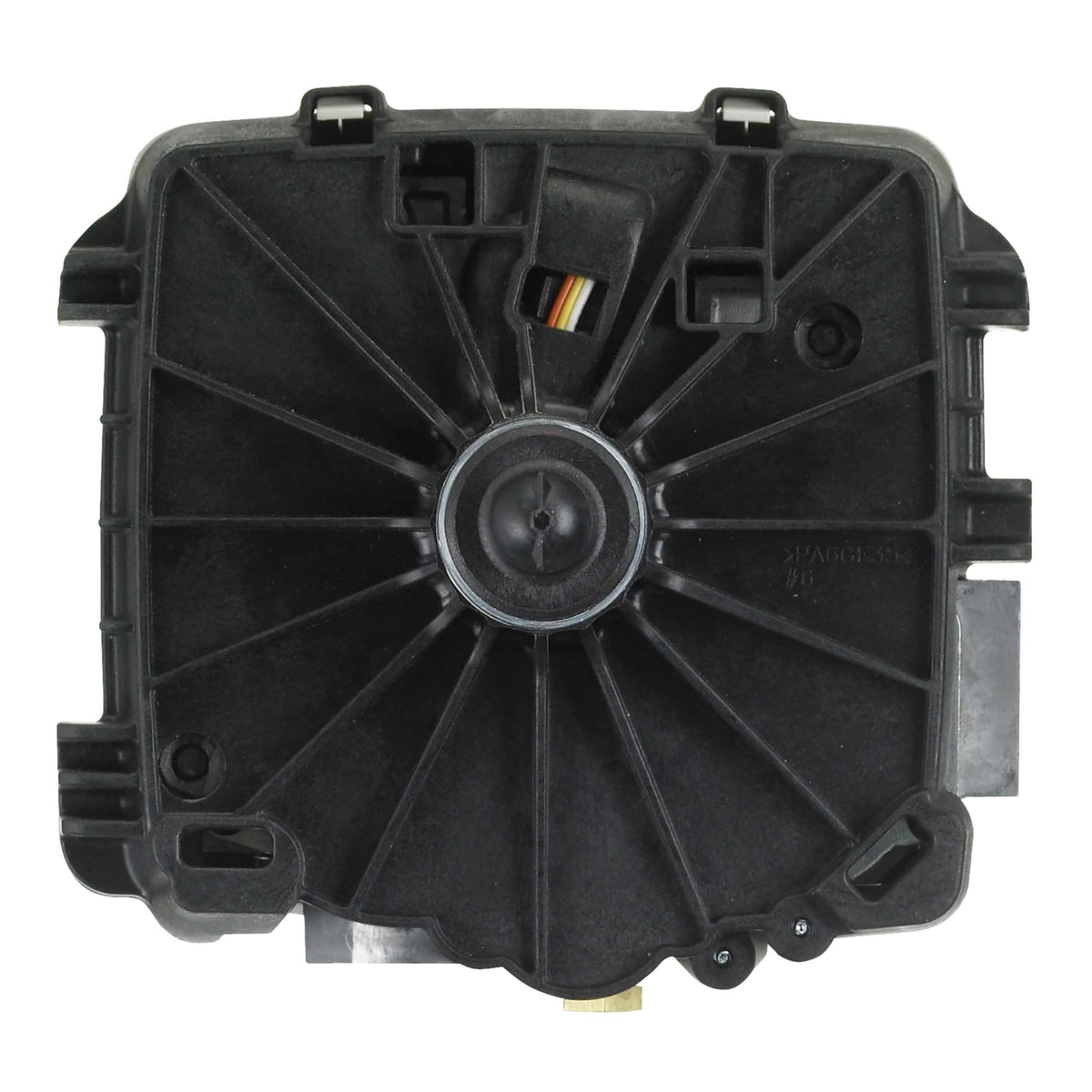

Resideo Replacement Valve for Bradford Water Heaters with 1 in Insulation

Roll over image to zoom in Click on image to zoom

Inlet/Outlet Size	1/2 in. NPT x 1/2 in. Inverted Flare
Mounting	Mounting in the upright position
Application	Gas control
Temperature Ratings (F)	Ambient-- 32 F to 150 F; TCO Limit-- 189 F
Setpoint Temperature Range (F)	Valve-- 55F to 155F
Capacity	Min. 30 ft3/hr, Max. 75ft3/hr
Pressure Regulator Setting (psi)	4.0 in. wc

Installation Instructions PDF ↗

Replacement gas control valve from Resideo (Honeywell Home) for Bradford White water heaters with 1 inch insulation, part number WT8840A1000/U.

The gas control on a storage water heater is thermostat and safety shutoff in one body. It reads tank temperature through a probe in the wall of the tank, opens the burner when the water drops below setpoint, and closes on a loss of pilot or on a temperature it will not allow.

Match the control to the tank, not just to the thread. Water heater gas controls are specific to the manufacturer, the insulation thickness and the emissions rating, because the probe length and the shutoff logic differ between them.

Gas appliance safety. A gas valve must match the appliance it is fitted to — ignition system, capacity, inlet pressure and gas type. Replacement is work for a licensed gas technician, and the appliance manufacturer's parts list is what decides the correct valve, not the physical fit of the threads. If the replacement does not match, the appliance can fail to light, fail to prove flame, or overfire.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: WT8840A1000/U
Type: Water heater gas control valve
Fits: Bradford White
Insulation: 1 in
UPC: 085267567398
Category: Gas Valves

Full Specifications

Application	Water Temperature Sensing
Product Features	Replaces WV8840A1000, WV8840A1001, 222-47463-01A, 222-47463-01E, or 239-47463-01
Approvals and Standards	CSA Certified: ANSI Z21.20, ANSI Z21.23, ANSI Z21.78, ANSI Z21.87, CAN/CSA-C22.2 No. 199-M89, CAN1-6.6-M78, CSA 4.6, CSA 6.20
Compatible With	Standing Pilots
Includes	NTC Temperature Sensor
Capacity (Min)	30 Btuh
Capacity (Max)	75 Btuh
Ignition Type	Standing Pilot with Peizo
Type of Fuel	Natural Gas
Sensor Type	NTC thermistor
Body Pattern	90 degree
Inlet Pressure (Max)	0.5 psi , 14.0 in w.c.
Control Input Voltage (Min)	350 mV dc, open circuit
Control Input Voltage (Max)	850 mV dc, open circuit
Mounting Type	Mount in the upright position
Inlet Connection Size	1/2 in
Inlet Connection Type	NPT
Outlet Connection Size	1/2 in
Outlet Connection Type	Inverted Flare
Set point Temperature (Min)	55 °F, 13 °C
Set point Temperature (Max)	155 °F, 68 °C
TCO Cutout Temperature	189 °F, 87 °C
Ambient Operating Temperature (Max)	150 °F, 66 °C
Ambient Operating Temperature (Min)	32 °F, 0 °C
Operating Relative Humidity (Max)	95% Non-condensing at 104 °F, 95% Non-condensing at 40 °C
Warranty	1 Year
Color	Silver
Product Weight	2.2 lb
