Description

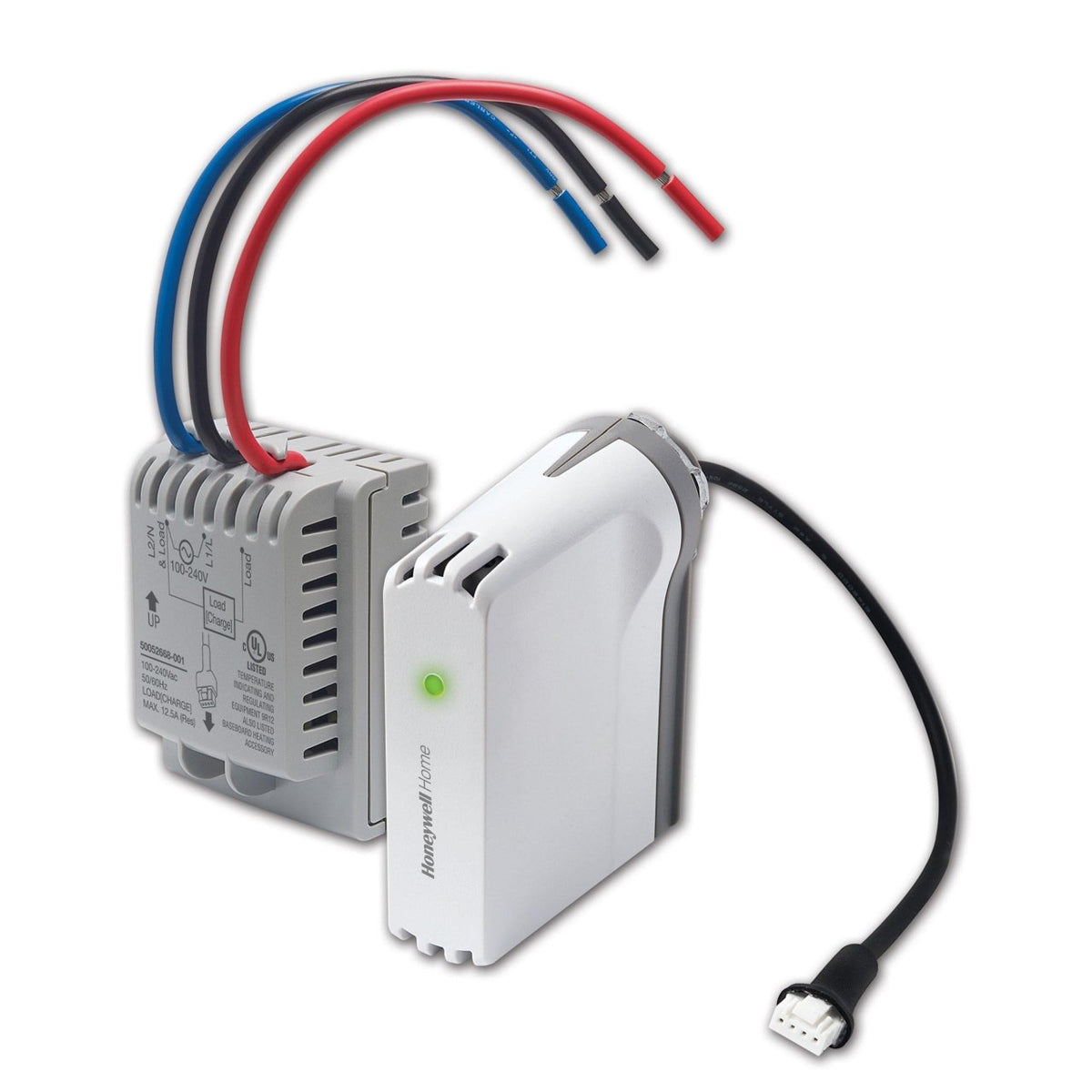

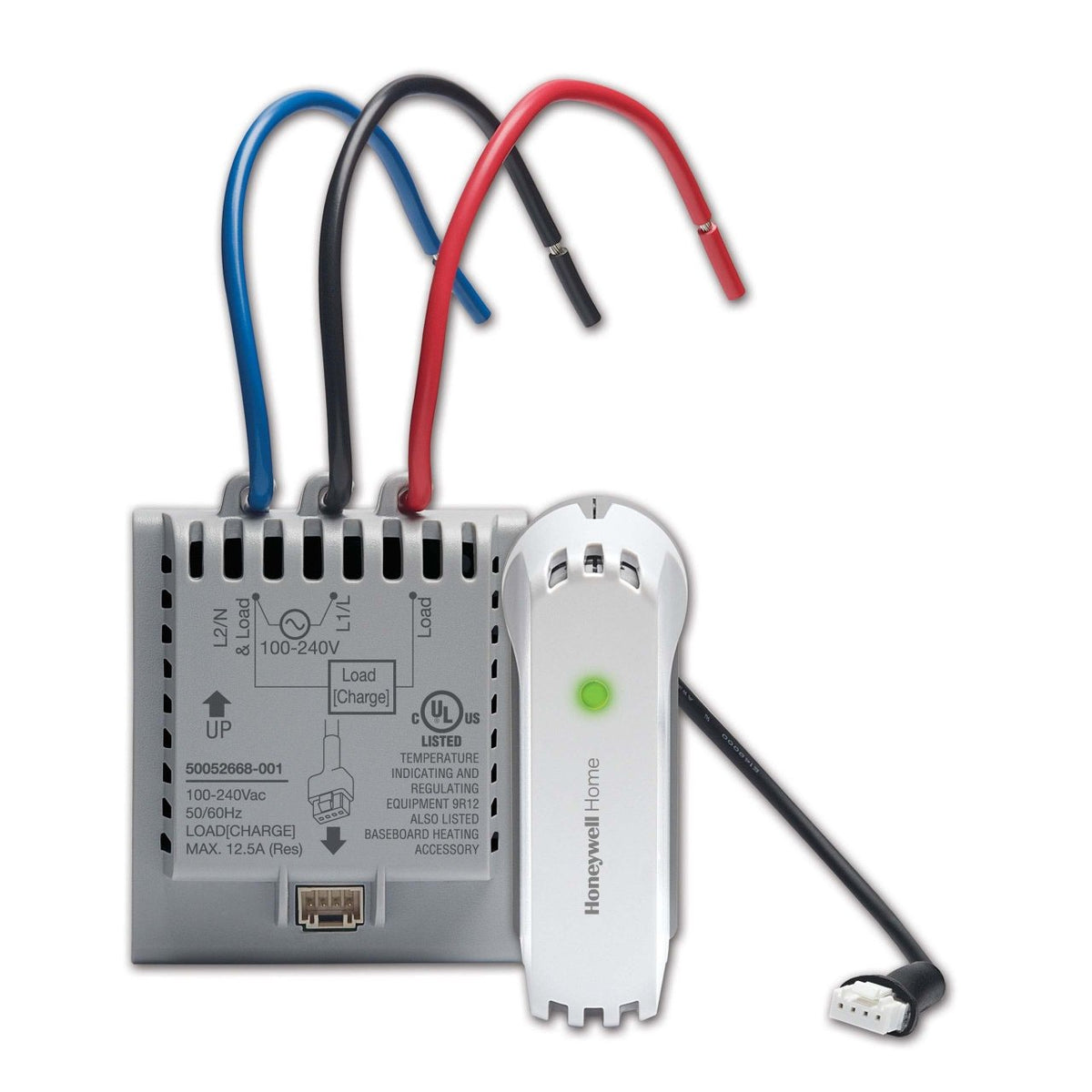

Aube wireless line voltage equipment interface module, RedLINK enabled, for electric baseboard, convectors, and fan-forced heaters, 100–240V, 12.5 A max (resistive).
Features
- Energy saving and TPI control
- Wireless enabled upgrade
- Two way wireless communication
- Wireless signal strength indicator:ST9520C Wireless Enabled Programmer: Built in Economy or Comfort programmes; LoT™ display for easy programming; Fits on industry standard backplate
- DT92E Wireless Thermostat: ECO setback function; Frost protection; Tabletop stand supplied; Battery powered, no wiring
- OPTIONS: OpenTherm Boiler Control (with suitable OpenTherm Boiler)
- Remote Boiler control with wireless relay box (BDR91 supplied separately)
- Remote Valve control with wireless relay box (BDR91 supplied separately)
- Optimum Start
- Delayed Start
- Optimum Stop
- OFF setting adjustable from 5 °C to 16 °C
- Service Interval reminder with variable levels of action
- Installer set up mode, controls can be matched to the system and user
- The ST9020 range is an extension to the ST9000 family to cover wireless applications. Each ST9020 product is wireless enabled, with a built in wireless transceiver. This allows it to communica
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: ATM100-SPK/U
- Application: Electric Heating; Baseboard heater; Convector or Fan-forced Heater
- Thermostat Type: Line Voltage, RedLINK, Communicating, Digital
- Approvals and Standards: CE
- Smart Home Integration: No
- Display Type: LCD Screen
- Display Size: 7.27 sq in
- Touchscreen: No
- Modes of Operation: Heat
- Program Type: Manual / Not Programmed
- Battery Type: Alkaline
- Power Source: Hardwired
- Frequency: 50 Hz, 60 Hz
- Battery Size: AA
- Warranty: 3 Years
- Includes: Aube Electrical Heat Equipment Interface, White and light almond antenna covers
- For Use With: YTL9160AR1000 EConnectTM thermostat kit
- WiFi: No
- Z-Wave: No
- Z-Wave Specifications: Not Applicable
- RedLINK: Yes
- Color: White
- Ambient Operating Temperature (Max): 140 °F, 60 °C
- Ambient Operating Temperature (Min): -4 °F, -20 °C
- Ambient Relative Humidity (Max): Thermostat: 90% RH non-condensing, EIM: 95% RH non-condensing
- Ambient Relative Humidity (Min): Thermostat: 5% RH non-condensing, EIM: 5% RH non-condensing
- Compatible Sensor: Outdoor Temperature Sensor
- Mounting Type: Vertical Mount
- Number of Switch Steps: 2x Single pole, double throw (SPDT) relay
- Power Supply Frequency: Time control ST9020: 230 Vac / 10 VA, Thermostats DT92: battery-powered, 2 x 1.5 V AA Alkaline cells
- Shipping and Storage Temperature (Max): 50 °C
- Shipping and Storage Temperature (Min): -20 °C
- Switch Action: SPST
- UPC: 775264100055
- Country of Origin: MX
- Category: RedLINK Accessories
