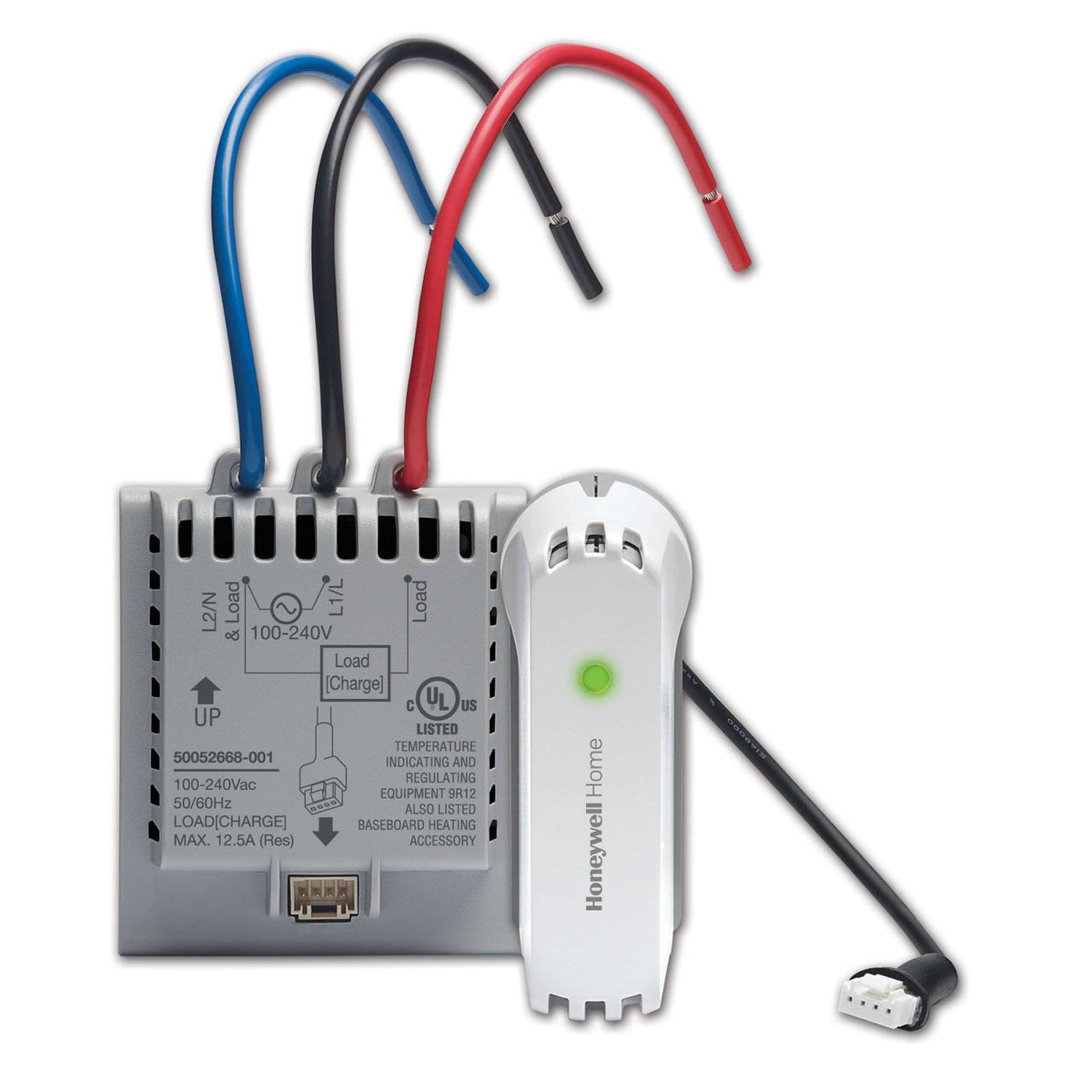

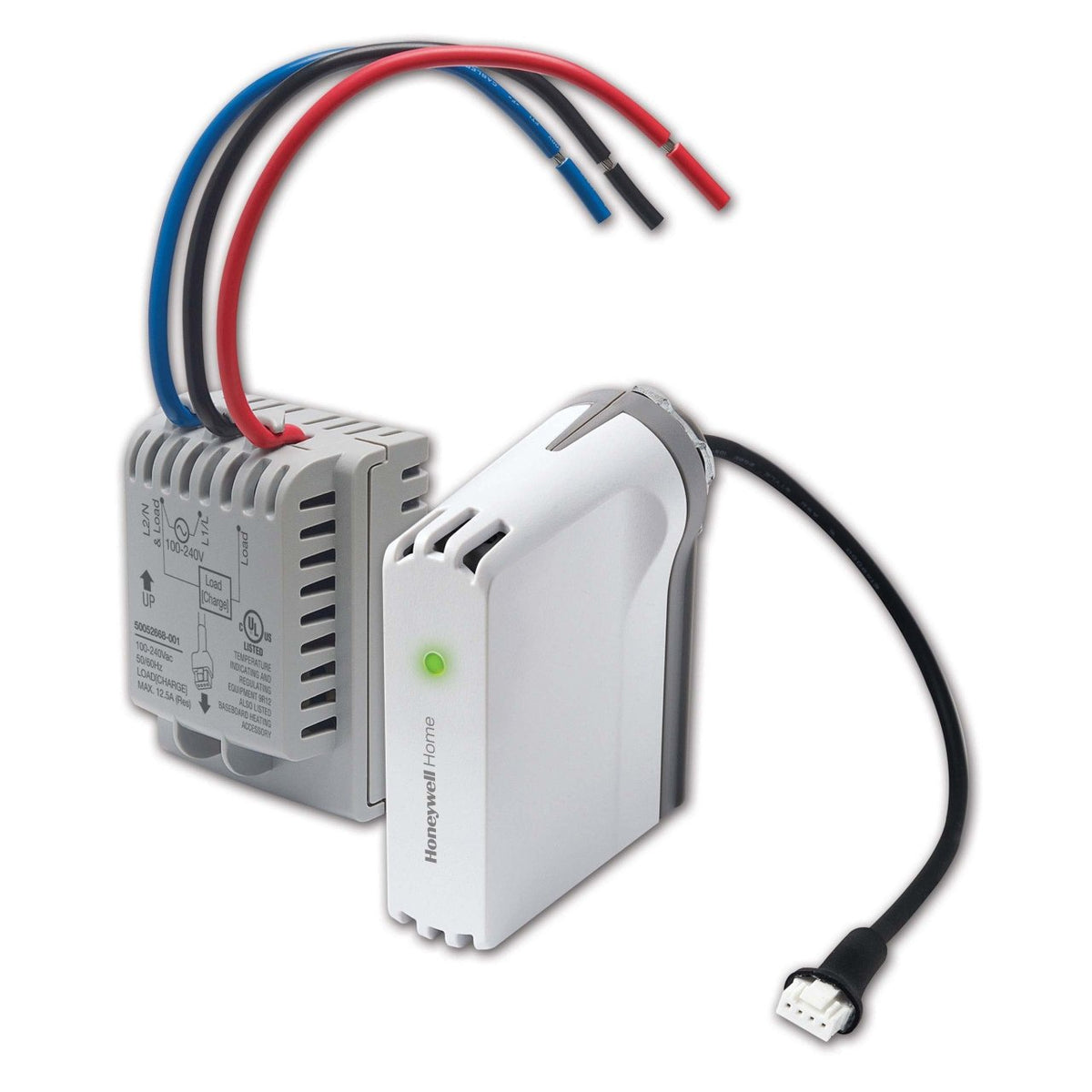

Honeywell Home TLM1110R1000/U Wireless Line Voltage Equipment Interface Module, RedLINK, 100–240V

Wireless line voltage equipment interface module, RedLINK enabled, for electric baseboard, convectors, and fan-forced heaters, 100–240V, 12.5 A max (resistive).

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: TLM1110R1000/U
• Thermostat Type: Line Voltage, RedLINK, Communicating, Digital
• Smart Home Integration: No
• Display Type: LCD Screen
• Display Size: 7.27 sq in
• Touchscreen: No
• Modes of Operation: Heat
• Alerts and Reminders: Filter Change 1, Filter Change 2, EAC Cell, EAC Pre-filter, EAC Post-filter, Vent Core, Vent Filter, UV Bulb 1, UV Bulb 2, Humidifier Clean Tank, Humidifier Pad (through app), Dehumidifier Filter
• Battery Type: Alkaline
• Power Source: Hardwired
• Frequency: 50 Hz, 60 Hz
• Battery Size: AA
• Warranty: 3 Years
• Includes: Electrical Heat Equipment Interface, White and light almond antenna covers
• For Use With: YTL9160AR1000 EConnect™ thermostat kit
• WiFi: No
• Z-Wave: No
• Z-Wave Specifications: Not Applicable
• RedLINK: Yes
• Color: Gray
• Ambient Operating Temperature (Max): 140 °F, 60 °C
• Ambient Operating Temperature (Min): -4 °F, -20 °C
• Ambient Relative Humidity (Max): Thermostat: 90% RH non-condensing, EIM: 95% RH non-condensing
• Ambient Relative Humidity (Min): Thermostat: 5% RH non-condensing, EIM: 5% RH non-condensing
• Compatible Sensor: Outdoor Temperature Sensor
• Mounting Type: Vertical Mount
• Switch Action: SPST
• UPC: 085267914536
• Country of Origin: MX
• Category: RedLINK Accessories
