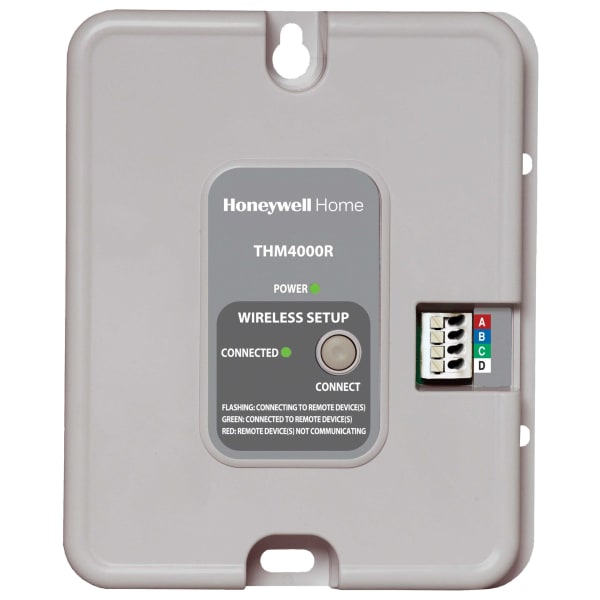

Honeywell Home THM4000R1000/U Wireless Adapter for Use With RedLINK®-Enabled Thermostats and TrueZONE® System

The THM4000R1000 is a RedLINK wireless adapter from Resideo (Honeywell Home).

RedLINK is the wireless link Resideo uses between a thermostat and the rest of the system. Instead of pulling a wire from the equipment to every sensor and module, the devices are enrolled to the thermostat or to a wireless adapter and talk to it directly — which is what makes a sensor in a room with no thermostat wire, or an outdoor sensor with no conduit to the attic, a realistic job rather than a demolition project.

Enrolment is the step that decides whether it works. Each device has to be added to the system at the thermostat or the adapter; a RedLINK device that has not been enrolled is inert, and one enrolled to the wrong system stays enrolled until it is cleared.

The adapter is the piece that gives a system a RedLINK radio of its own. It mounts near the equipment or on the duct and becomes the point every wireless device enrols to — sensors, remote modules, portable comfort controls.

One per panel: One adapter per zone control panel, HZ322 or HZ432 TrueZONE panel. On a multi-panel job, count the adapters accordingly.

Goes with: HZ322, HZ432.

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: THM4000R1000/U
• Type: RedLINK wireless adapter
• Operating temperature: -40 °F to 165 °F
• Dimensions: 5 9/16 in. high x 4 3/8 in. wide x 1 1/4 in. deep
• Terminals: A, B, C, D
• Operation: One adapter per zone control panel, HZ322 or HZ432 TrueZONE panel
• UPC: 085267329538
• Category: RedLINK Accessories
