Description

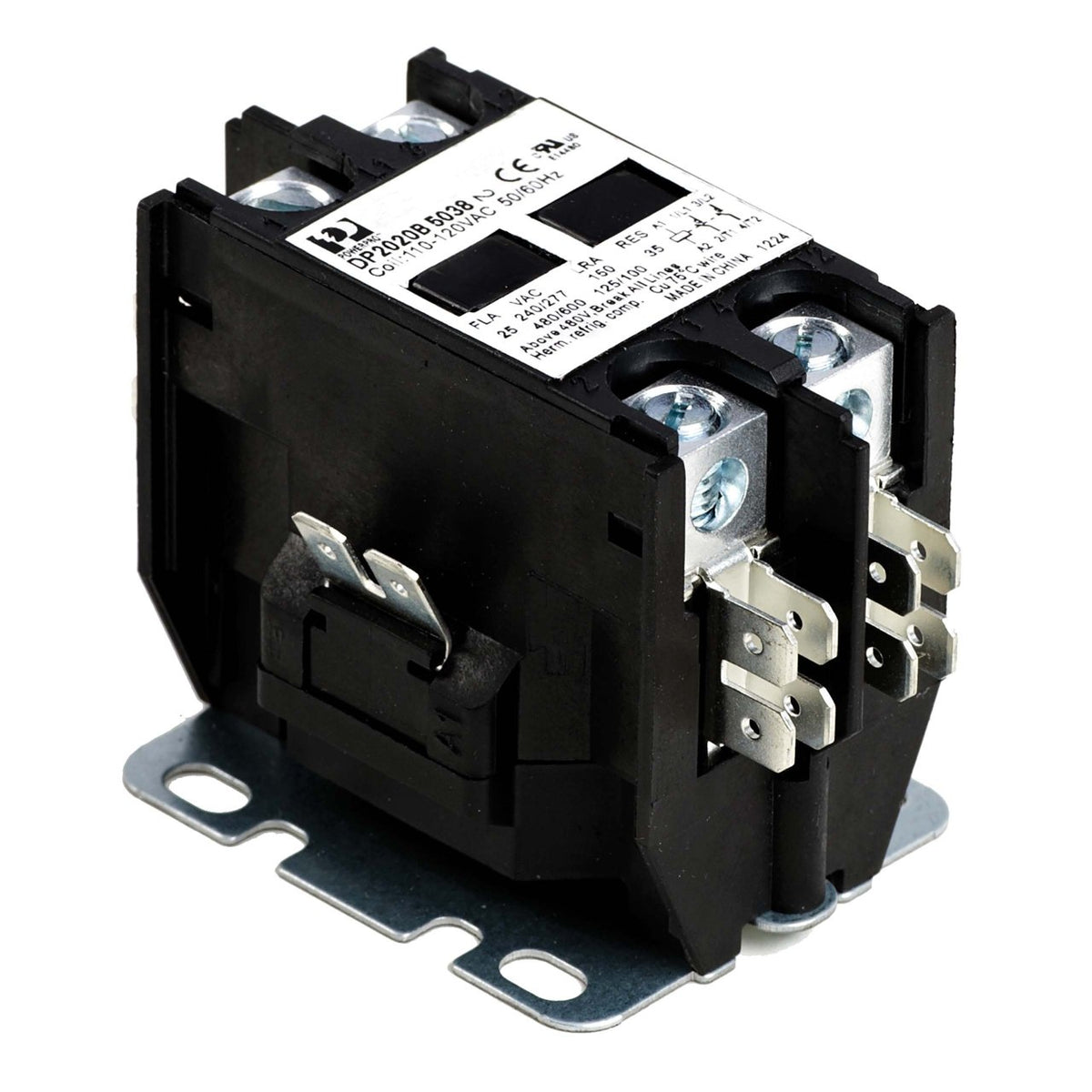

A2L compliant definite purpose contactor.
Features
- Compliant with A2L refrigerants. Meets ARI-780 Standard at started ratings (500,000 cycle mechanical life, 200,000 cycle electrical life and 10,000 cycle recycle life); the most demanding ARI requirement
- Silver cadmium oxide contacts provide long life under demanding duty cycles
- Low profile design allows for more wiring room
- Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: DPL1025A5006/U
- Application: PowerPro Definite Purpose Contactor
- Approvals and Standards: UL Recognized Component: File No. E220475/ E59779, Guide No. LZGH2, LZGH8
- Coil Rating Voltage: 24 V ac
- Coil Connection Size: 1/4 in
- Coil Connection Type: Quick Connect
- Number of Poles: 1 Pole with shunt
- Operating Frequency: 50 Hz, 60 Hz
- Electrical Connection Type: Box lug w/ quad .250'' quick connect terminals
- Switch Action: SPST
- Ambient Operating Temperature (Min): -13 °F, -25 °C
- Ambient Operating Temperature (Max): 158 °F, 70 °C
- Product Height: 2.3 in, 58 mm
- Product Width: 3.2 in, 81 mm
- UPC: 194159018365
- Country of Origin: CN
- Category: Contactors
