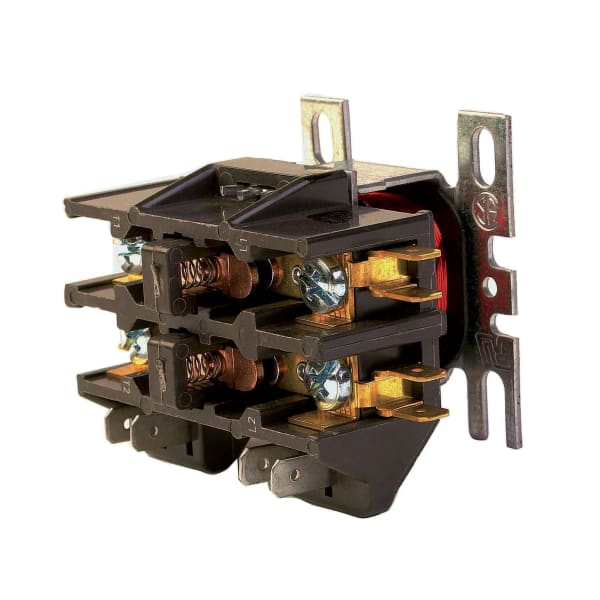

Resideo DP2040A1003/U 24C Vac 2 Pole Economy Definite Purpose Contactor

Item #: HONE-DP2040A1003/U
Mfr. part #: DP2040A1003/U
UPC: 085267617178

Key specifications

Frequency50 Hz; 60 Hz
Temperature Rating-4 F to +149 F
SwitchingDPST
Poles2
Contact Connection1/4 in. quick-connects

View all specifications

$22.23

Ships from Seattle, WA
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 0.54 lb
Box size: 3.6 × 2.7 × 2.5 in

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Resideo
Manufacturer part #	DP2040A1003/U
Frequency	50 Hz; 60 Hz
Electrical Connections	#10-32 combination head screws
Application	Economy Definite Purpose Contactor
Dimensions	2.37 in. high x 3.3 in. wide x 2 in. deep
UL	Component Recognized: File No. 14480, Guide No. NLDX2
CSA	Certified: File No. LR6535
Temperature Ratings (F)	-4 F to +149 F
Switching	DPST
Contact Ratings (AFL)	40 A @ 240/277 Vac, 480 Vac, 600 Vac
Contact Ratings (resistive)	50 A @ 240/277 Vac, 480 Vac, 600 Vac
Poles	2
Contact Connections (coil)	1/4 in. quick-connects
Coil Ratings Voltage	24 Vac
UPC	085267617178

DP2040A1003 has been discontinued by the manufacturer (2025-08). Direct replacement: DPL2040A1003 - 24C Vac 2 pole Definite Purpose Contactor (40 A).

The DP2040A1003 is a definite purpose contactor from Resideo (Honeywell Home), rated 40 amps and built with 2 poles and a line voltage coil. It is the switch that lets a low-power control circuit start a compressor, a condenser fan, or an electric heat bank.

A definite purpose contactor is sized for one job rather than for general industrial duty, which is why it costs a fraction of a general purpose starter and still carries the inrush of an air conditioning compressor. The coil pulls the contacts closed when the thermostat or control board calls; when the call drops, spring pressure opens them.

Two poles break both legs of a 240 V single-phase supply, which fully isolates the load when the contactor drops out. Specify two poles where the equipment or the local code calls for both legs to open.

The Economy tier is the straight replacement for a failed original on a standard residential unit.

Match poles, coil voltage and amp rating to the contactor you are replacing. A contactor with the right coil but too few poles will run the equipment and leave a leg energized at the unit.
