Description

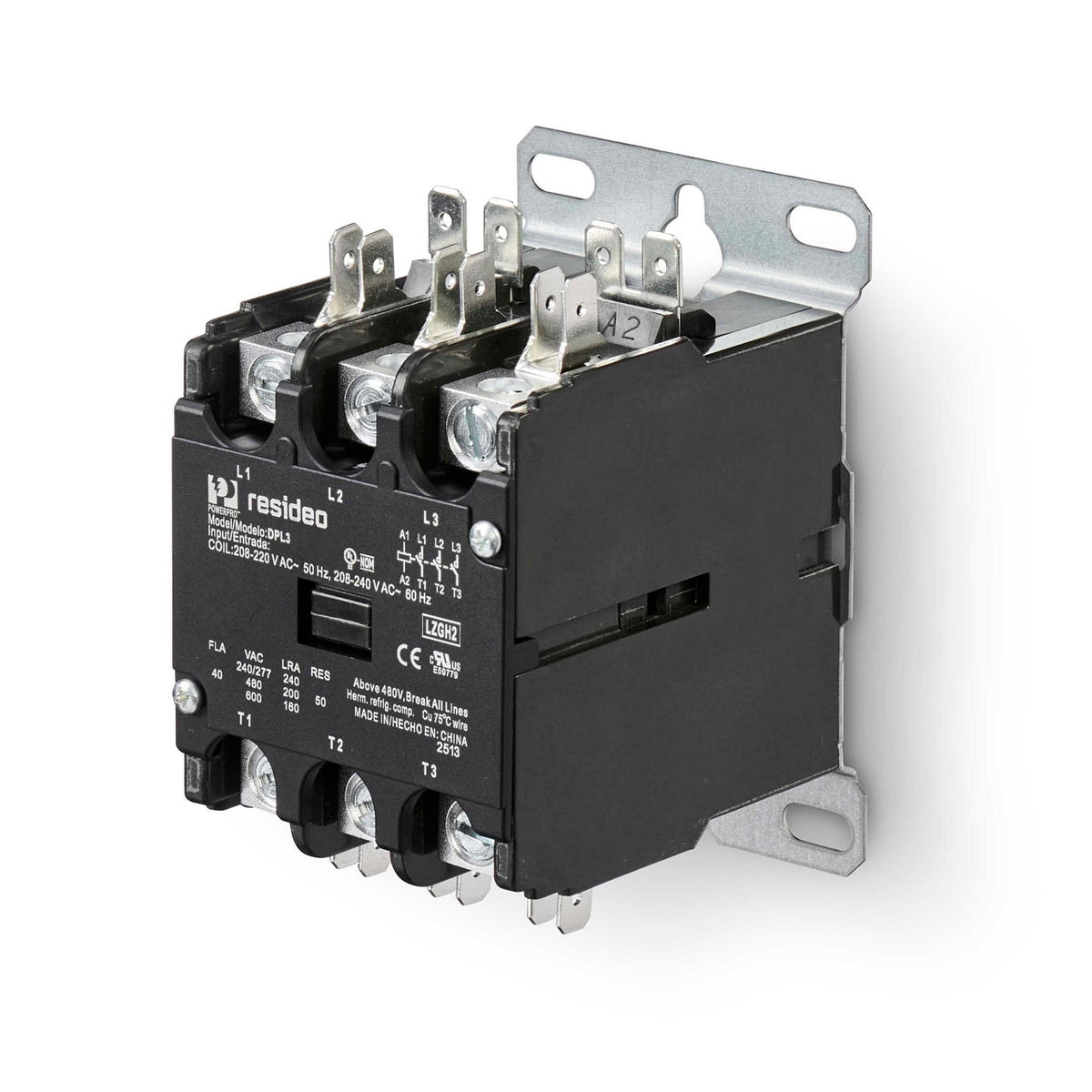

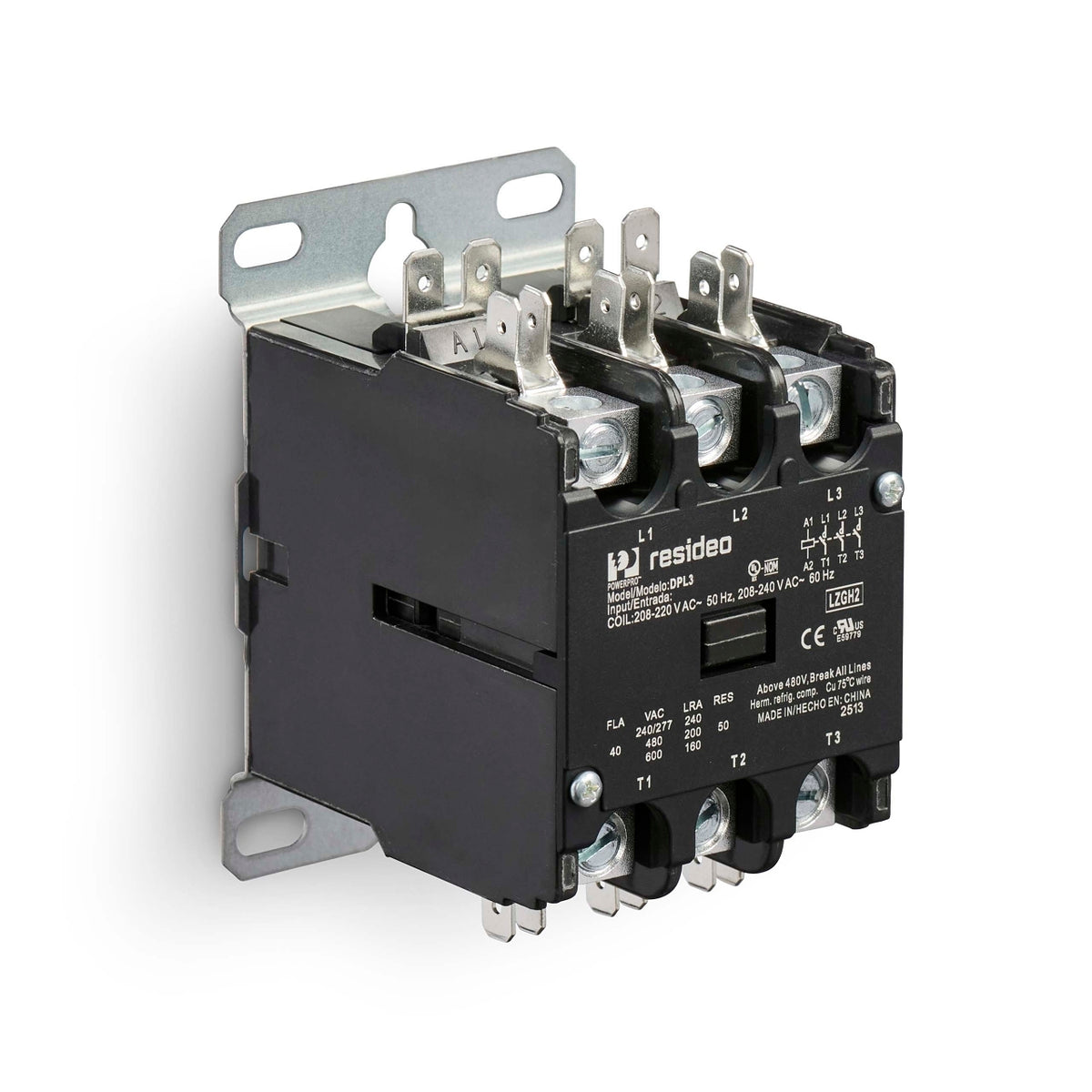

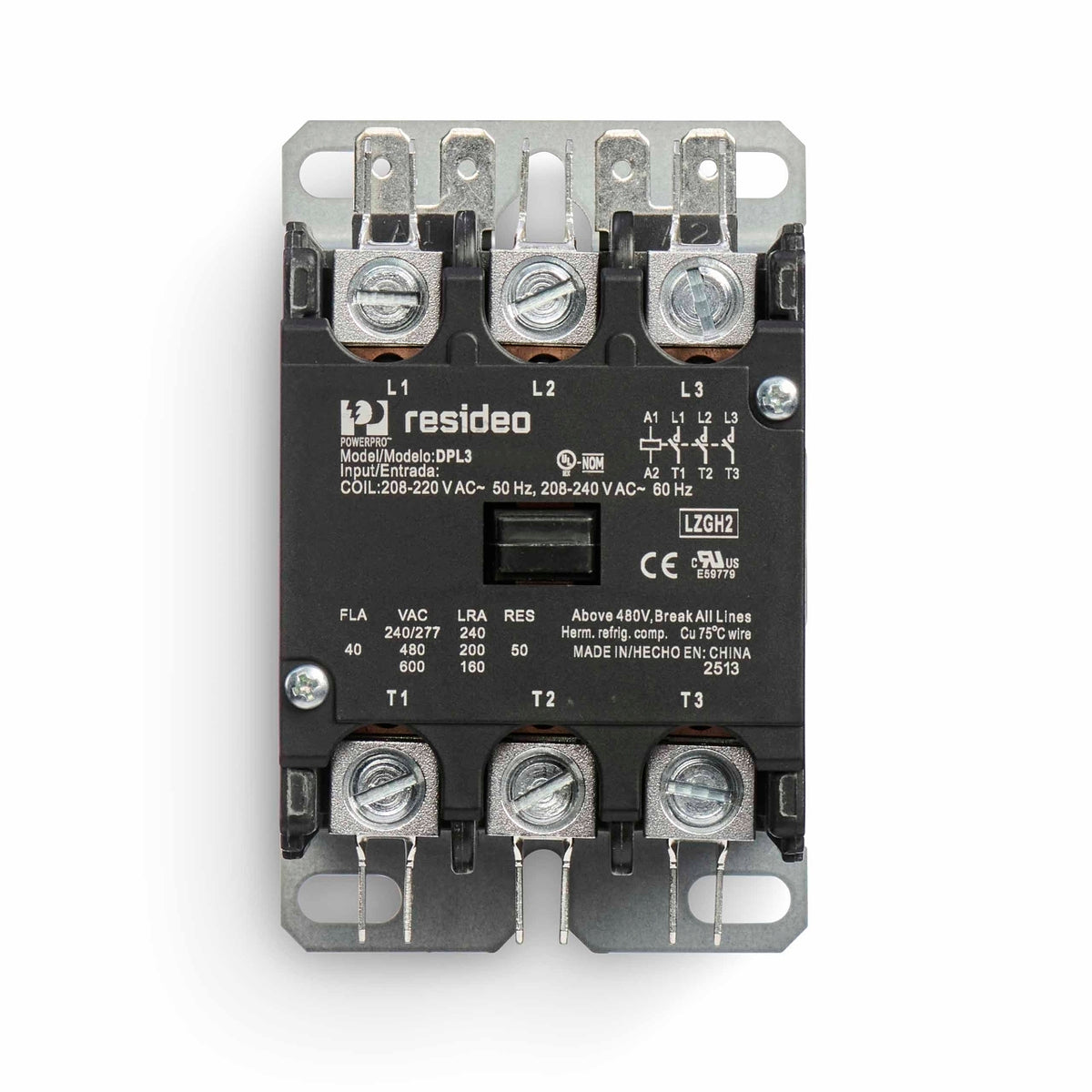

Definite purpose contactor that is A2L compliant.
Features
- Compliant with A2L refrigerants. Meet the most demanding ARI requirement
- ARI-780 Standard
- Class H high temperature insulated coils are standard on 3 pole contactors
- Shrouded coils on 3 pole (25A to 60A) models protect the coil from harsh environment factors
- Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices
- Full array of replacement coils, contact sets and accessories available
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: DPL3030C5002/U
- Application: PowerPro Definite Purpose Contactor
- Approvals and Standards: UL Recognized Component: File No. E220475/ E59779, Guide No. LZGH2, LZGH8
- Coil Rating Voltage: 208-220 V ac, 208-240 V ac
- Coil Connection Size: 1/4 in
- Coil Connection Type: Quick Connect
- Number of Poles: 3 Poles
- Operating Frequency: 50 Hz, 60 Hz
- Electrical Connection Type: Box lug w/ dual .250'' quick connect terminals
- Switch Action: 3PST
- Ambient Operating Temperature (Min): -13 °F, -25 °C
- Ambient Operating Temperature (Max): 158 °F, 70 °C
- Product Height: 3.1 in, 79 mm
- Product Width: 3.62 in, 92 mm
- UPC: 194159018044
- Country of Origin: CN
- Category: Contactors
