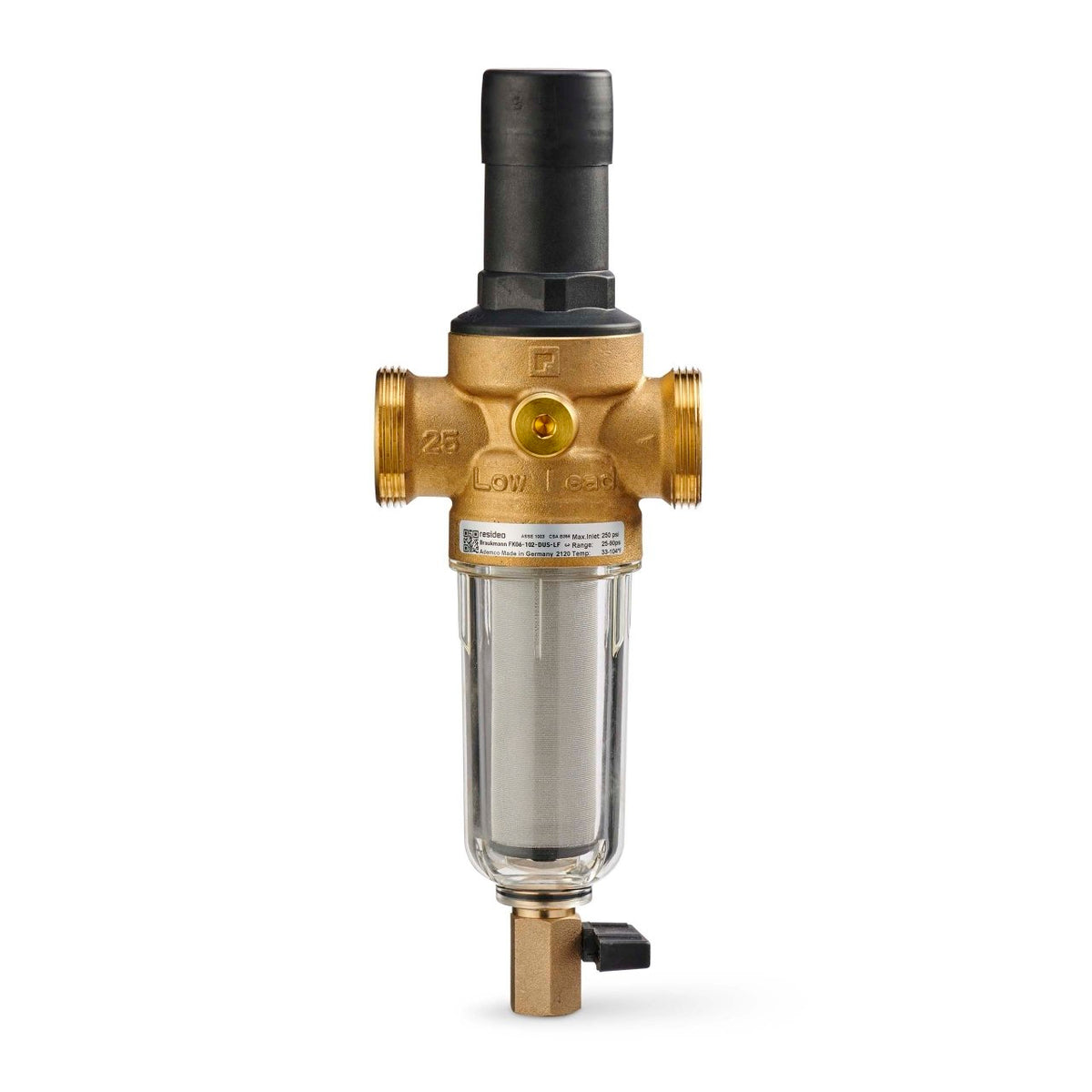

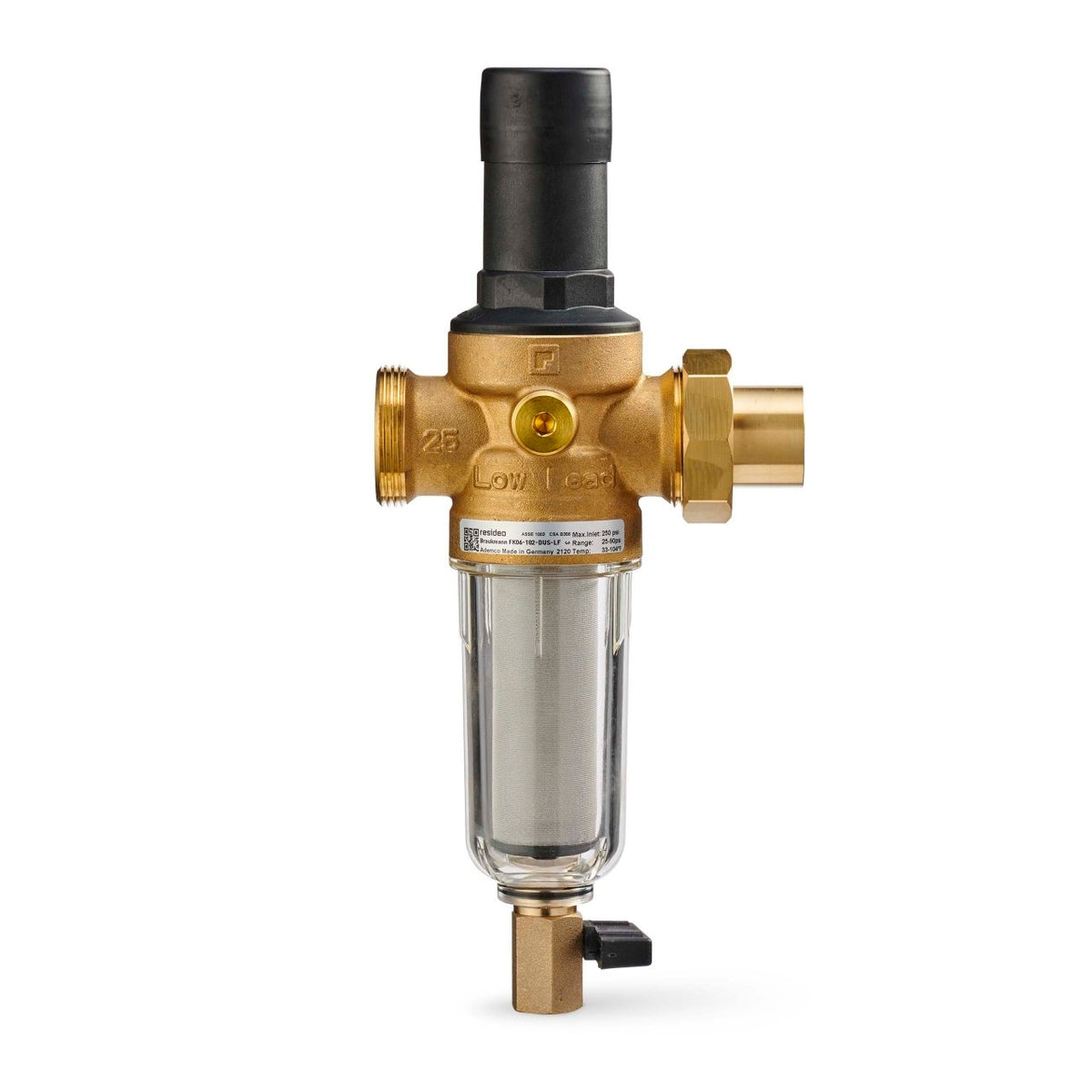

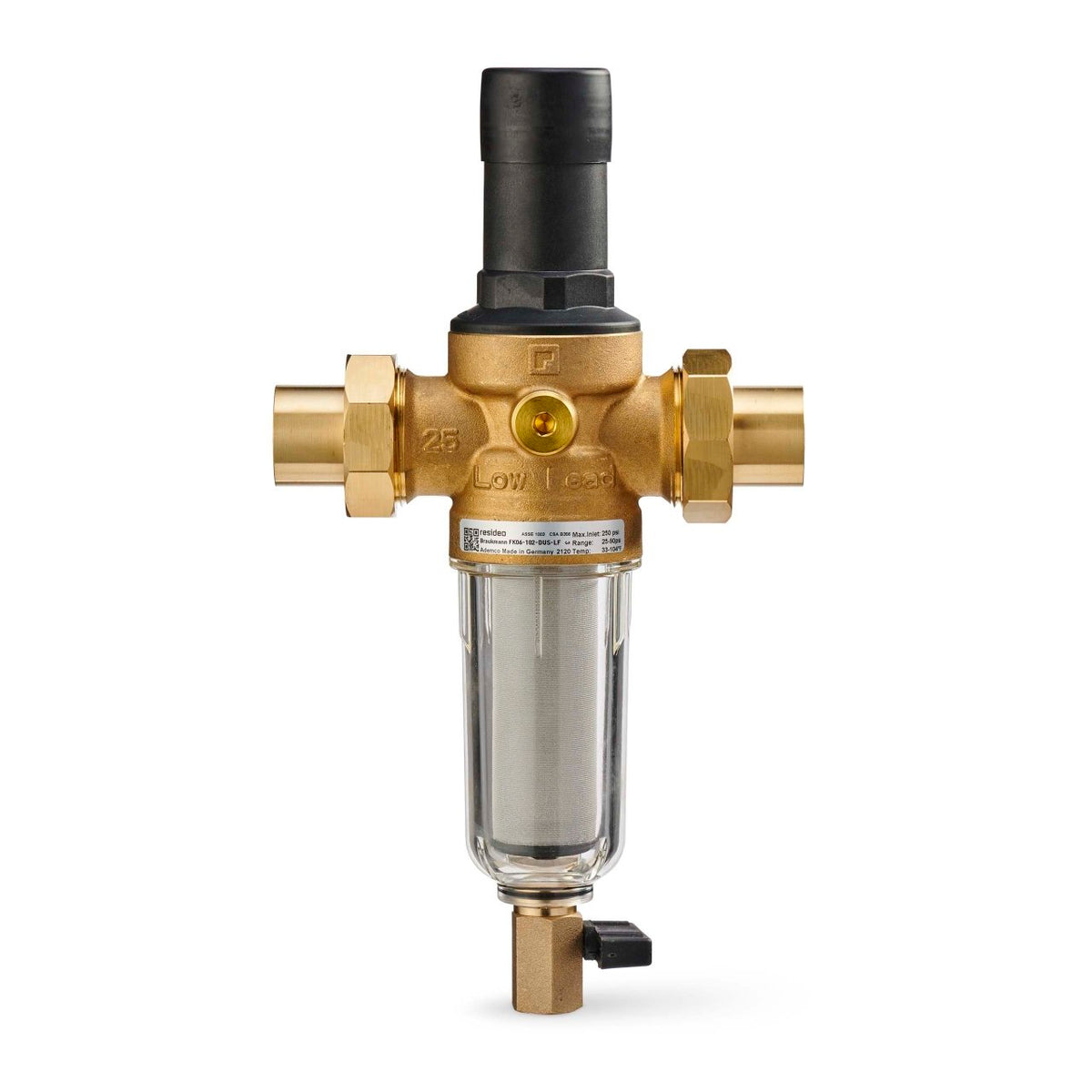

Resideo FK06-102-DUS-LF FK06 DialSet Lead Free Pressure Reducing Valve, 1 in, DUS

1 in FK06 DialSet lead free pressure reducing valve, DUS version.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: FK06-102-DUS-LF
• Accessories: K06U1119, ZR06F
• Ambient Operating Temperature (Min): 33°F, 1 °C
• Ambient Operating Temperature (Max): 140°F, 60 °C
• Approvals and Standards: ASSE 1003 Listed, CSA Certified, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant
• Color: Metallic, Clear
• Connection Size: 1 in
• Connection Type: Double Union Sweat
• Differential Pressure (Min): 14.5 psi, 99.97 kPa
• Domestic Hot Water: Valve
• Filter Mesh Size: 50 micron
• Inlet Pressure (Max): 250 psi, 1723.69 kPa
• Lead Free: Yes
• Media Temperature (Min): 33°F, 1 °C
• Media Temperature (Max): 140 °F, 60 °C
• Nominal Diameter: DN25
• Number of Connections: 2
• Outlet Pressure (Min): 25 psi, 172.37 kPa
• Outlet Pressure (Max): 90 psi, 620.53 kPa
• Preset Outlet Pressure: 60 psi, 414 kPa
• Pressure Reducing Ratio: 10:1 Maximum
• Product Height: 11.56 in, 293 mm
• Product Length: 6.53 in, 166 mm
• Product Width: 6.53 in, 165.89 mm
• Replacement Parts: D06FA-1B, AS06-1C, 0901499
• Valve Body Material: Brass
• Valve Body Pattern: Straight Through
• Warranty: 5 years
• Application: Potable Water Pressure Regulation and Irrigation
• Controlled Media: Drinking Water
• UPC: 085267461573
• Country of Origin: DE
• Category: Water Filters
