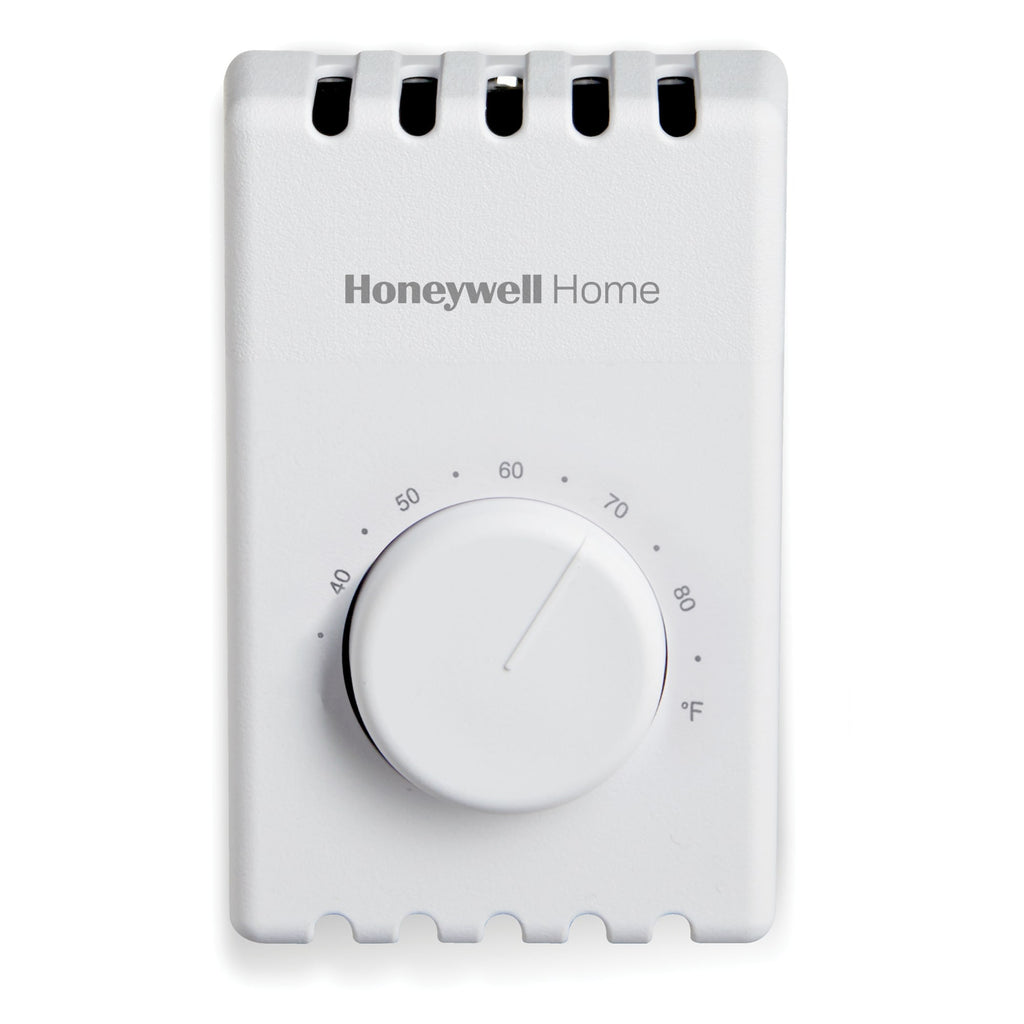

Resideo T410A1013/U Line Voltage Electric Heat Thermostat, Fahrenheit, Premier White

Resideo T410A1013/U is an economical mechanical, non-programmable electric heat thermostat in Premier White. It gives reliable line voltage control of resistive-rated electric heating equipment.

It works with a simple twist: the snap-action control makes and breaks the circuit as the temperature rises or falls. The thermostat is easy to install and comes with 6-inch color-coded leads. It is CSA and UL listed, has a temperature accuracy of 2°C and carries a 1-year warranty.

Because this is a line voltage control, confirm the heater is a resistive-rated electric load such as a baseboard, convector or fan-forced heater. It is not Wi-Fi or smart-home capable. Check the product data sheet for electrical ratings before ordering.

Specifications

• Brand: Resideo
• Manufacturer Part #: T410A1013/U
• Color: Premier White
• Thermostat Type: Mechanical, Non-programmable
• Temperature Scale: Fahrenheit
• Application: Electric Baseboards, Convectors and Fan-forced Heaters (Resistive Rated Loads)
• Leads: 6 in. color-coded
• Temperature Accuracy: 2°C
• Approvals: CSA Listed (File No. LR1322); UL Listed (File No. E4436, Guide No. XAPX)
• Wi-Fi: No
• Warranty: 1 Year
• UPC: 085267088275
• Category: Line Voltage Thermostats

Documents

• Installation Instructions for 272804A with T410, T4398, and T4098 Thermostats (English) (PDF)
• Installation Instructions for T410A,B Line Voltage Electric Heat Thermostats (English) (PDF)
• INSTRUCCIONES DE INSTALACIÓN - Termostatos de calefacción eléctrica de voltaje de línea T410A, B (Spanish) (PDF)
• Product Data for T410A, T410B Electric Heat Thermostats (English, French) (PDF)

See also: line voltage thermostats.
