Resideo Brush Gold Baseboard Electric Heat Thermostat

Roll over image to zoom in Click on image to zoom

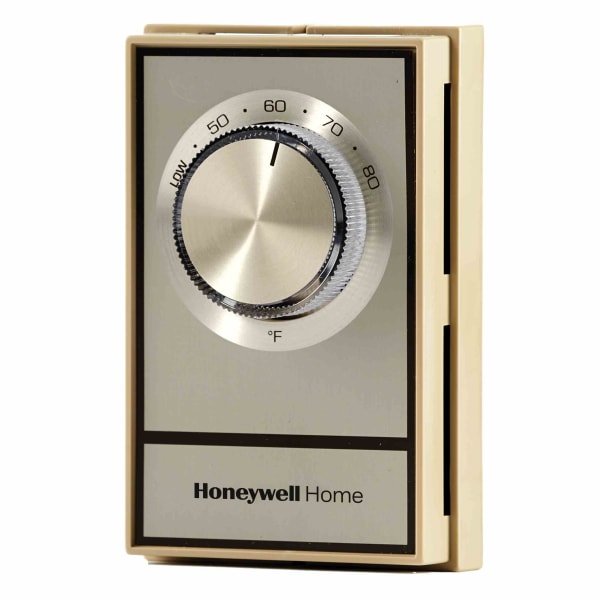

Resideo T498B1512/U Brush Gold Baseboard Electric Heat Thermostat

Name: Resideo T498B1512/U Brush Gold Baseboard Electric Heat Thermostat
Brand: Resideo
SKU: HONE-T498B1512/U
Price: 63.27 USD
Availability: InStock

ResideoSKU: HONE-T498B1512/U

Price:

$63.27

Stock:

In stock (156 units), ready to be shipped

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Current replacement

Honeywell Home TL8230A1003/U Double-Pole Line-Voltage Programmable Th... $128.70

Add

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 0.52 lb
Box size: 4.8 × 3.25 × 2.88 in

Supply Voltage	120 Vac; 208 Vac; 240 Vac; 277 Vac
Frequency	60 Hz
Electrical Connections	6 in. (150 mm) copper leadwires, suitable for connecting to aluminum wiring if approved CO/ALR solderless connectors are used.
Electrical Ratings	Non-inductive resistive 22A at 120/208/240 Vac. 19A at 277 Vac.
Ambient Temperature	40 F to 85 F
Mounting	Vertical
Application	Electric baseboards, convectors and fan forced heaters (resistive rated loads).
Includes	Positive OFF, Range stops, locking cover and extra knob decal for recalibration
Dimensions	4 9/16 in. high x 2 7/8 in. wide x 1 15/16 in. deep
UL	Listed; File No. E4436, Guide No. XAPX
CSA	Listed: File No. LR1322
Stages	1 Heat
Color	Brush gold finish
Sensor Element	Bimetal
Accuracy (F)	1 F
Differential Temperature (F)	3 F
Switching Action	DPST
Setting Temperature Range (F)	40 F to 80 F
External Sensors Available	Outdoor Sensor optional

Product Data for T498A,B Electric Heat Thermostats (English) PDF ↗

T498B1512 has been discontinued by the manufacturer (2026-04). Suggested replacement: TH114-A-240D-B - Non-Programmable Line Volt Thermostat for Electric Heating (DPST).

The T498B1512 is a line-voltage thermostat from Resideo (Honeywell Home) for electric resistance heat — baseboard, convectors, radiant ceiling or panel heaters.

Line voltage is the distinction that matters here. A low-voltage thermostat switches a 24 V control circuit and lets a furnace or boiler do the work; a line-voltage thermostat carries the full heater current itself. They are not interchangeable, and a low-voltage stat wired to a baseboard circuit fails immediately.

Match the voltage and the pole configuration to the heater circuit, and check the amperage of the heater against the rating of the thermostat. A thermostat sized below the load is the most common cause of a line-voltage stat failing in its first season.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: T498B1512/U
Type: Line-voltage thermostat
Shipping weight: 0.5 lb
Category: Line Voltage Thermostats

Full Specifications

Application	Electric baseboards, Convectors and fan forced heaters (resistive rated loads).
Thermostat Type	Non programmable
Approvals and Standards	CSA Listed: File No. LR1322, UL Listed; File No. E4436, Guide No. XAPX
Stages	1 Heat
Smart Home Integration	No
Touchscreen	No
Modes of Operation	Heating
Program Type	Manual / Not Programmed
Energy Star Certified	No
Frequency	60 Hz
Warranty	1 Year
Includes	Positive OFF, Range stops, Locking cover, Extra knob decal for recalibration
WiFi	No
Z-Wave	No
RedLINK	No
Color	Gold
Sensor Type	Bimetal
Ambient Operating Temperature (Max)	85 °F, 27°C
Ambient Operating Temperature (Min)	40 °F, 5 °C
Differential Temperature	3 °F, 2 °C
Demand Response	No
Temperature Accuracy	2, 1
Electrical Connection Type	6 in Copper Leadwires, 150 mm Copper Leadwires
Mounting Type	Single Gang Electrical Box, Vertical Mount
Set point Temperature (Max)	80 °F, 25 °C
Set point Temperature (Min)	40 °F, 5 °C
Switch Action	DPST
Mounting Location	J-Box
Product Height	4.56 in, 116 mm
Product Width	2.88 in, 73 mm
Product Depth	1.9375 in, 33 mm
