Description

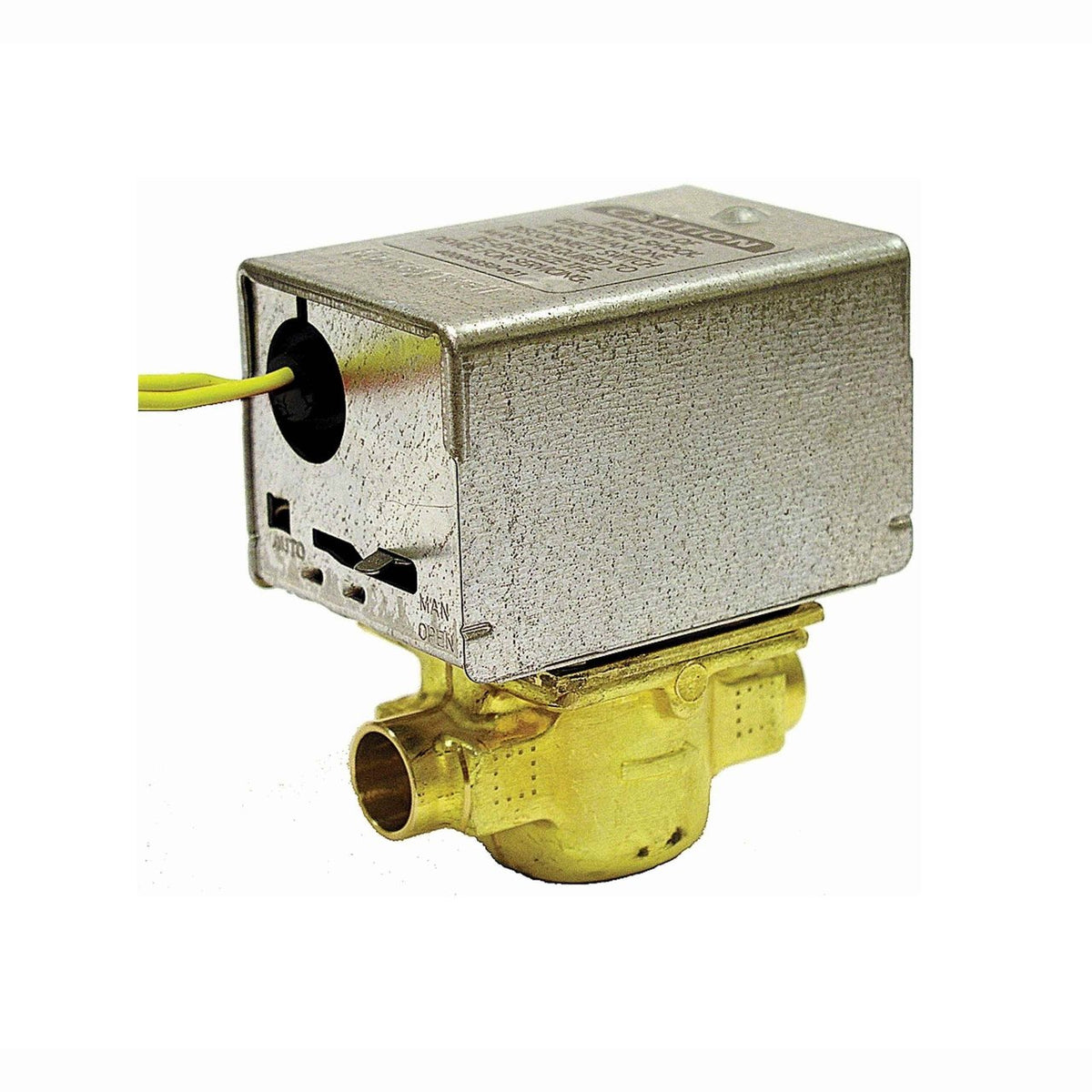

120 V/60 Hz zone valve with 1/2 in sweat connection.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: V4043E1003/U
- Valve Ball Material: EPDM
- Approvals and Standards: UL Listed: File MH11826
- Color: Brass
- Includes: Manual Opener
- Product Height: 4 in, 102 mm
- Product Length: 2.38 in, 60 mm
- Product Width: 3.69 in, 89 mm
- Warranty: 1 Year
- Ambient Operating Temperature (Max): 125 °F, 52 °C
- Connection Type: Sweat
- Differential pressure for close-off (Max): 20 psi, 138 kPa
- Fail-Safe Operation Type: Spring return to close
- Flow Coefficient: 3.5 Cv, 3 Kvs
- Media Temperature (Min): 40 °F, 5 °C
- Media Temperature (Max): 240 °F, 116 °C
- Actuator Control Signal: Two position
- Actuator Opening Time: 15 seconds
- Static Pressure Rating: 125 psi, 862 kPa
- Valve Body Material: Brass
- Valve Body Pattern: Two-way, Straight Through
- Valve Plug Material: EPDM Rubber Ball
- Valve Seat Material: Brass
- Valve Start Position: Closed
- Valve Stem Material: Stainless Steel
- UPC: 085267103732
- Country of Origin: HU
- Category: 2-Way Zone Valve
