Description

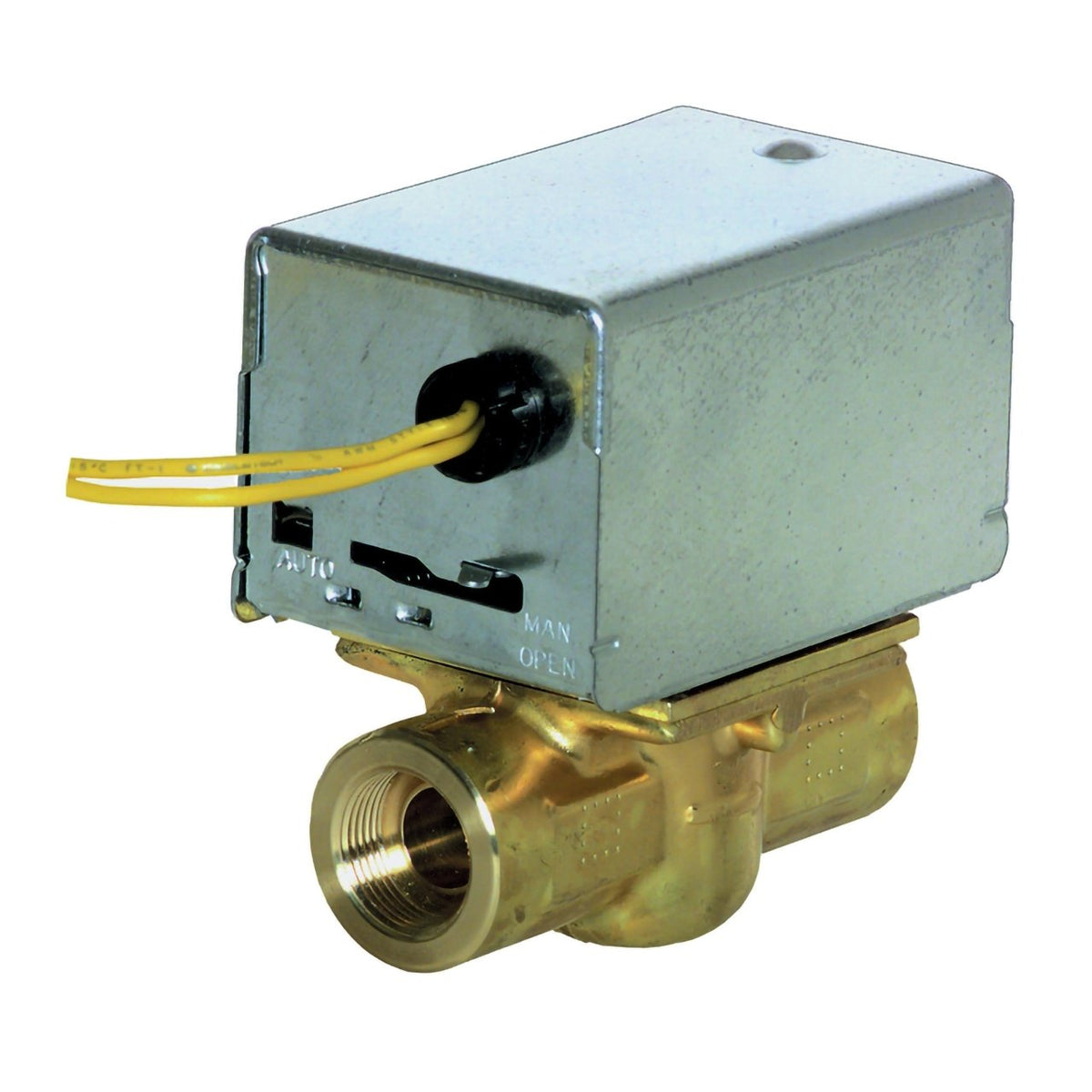

24 V/60 Hz zone valve with 1/2 in inverted flare connection, 3.5 Cv, 18 in lead wires and 300 psi static rating.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: V8043C3310/U
- Valve Ball Material: Buna-N (NBR) Rubber
- Approvals and Standards: CSA Certified: File 1322
- Color: Brass
- Includes: Less Adapters, Manual Opener
- Product Height: 4 in, mm
- Product Length: 2.38 in, mm
- Product Width: 3.63 in, mm
- Warranty: 1 Year
- Ambient Operating Temperature (Max): 125 °F, 52 °C
- Connection Type: Inverted Flare
- Differential pressure for close-off (Max): 20 psi, 138 kPa
- Fail-Safe Operation Type: Spring return to close
- Flow Coefficient: 3.5 Cv; 3 Kvs
- Media Temperature (Min): 50 °F, 10 °C
- Media Temperature (Max): 200 °F, 93 °C
- Actuator Control Signal: Two position
- Actuator Opening Time: 15 seconds
- Static Pressure Rating: 300 psi, 2068 kPa
- Valve Body Material: Brass
- Valve Body Pattern: Two-way, Straight Through
- Valve Plug Material: Buna-N (NBR) Rubber
- Valve Seat Material: Brass
- Valve Start Position: Closed
- Valve Stem Material: Stainless Steel
- UPC: 085267834766
- Country of Origin: HU
- Category: 2-Way Zone Valve
