Description

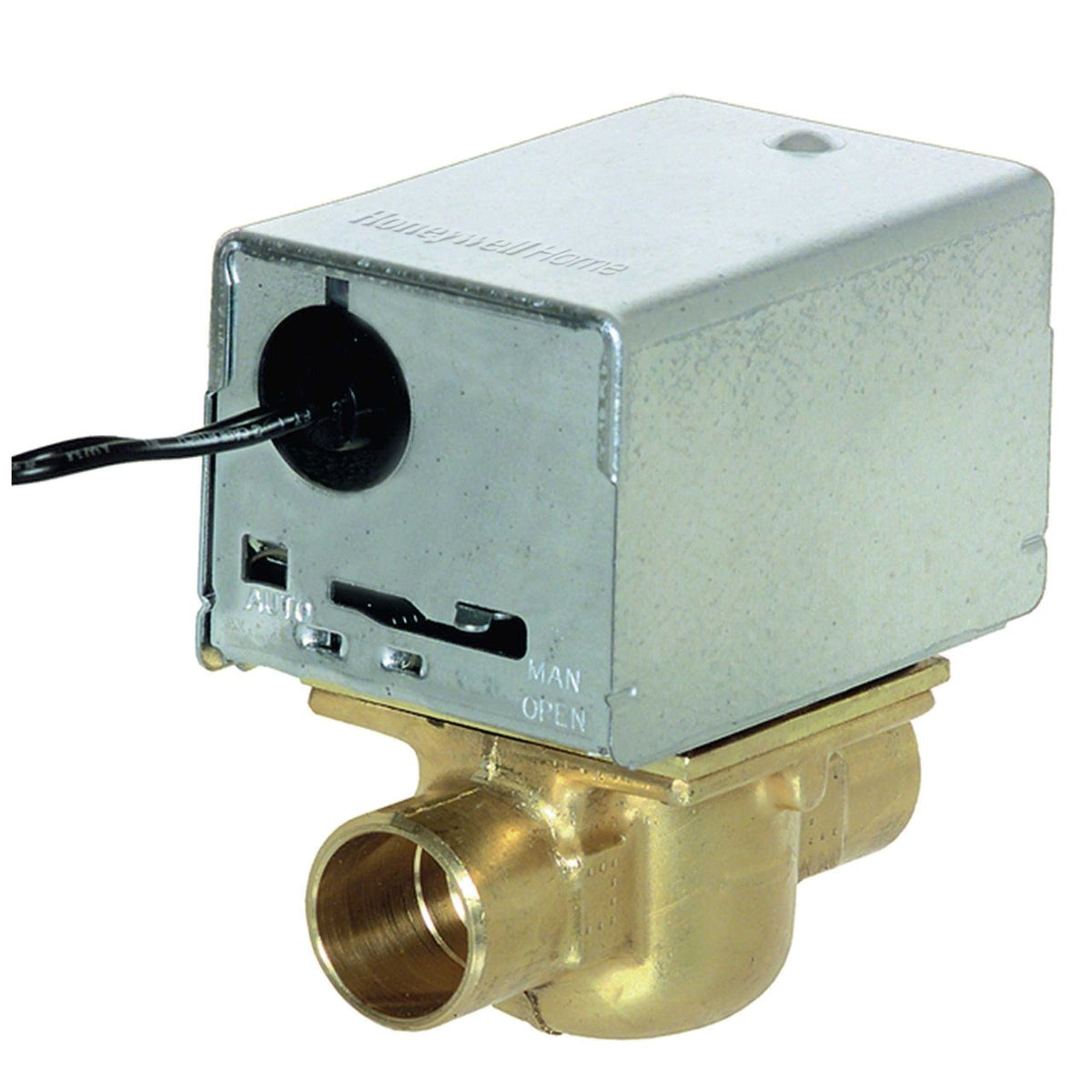

24 V/60 Hz zone valve with 3/4 in sweat connection, 3.5 Cv and 18 in lead wires.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: V8043A1029/U
- Valve Ball Material: Buna-N (NBR) Rubber
- Approvals and Standards: UL Listed: File MH11826
- Color: Brass
- Includes: End switch enclosure, Manual Opener
- Product Height: 4 in, 102 mm
- Product Length: 2.38 in, 60 mm
- Product Width: 3.69 in, 94 mm
- Warranty: 5 years
- Ambient Operating Temperature (Max): 125 °F, 52 °C
- Connection Type: Sweat
- Differential pressure for close-off (Max): 20 psi, 138 kPa
- Flow Coefficient: 3.5 Cv; 3 Kvs
- Media Temperature (Min): 50 °F, 10 °C
- Media Temperature (Max): 200 °F, 93 °C
- Static Pressure Rating: 125 psi, 862 kPa
- Valve Body Material: Brass
- Valve Body Pattern: Two-way, Straight Through
- Valve Plug Material: Buna-N (NBR) Rubber
- Valve Seat Material: Brass
- Valve Start Position: Closed
- Valve Stem Material: Stainless Steel
- UPC: 085267000734
- Country of Origin: HU
- Category: 2-Way Zone Valve
