Honeywell Home V8043E1412/U 3/4 in Press Zone Valve with End Switch, 18 in Lead Wires
Honeywell Home

Honeywell Home V8043E1412/U 3/4 in Press Zone Valve with End Switch, 18 in Lead Wires

Item #
HONE-V8043E1412/U
Mfr. part #
V8043E1412/U
UPC
085267843782
Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.
$179.74
Each
In stock – 1 available
Estimated delivery: –

Usually ships in 1–2 business days.

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 2.6 lb
  • Box size: 7.9 × 4.55 × 3.6 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandHoneywell Home
Manufacturer part #V8043E1412/U
UPC085267843782

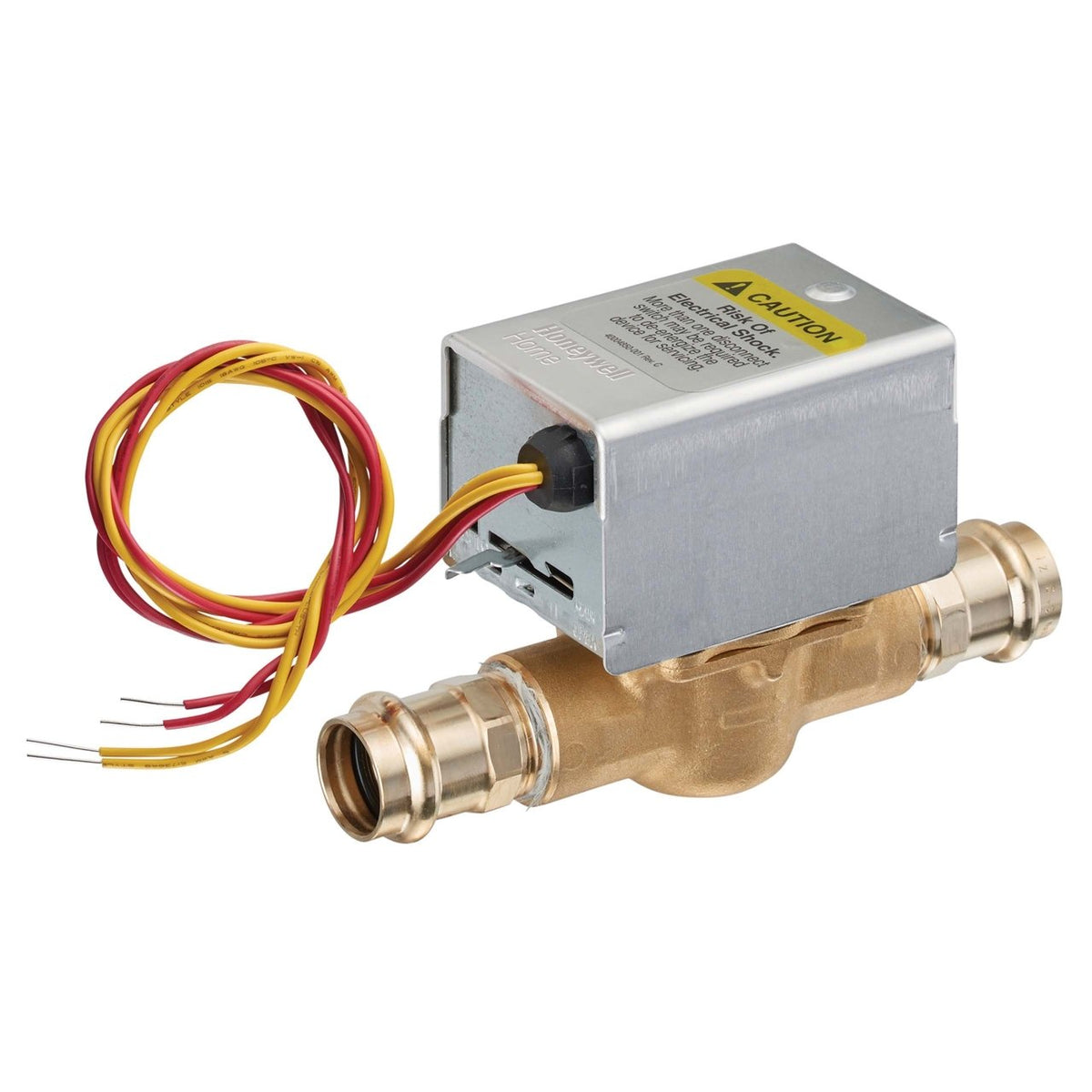

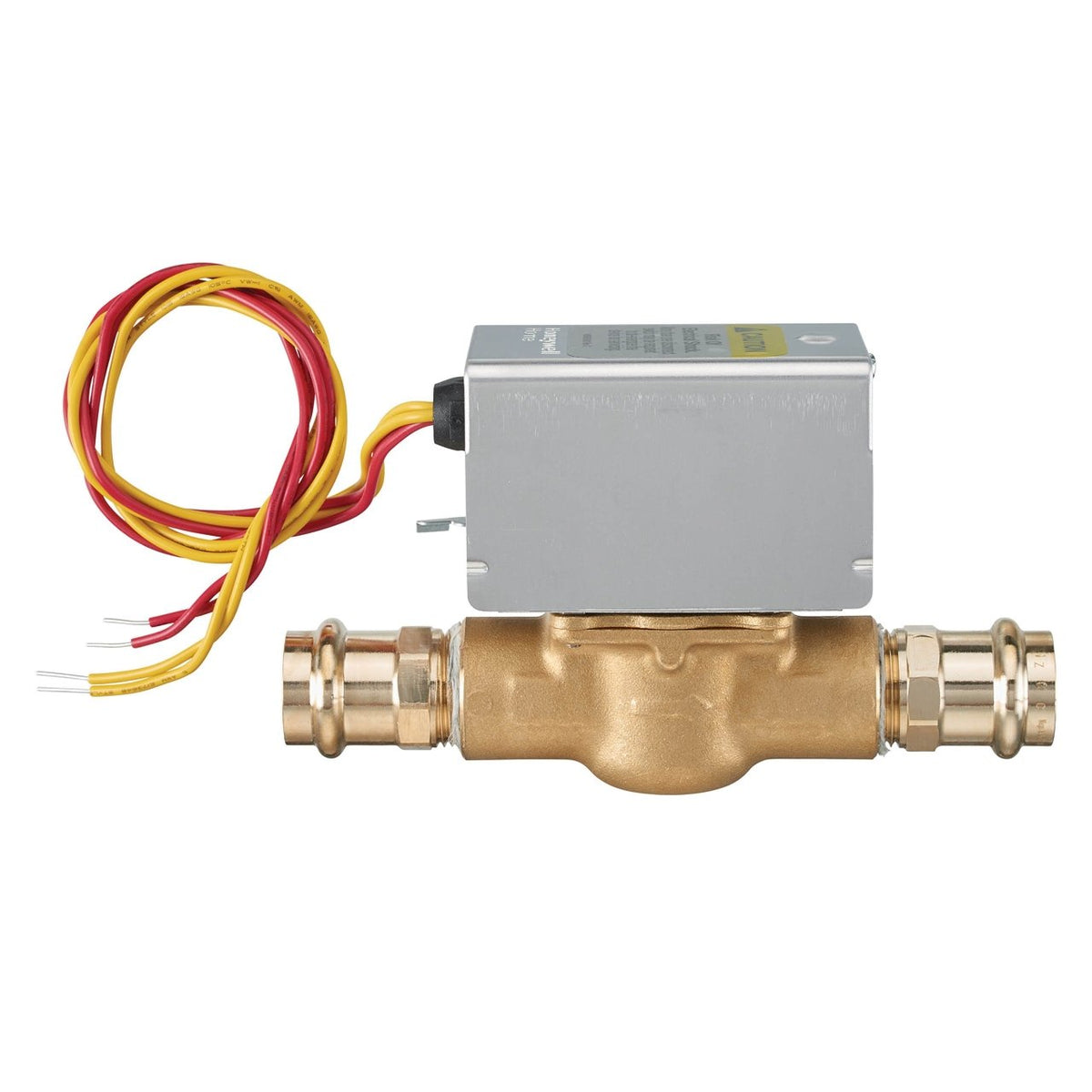

3/4 in press-connection valve with 18 in lead wires and end switch.

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: V8043E1412/U
  • Power Loss Action: Valve Closed
  • Valve Ball Material: Buna-N (NBR) Rubber
  • Approvals and Standards: UL Listed: File MH11826, CSA Certified: File 1322
  • Color: Brass
  • Includes: End switch enclosure, Manual Opener
  • Product Height: 4 in, mm
  • Product Length: 6.78 in, mm
  • Product Width: 2.34 in
  • Warranty: 1 Year
  • Ambient Operating Temperature (Max): 125 °F, 52 °C
  • Connection Type: Pro Press
  • Differential pressure for close-off (Max): 20 psi, 138 kPa
  • Fail-Safe Operation Type: Spring return to close
  • Flow Coefficient: 3.0 Cv; 3 Kvs
  • Media Temperature (Min): 40 °F, 4 °C
  • Media Temperature (Max): 200 °F, 93 °C
  • Actuator Control Signal: Two position
  • Actuator Opening Time: 15 seconds
  • Static Pressure Rating: 120 PSI, 827 kPa
  • Valve Body Material: Brass
  • Valve Body Pattern: Two-way, Straight Through
  • Valve Plug Material: Buna-N (NBR) Rubber
  • Valve Seat Material: Brass
  • Valve Start Position: Closed
  • Valve Stem Material: Stainless Steel
  • UPC: 085267843782
  • Country of Origin: HU
  • Category: 2-Way Zone Valve

Questions about fit or compatibility? Ask our team. We usually reply within one business day.

$179.74
In stock
