Description

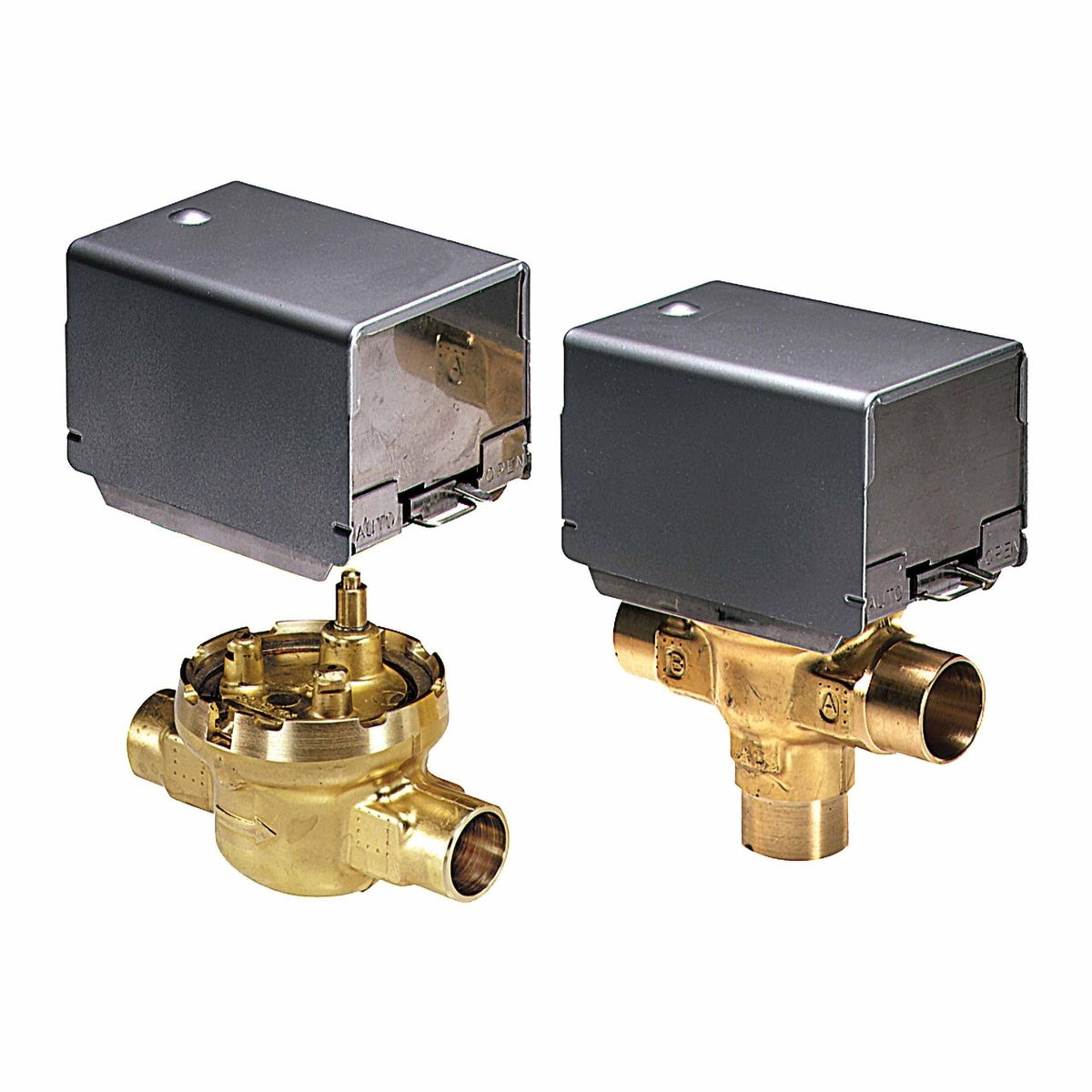

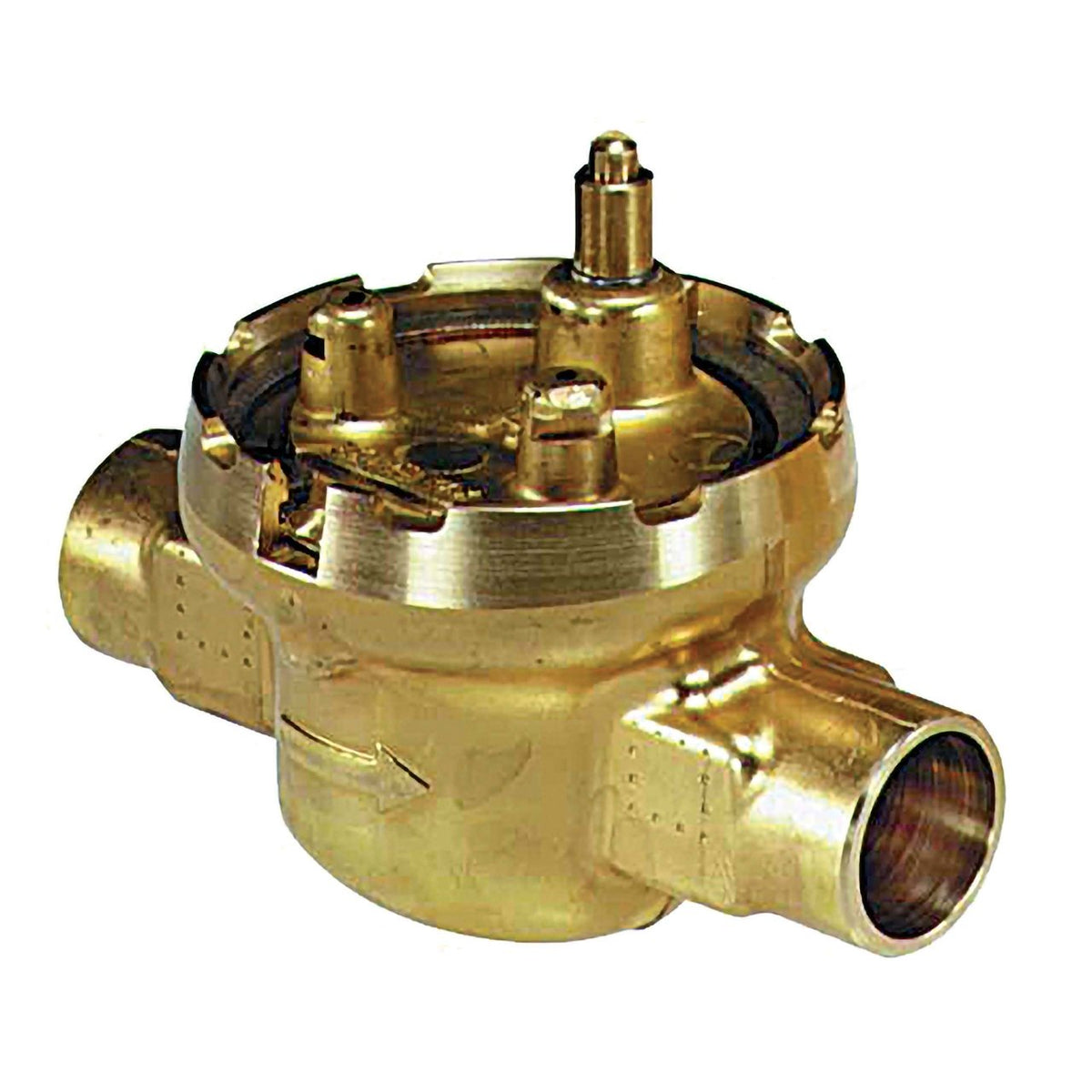

Two-way fan coil valve with 1/2 in NPT connection and 1.0 Cv.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VU53N1041/U
- Valve Ball Material: Buna-N (NBR) Rubber
- Valve Disc Material: Buna-N (NBR) Rubber
- Connection Type: Female NPT
- Differential pressure for close-off (Max): 50 psi, 345 kPa
- Flow Coefficient: 1.0 Cv; 0.9 Kvs
- Media Temperature (Min): 34 °F at 200 °F Fluid, 1 °C at 94°C Fluid
- Media Temperature (Max): 125 °F at 200 °F Fluid, 52 °C at 94°C Fluid
- Operating Pressure (Max): 300 psi, 2000 kPA, PN20
- Valve Body Material: Brass
- Valve Body Pattern: Two-way, Straight Through
- Valve Flow Characteristic: Quick Opening
- Valve Seat Material: Brass
- Valve Start Position: Normally Closed
- Valve Stem Material: Brass
- UPC: 085267831390
- Country of Origin: HU
- Category: Fan Coil Zone Valves
