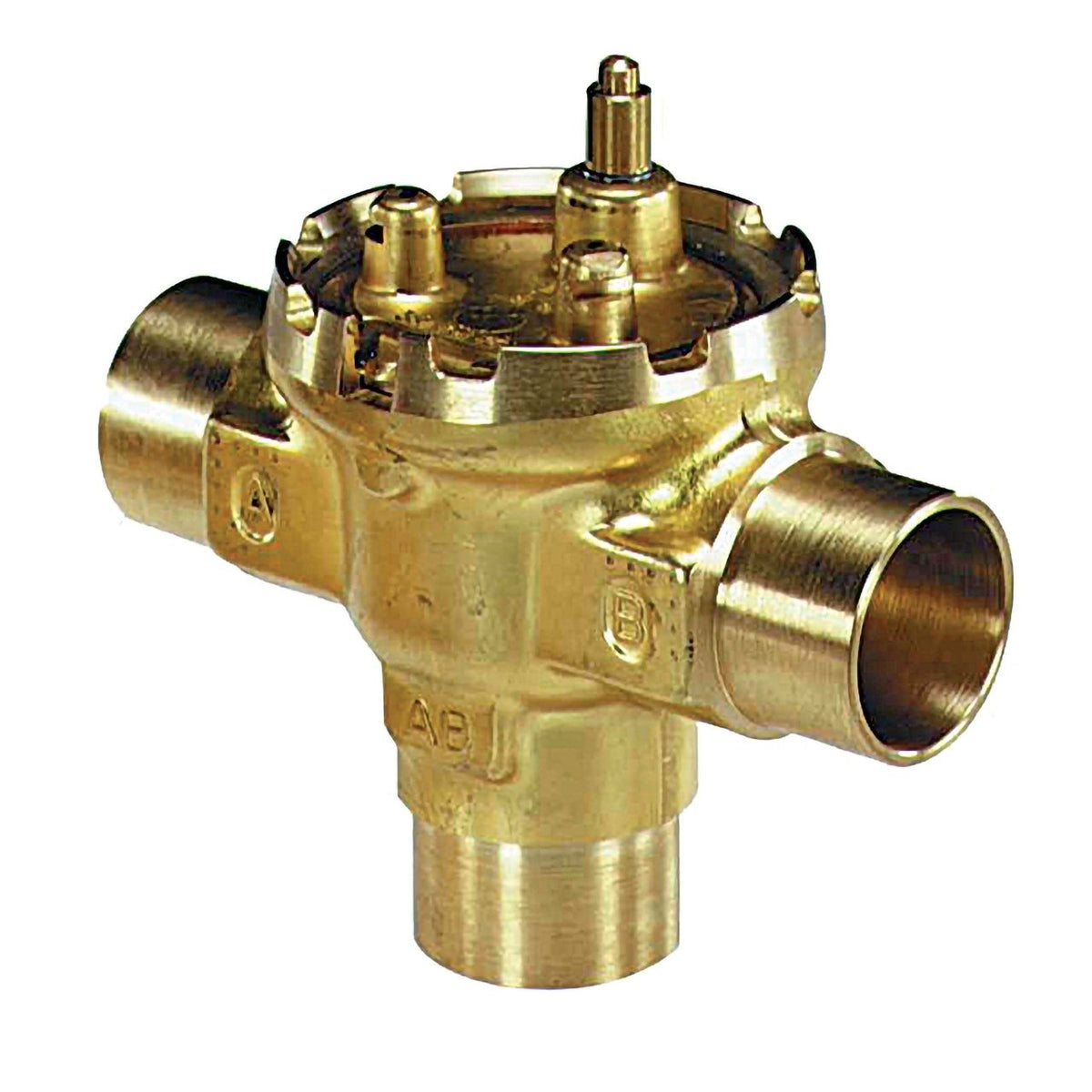

Honeywell Home VU54S2024/U Three-Way Fan Coil Valve, 1 in Sweat, 7.0 Cv - Individually Boxed

Which version do I need? Same part and specifications as VU54S2024/B (bulk pack); only the packaging differs. This VU54S2024/U is individually boxed. See also: Honeywell Home VU54S2024/B Three-Way Fan Coil Valve, 1 in Sweat, 7.0 Cv - Bulk Pack.

Three-way fan coil valve with 1 in sweat connection and 7.0 Cv.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: VU54S2024/U
• Valve Ball Material: Buna-N (NBR) Rubber
• Valve Disc Material: Buna-N (NBR) Rubber
• Product Height: 5.44 in, 138 mm
• Product Width: 2.5 in, 64 mm
• Connection Type: Sweat
• Differential pressure for close-off (Max): 10 psi, 69 kPa
• Flow Coefficient: 7.0 Cv; 6.5 Kvs
• Media Temperature (Min): 34 °F at 200 °F Fluid, 1 °C at 94°C Fluid
• Media Temperature (Max): 125 °F at 200 °F Fluid, 52 °C at 94°C Fluid
• Operating Pressure (Max): 300 psi, 2000 kPA, PN20
• Valve Body Material: Brass
• Valve Body Pattern: Three-way, A-AB-B
• Valve Flow Characteristic: Quick Opening
• Valve Seat Material: Brass
• Valve Start Position: Diverting
• Valve Stem Material: Brass
• UPC: 085267824026
• Country of Origin: HU
• Category: Fan Coil Zone Valves
