Description

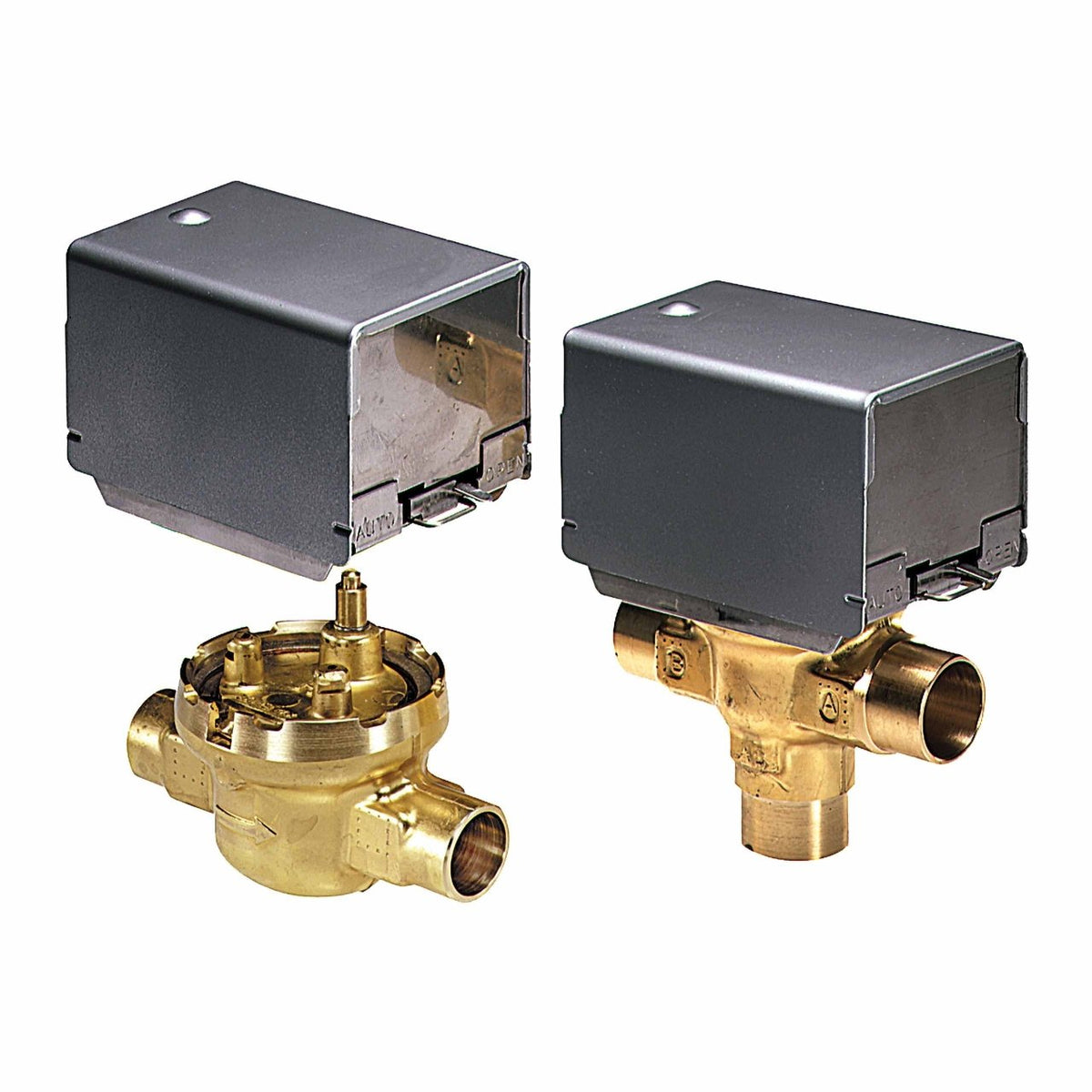

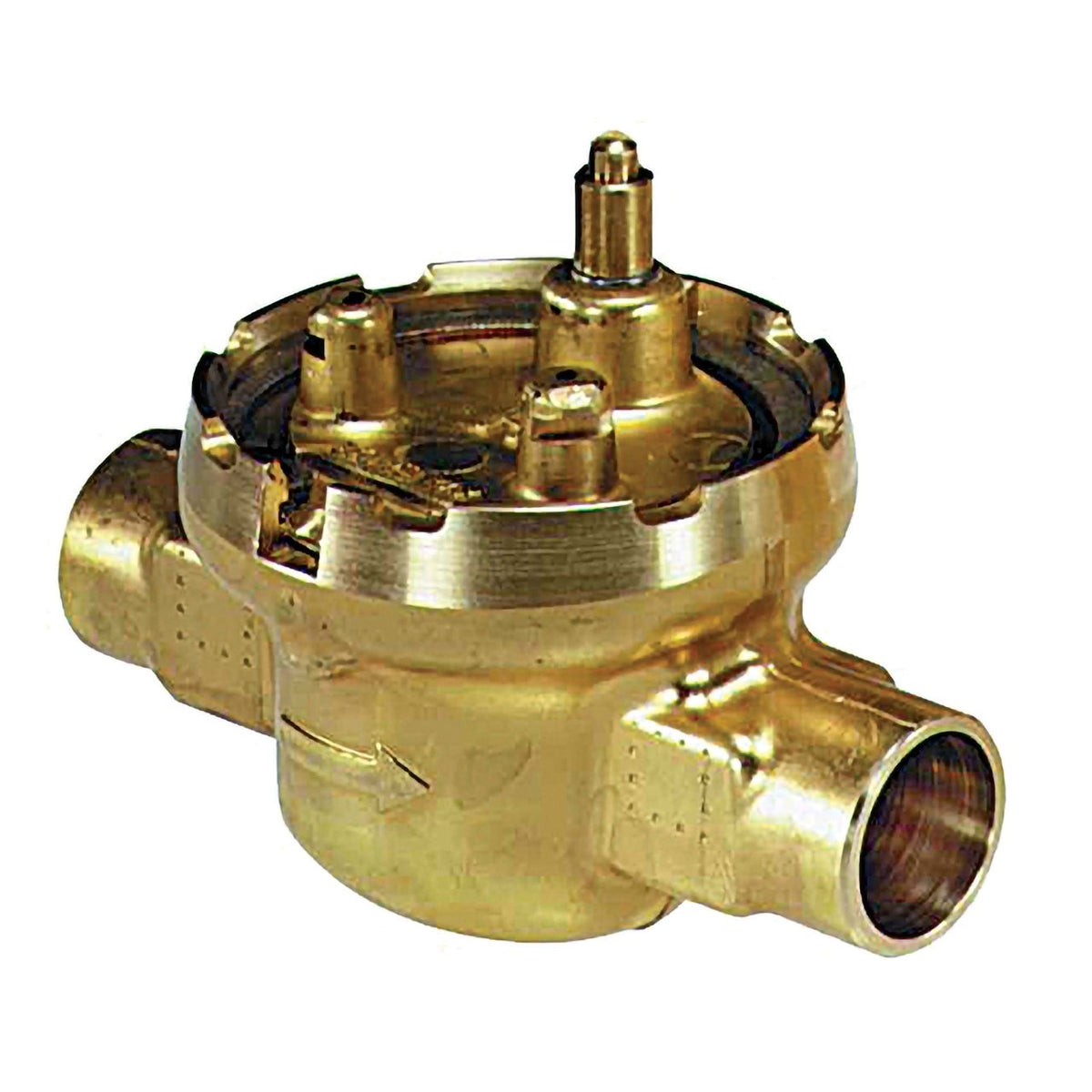

Two-way fan coil valve with 3/4 in sweat connection and 8.0 Cv.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VU53S2059/B
- Valve Ball Material: Buna-N (NBR) Rubber
- Valve Disc Material: Buna-N (NBR) Rubber
- Connection Type: Sweat
- Differential pressure for close-off (Max): 10 psi, 69 kPa
- Flow Coefficient: 8.0 Cv; 7.0 Kvs
- Media Temperature (Min): 34 °F at 200 °F Fluid, 1 °C at 94°C Fluid
- Media Temperature (Max): 125 °F at 200 °F Fluid, 52 °C at 94°C Fluid
- Operating Pressure (Max): 300 psi, 2000 kPA, PN20
- Valve Body Material: Brass
- Valve Body Pattern: Two-way, Straight Through
- Valve Flow Characteristic: Quick Opening
- Valve Seat Material: Brass
- Valve Start Position: Normally Closed
- Valve Stem Material: Brass
- UPC: 085267823999
- Country of Origin: HU
- Category: Fan Coil Zone Valves
